Cougar Forza 85 Essential CPU Air Cooler – 6 Heatpipes – 120mm PWM Fan – Intel/AMD Compatible—
$0.02
The Story

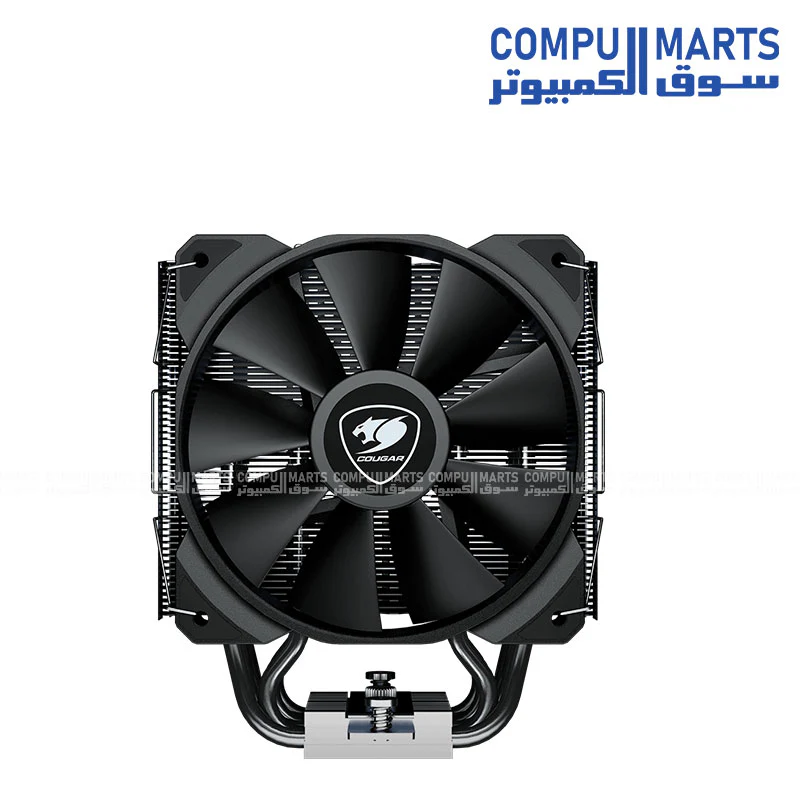

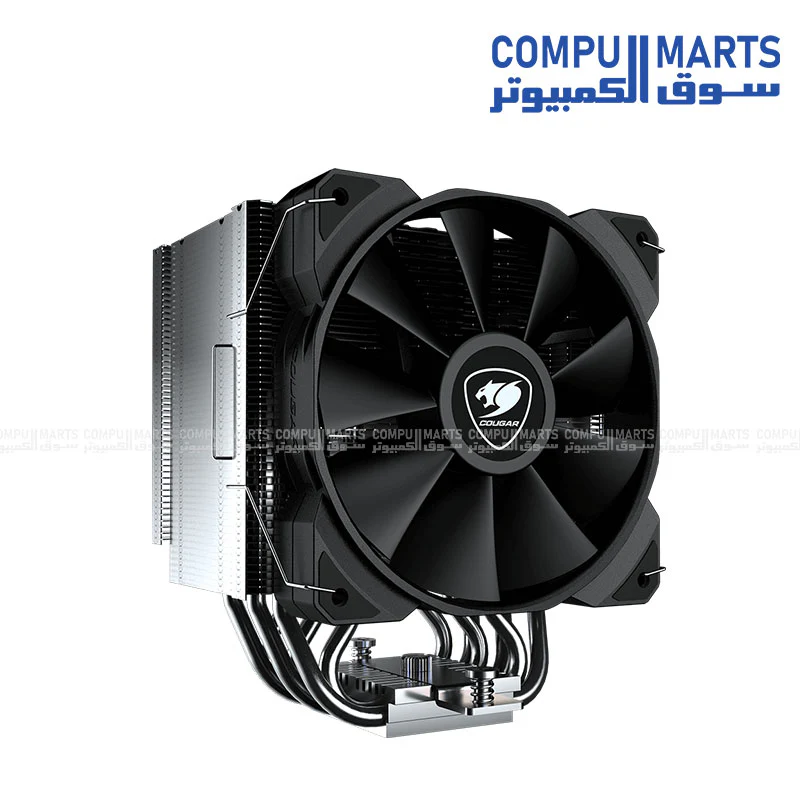

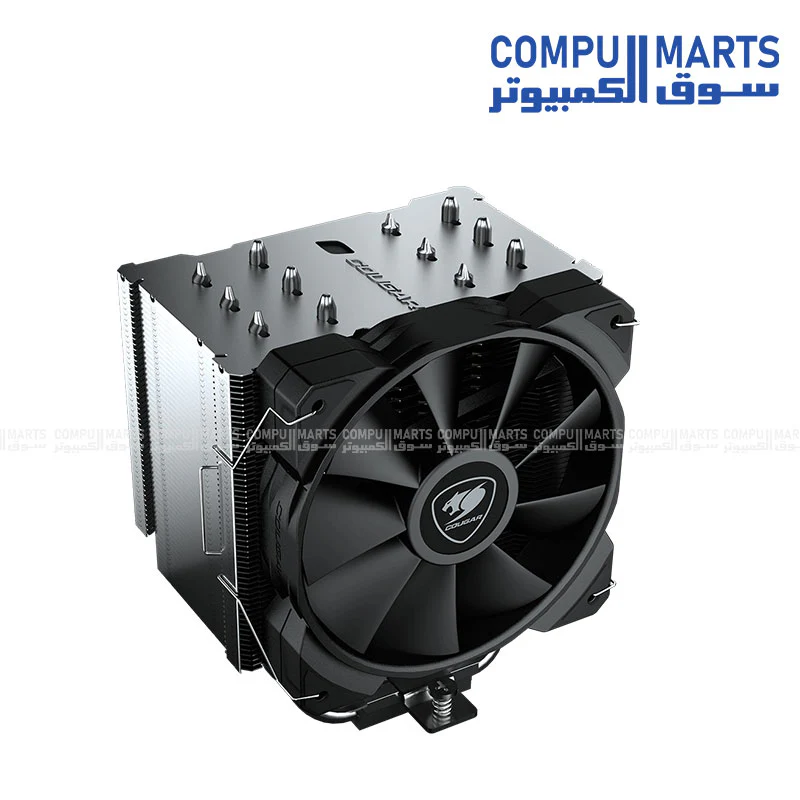

Cougar Forza 85 Essential CPU Air Cooler – 6 Heatpipes – 120mm PWM Fan – Intel/AMD Compatible
Specifications
| CPU Socket |
Intel: LGA 1851 / 1700 / 1200 / 2066 / 2011 / 115X / 1366 AMD: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1 |
|
| Heatsink | ||
| CPU touched base | Copper base with nickel plated | |
| Heat pipe diameter | 6 mm | |
| Heat pipe number | 6 units | |
| Heat pipe finish | Copper with nickel plated | |
| Craftsmanship | Reflow | |
| Dimension (WxDxH) | 85 x 135 x 160mm | |
| Weight | 926 g | |
| Weight Incl. Fan | 1128 g | |
| Fans | ||
| Fan Model | NHP120 | |
| Dimensions (WxDxH) | 120 x 120 x 25 mm | |
| Fan Speed | 600-2000 RPM±200RPM | |
| Air Flow | 82.48 CFM / 143.53 m3/h (± 10%) | |
| Air Pressure | 4.24 mm H2O±10% | |
| Acoustic Noise | 34.5 dB(A) (Max.) | |
| Rated Voltage | 12 VDC | |
| Rated Current | 0.28 A | |
| Power Consumption | 3.36 W ± 10% | |
| Bearing Type | Hydraulic Bearing | |
| Cable Length | 200 mm | |
| Connector & Control | 4 Pin PWM | |
Packing Data
Product Number (P/N) |
3MFZE85.0001 |
|
|---|---|---|
Model Number (M/N) |
CGR-FZAE85 |
|
EAN CODE |
4710483775048 |
|
UPC CODE |
192554005409 |
|
JAN CODE |
4541995037399 |
|
Individual Size W/O Packaging Weight (N.Weight) |
1133 (g) |
|
Individual Packaging Weight (G.Weight) |
1515 (g) |
|
Individual Size W/O Packaging (LxWxH) |
135 x 110 x 160 (mm) |
|
Individual Packaging Size (LxWxH) |
180 x 180 x 188 (mm) |
|
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Cougar Forza 85 Essential CPU Air Cooler – 6 Heatpipes – 120mm PWM Fan – Intel/AMD Compatible
Specifications
| CPU Socket |
Intel: LGA 1851 / 1700 / 1200 / 2066 / 2011 / 115X / 1366 AMD: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1 |
|
| Heatsink | ||
| CPU touched base | Copper base with nickel plated | |
| Heat pipe diameter | 6 mm | |
| Heat pipe number | 6 units | |
| Heat pipe finish | Copper with nickel plated | |
| Craftsmanship | Reflow | |
| Dimension (WxDxH) | 85 x 135 x 160mm | |
| Weight | 926 g | |
| Weight Incl. Fan | 1128 g | |
| Fans | ||
| Fan Model | NHP120 | |
| Dimensions (WxDxH) | 120 x 120 x 25 mm | |
| Fan Speed | 600-2000 RPM±200RPM | |
| Air Flow | 82.48 CFM / 143.53 m3/h (± 10%) | |
| Air Pressure | 4.24 mm H2O±10% | |
| Acoustic Noise | 34.5 dB(A) (Max.) | |
| Rated Voltage | 12 VDC | |
| Rated Current | 0.28 A | |
| Power Consumption | 3.36 W ± 10% | |
| Bearing Type | Hydraulic Bearing | |
| Cable Length | 200 mm | |
| Connector & Control | 4 Pin PWM | |
Packing Data
Product Number (P/N) |
3MFZE85.0001 |
|
|---|---|---|
Model Number (M/N) |
CGR-FZAE85 |
|
EAN CODE |
4710483775048 |
|
UPC CODE |
192554005409 |
|
JAN CODE |
4541995037399 |
|
Individual Size W/O Packaging Weight (N.Weight) |
1133 (g) |
|
Individual Packaging Weight (G.Weight) |
1515 (g) |
|
Individual Size W/O Packaging (LxWxH) |
135 x 110 x 160 (mm) |
|
Individual Packaging Size (LxWxH) |
180 x 180 x 188 (mm) |
|
