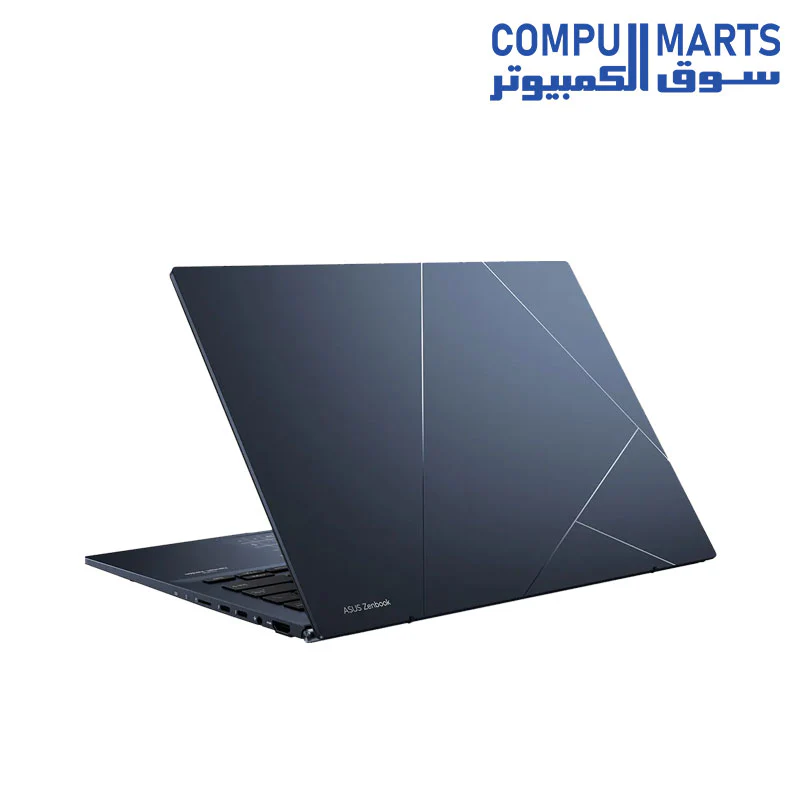

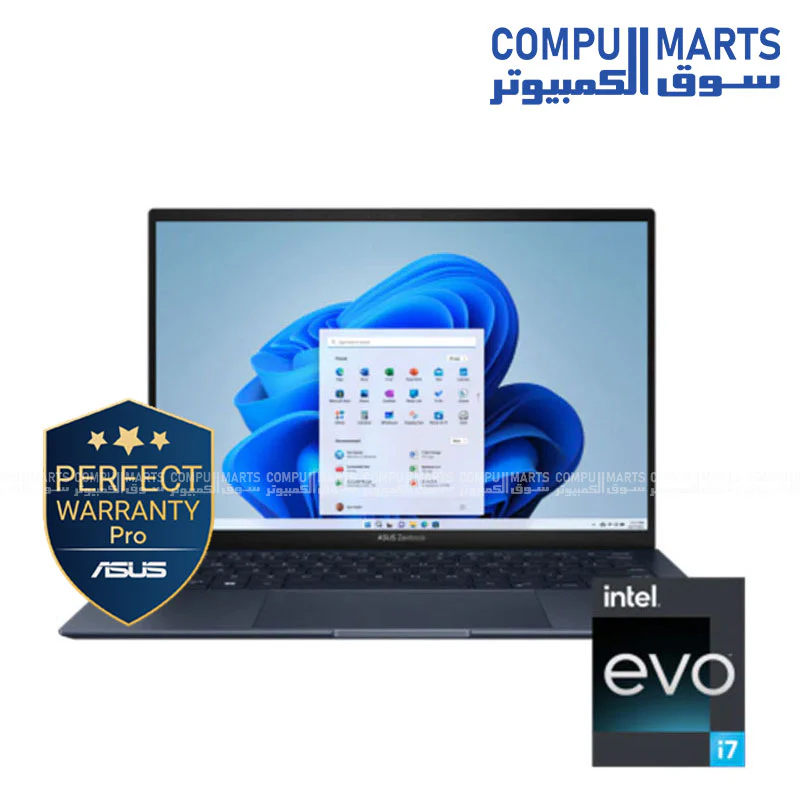

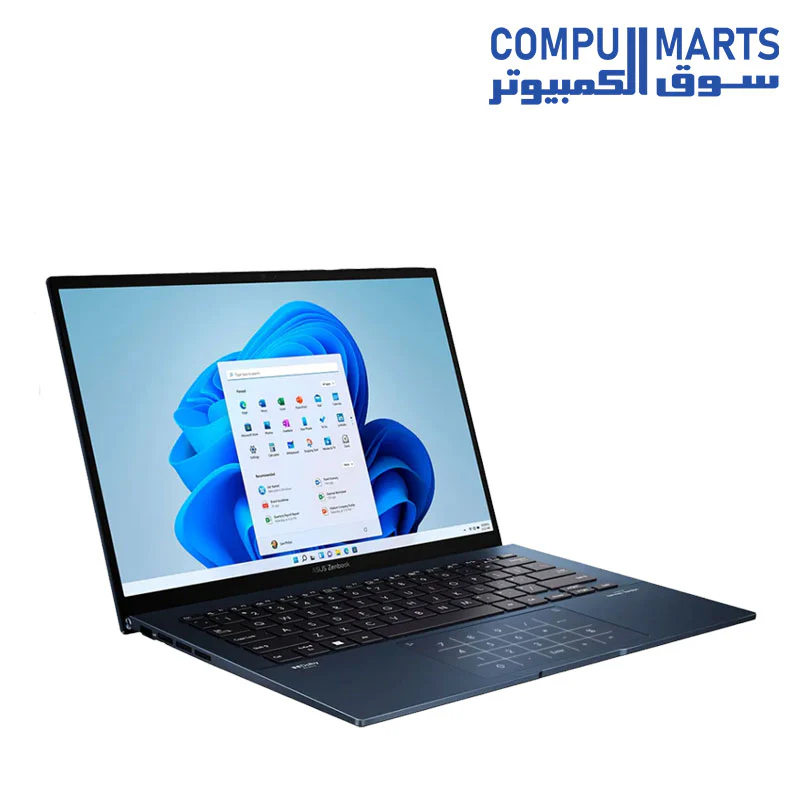

ASUS Zenbook S 13 OLED UX5304VA - Intel Core I7-1355U -RAM 16 GB-512GB M.2 NVMe PCIe- Intel Iris Xe Graphics-13.3-Inch-Windows 11

Part No

90NB0Z92-M00D50

Model Name

UX5304VA-OLED517W

TTV

2023-10-12

End of Production

2024-12-31

EAN Code

4711387177563

UPC Code

197105177567

WEEE

0.8

BASE UNIT

VSNB0Z92-BU1000

Marketing Name

ASUS Zenbook S 13 OLED

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business

LCD cover-material

Aluminum

LCD cover-color

Basalt Grey

Top case-material

Mg-Al

Top case-color

Basalt Grey

Keyboard color

Gray

Bottom case-material

Aluminum

Bottom case-color

Basalt Grey

Military grade

US MIL-STD 810H military-grade standard

Touch Panel

Non-touch screen

Panel Size

13.3-inch

Resolution

2.8K (2880 x 1800) OLED 16:10 aspect ratio

Response time

0.2ms response time

Refresh rate

60Hz refresh rate

Peak Brightness

550nits HDR peak brightness

Color gamut

100% DCI-P3 color gamut

Gamut mapping

Yes

Contrast ratio

1,000,000:1

VESA CERTIFIED Display HDR

VESA CERTIFIED Display HDR True Black 500

Color depth

1.07 billion colors

Pantone

PANTONE Validated

Glare

Glossy display

Low blue light

70% less harmful blue light

T?V Rheinland-certified

TÜV Rheinland-certified

SGS Eye Care Display

SGS Eye Care Display

Screen-to-body ratio

85 ％

Intel Athena Program

Intel Evo Platform

Processor

Intel Core i7-1355U Processor 1.7 GHz (12MB Cache, up to 5.0 GHz, 10 cores, 12 Threads)

Chipset

N/A

Discrete/Share

Share

Intergrated GPU

Intel Iris Xe Graphics

Disclaimer for Intel Iris Xe

*Intel Iris Xᵉ Graphics is only available in models with Intel Core i5/i7/i9 processors and dual-channel memory.

VRAM

N/A

How to upgrade memory

Not Available

Expansion Slot(includes used)

N/A

On board memory

16GB LPDDR5 on board

Total System Memory

LPDDR5 16GB

Storage

512GB M.2 NVMe PCIe 4.0 SSD

Front-facing camera

FHD camera with IR function to support Windows Hello

on board Wireless

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.)

Touchpad

Touchpad

FingerPrint

N/A

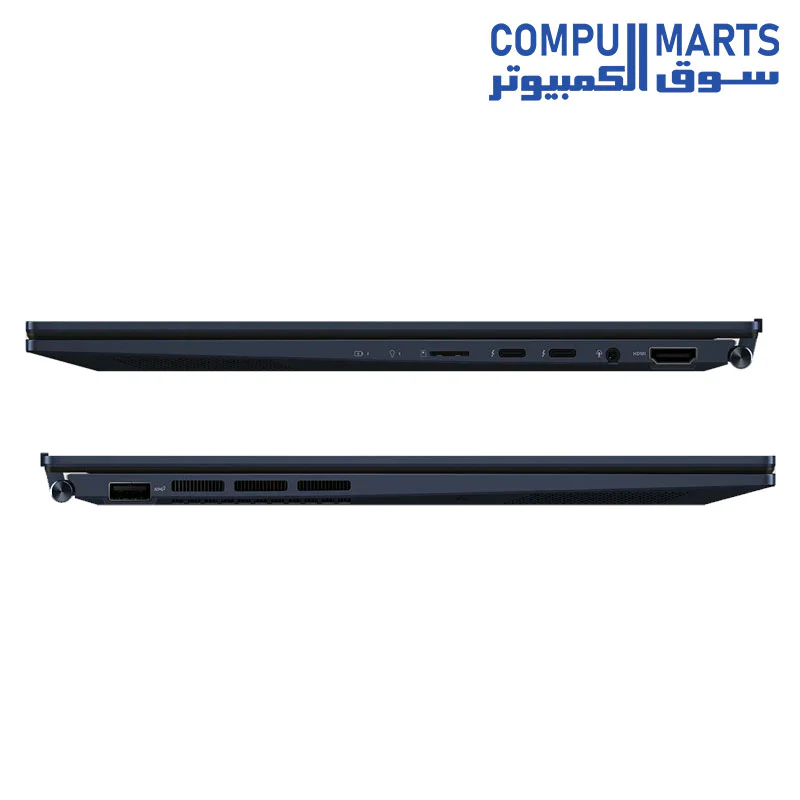

I/O ports

1x USB 3.2 Gen 2 Type-A

2x Thunderbolt™ 4 supports display / power delivery

1x HDMI 2.1 TMDS

1x 3.5mm Combo Audio Jack

Audio

Smart Amp Technology

Built-in speaker

Built-in array microphone

harman/kardon (Premium)

Voice control

with Cortana voice-recognition support

AC Adapter

TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100-240V AC 50/60GHz universal

Battery

63WHrs, 2S2P, 4-cell Li-ion

Replaceable Battery

No

Keyboard type

Backlit Chiclet Keyboard

Dimension (WxHxD)

29.62 x 21.63 x 1.09 ~ 1.18 cm (11.66" x 8.52" x 0.43" ~ 0.46")

Weight (with Battery)

1.00 kg (2.20 lbs)

Weight (without Battery)

0.80 kg (1.76 lbs)

Antivirus

McAfee® 30 days free trial

Security

McAfee® 30 days free trial

IR webcam with Windows Hello support

McAfee®

Trusted Platform Module (TPM) 2.0

MyASUS feature

System diagnosis

Battery health charging

Fan Profile

Splendid

Tru2Life

Function key lock

WiFi SmartConnect

Link to MyASUS

TaskFirst

Live update

ASUS OLED Care

AI Noise Canceling

Built-in Apps

MyASUS

ScreenXpert

GlideX

Adobe Creative Cloud Hard Bundle

Three-Month Membership of Adobe Creative Cloud All Apps, Individual.

The redemption duration from September 15, 2021 to August 31, 2024.

Included in the Box

Sleeve

Reparability Index (for France)

8.3
