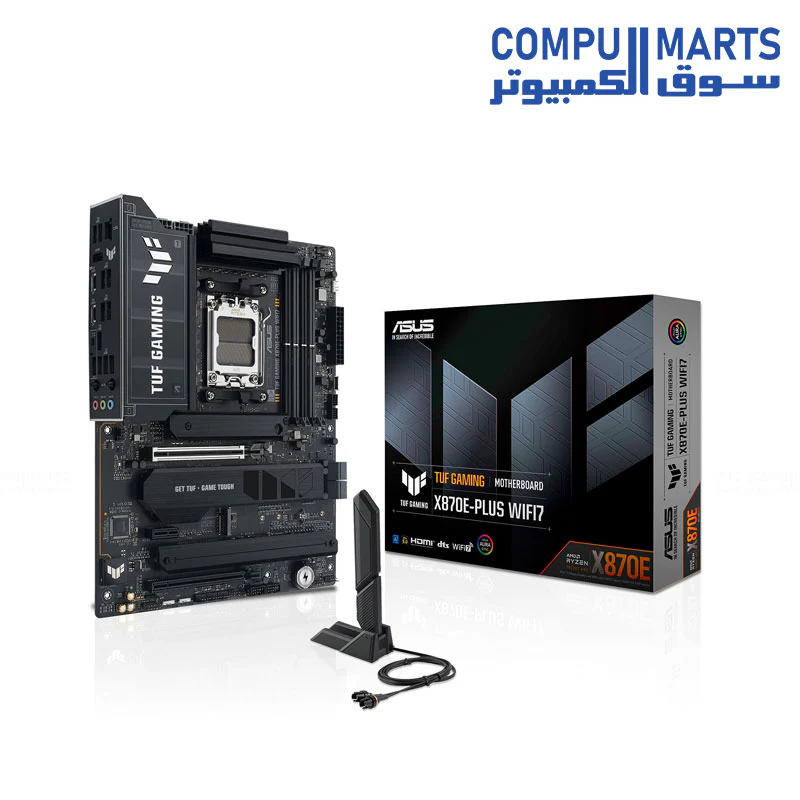

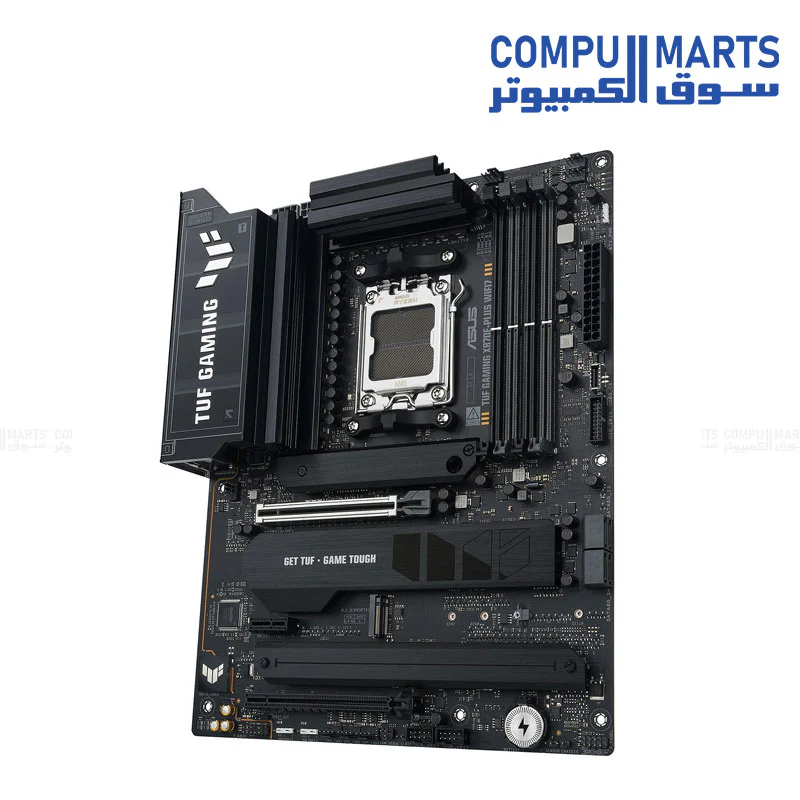

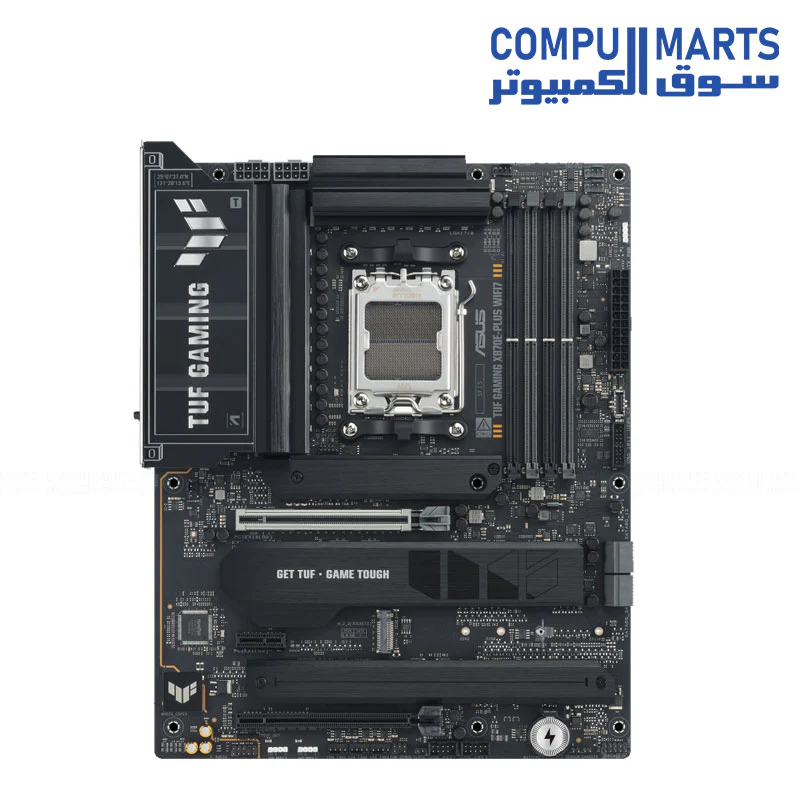

ASUS TUF GAMING X870E-PLUS WIFI 7 Motherboard AM5 DDR5- PCIe 5.0- USB 4.0- 2.5G LAN

ASUS TUF GAMING X870E-PLUS WIFI 7 Motherboard AM5 DDR5- PCIe 5.0- USB 4.0- 2.5G LAN

Model: TUF GAMING X870E-PLUS WIFI7

CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD X870E Chipset

Memory:

• 4 x DIMM slots, max. 256GB, DDR5

• Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors

• ECC and Non-ECC Un-buffered DIMM

• Dual channel memory architecture

• Supports AMD EXPO and ASUS AEMP

Graphics:

• 1 x HDMI port

• 2 x USB4 (40Gbps) ports support USB Type-C display outputs

Expansion Slots:

• Ryzen 9000 & 7000: 1 x PCIe 5.0 x16 slot

• Ryzen 8000: 1 x PCIe 4.0 x16 slot (x8/x4 mode)

• Chipset: 1 x PCIe 4.0 x16 slot (x4 mode), 1 x PCIe 3.0 x1 Slot

Storage:

• 4 x M.2 slots

• 4 x SATA 6Gb/s ports

• RAID support varies by CPU series

Ethernet:

• 1 x Realtek 2.5Gb Ethernet

• TUF LANGuard

Wireless & Bluetooth:

• Wi-Fi 7 (802.11be), 2x2, supports 2.4/5/6GHz bands

• Bluetooth v5.4

USB: Rear (13 ports):

• 2 x USB4 (Type-C)

• 3 x USB 10Gbps (Type-A)

• 4 x USB 5Gbps (Type-A)

• 4 x USB 2.0 (Type-A)

Front (7 ports):

• 1 x USB 20Gbps (Type-C, up to 30W PD)

• 1 x USB 5Gbps header (2 ports)

• 2 x USB 2.0 headers (4 ports)

Audio:

• Realtek ALC1220P 7.1 Surround Sound

• Impedance sensing, internal amp, jack detection

• 120 dB SNR playback, 113 dB SNR recording

• Audio shielding, premium caps, dedicated PCB layers, de-pop circuit

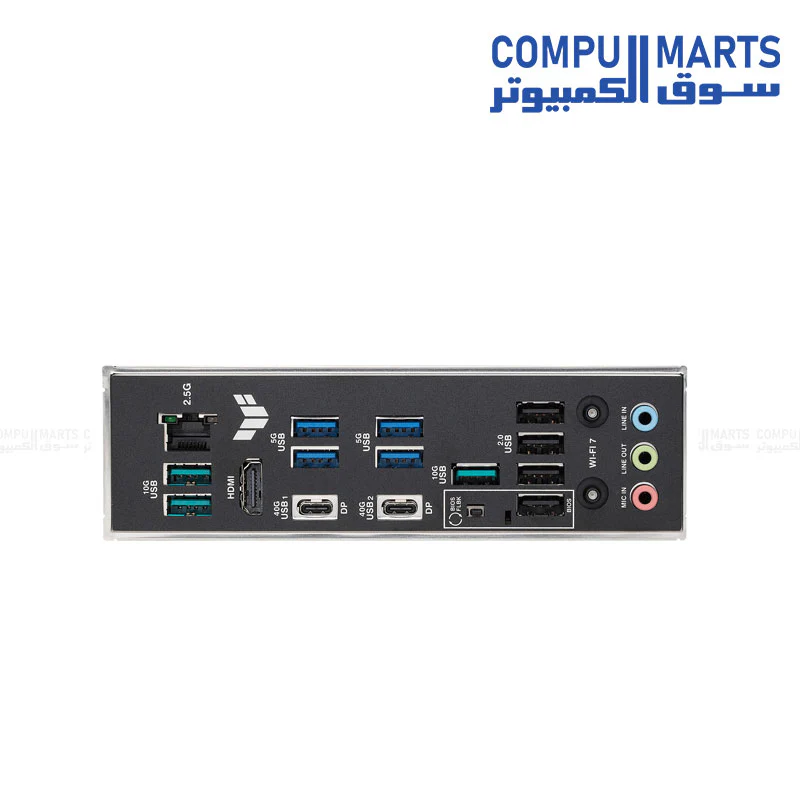

Back Panel I/O:

• 2 x USB4 (Type-C)

• 3 x USB 10Gbps (Type-A)

• 4 x USB 5Gbps (Type-A)

• 4 x USB 2.0 (Type-A)

• 1 x HDMI port

• 1 x Wi-Fi module

• 1 x Realtek LAN port

• 3 x audio jacks

• 1 x BIOS FlashBack button

Internal I/O Connectors: Cooling:

• 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fans Power:

• 1 x 24-pin ATX, 2 x 8-pin CPU Storage:

• 4 x M.2, 4 x SATA USB:

• 1 x USB 20Gbps (Type-C, up to 30W PD)

• 1 x USB 5Gbps header (2 ports)

• 2 x USB 2.0 headers (4 ports) Other:

• 3 x ARGB Gen 2 headers

• 1 x Clear CMOS

• 1 x Chassis Intrusion

• 1 x Front Audio

• 1 x Front Panel

• 1 x Thermal Sensor

Special Features:

• ASUS TUF Protection: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel I/O

• Q-Design: M.2 Q-Latch, Q-Release Slim, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot

• Thermal: M.2 heatsinks, VRM heatsink

• EZ DIY: BIOS FlashBack button/LED, ProCool, Pre-mounted I/O shield, SafeDIMM

• Aura Sync: ARGB Gen 2 headers

• Front Panel USB 20Gbps with PD Fast Charge (5V/9V/12V/15V up to 30W)

Software:

• Armoury Crate: Aura Creator, Aura Sync, Fan Xpert 4

• ASUS AI Advisor, DriverHub, GlideX, USB Wattage Watcher

• TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing

• Norton 360 (60 days trial), WinRAR (40 days trial)

UEFI BIOS:

• 256Mb Flash ROM, UEFI AMI BIOS

• AI Overclocking Guide

• ASUS CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey

Manageability:

• WOL by PME, PXE

Accessories:

• 2 x SATA cables

• 1 x WiFi Q-Antenna

• 2 x M.2 rubber packages

• 1 x M.2 screw package

• 1 x TUF GAMING sticker

• 1 x Quick start guide

Operating System:

• Windows 11

Form Factor:

• ATX (30.5 x 24.4 c)m
