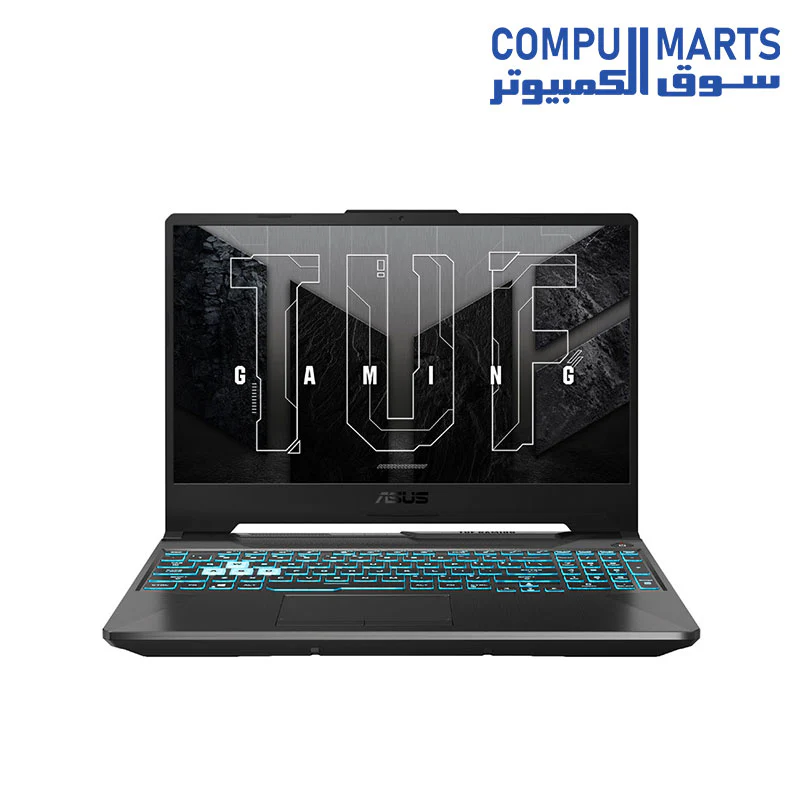

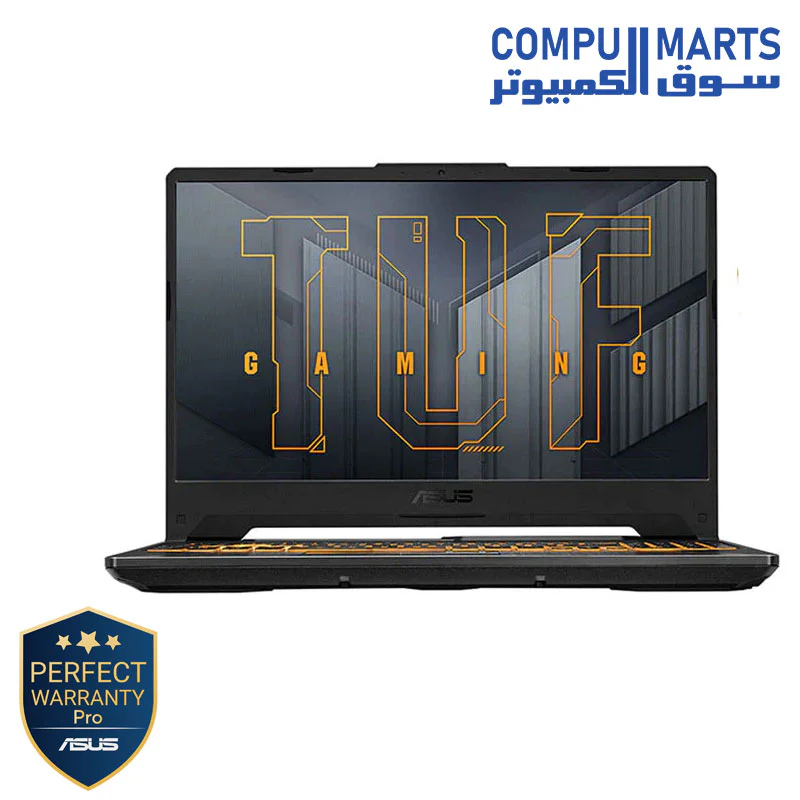

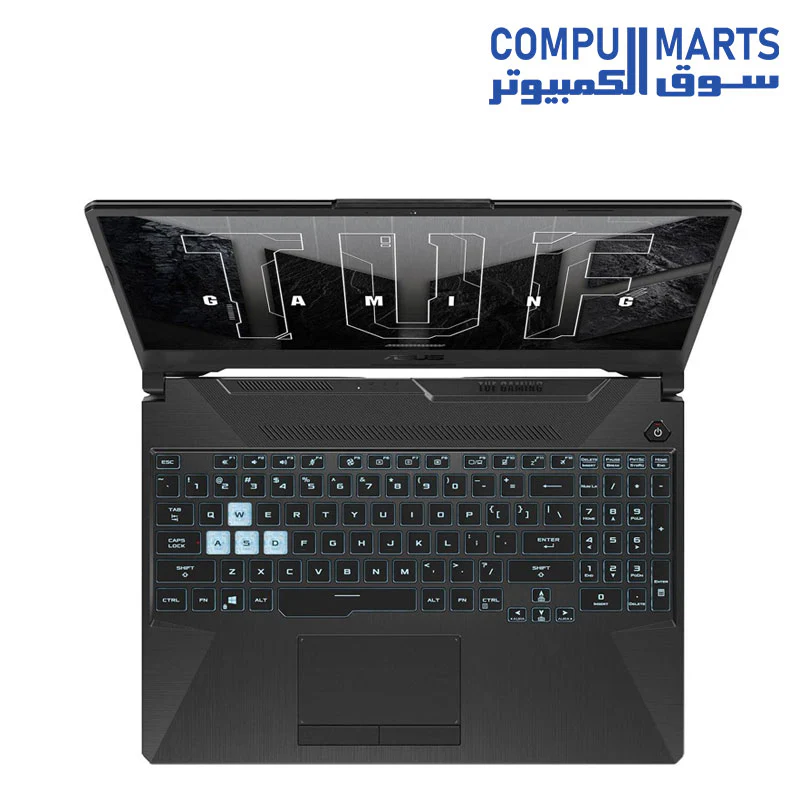

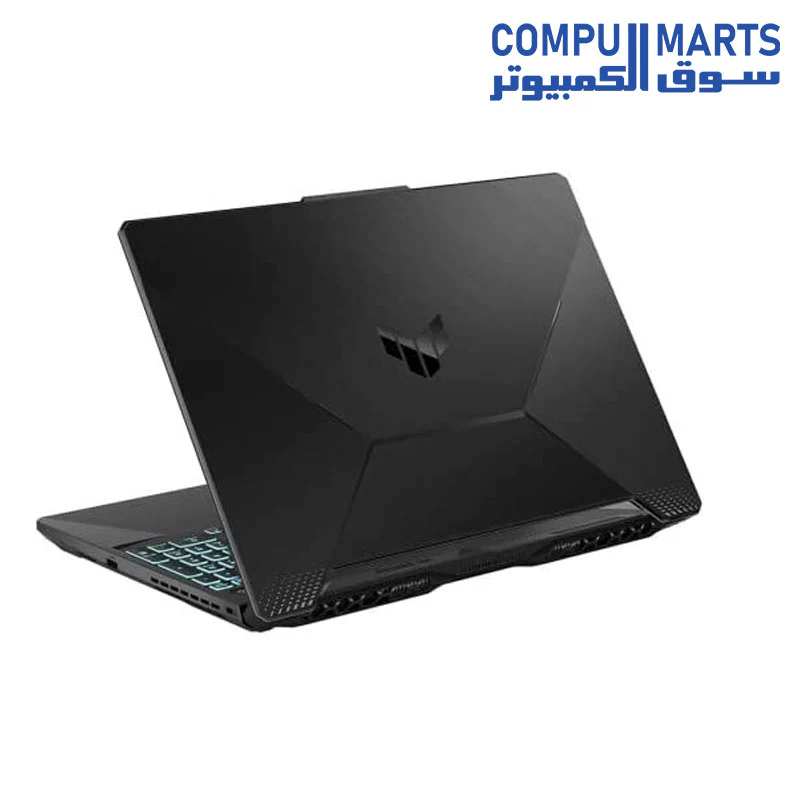

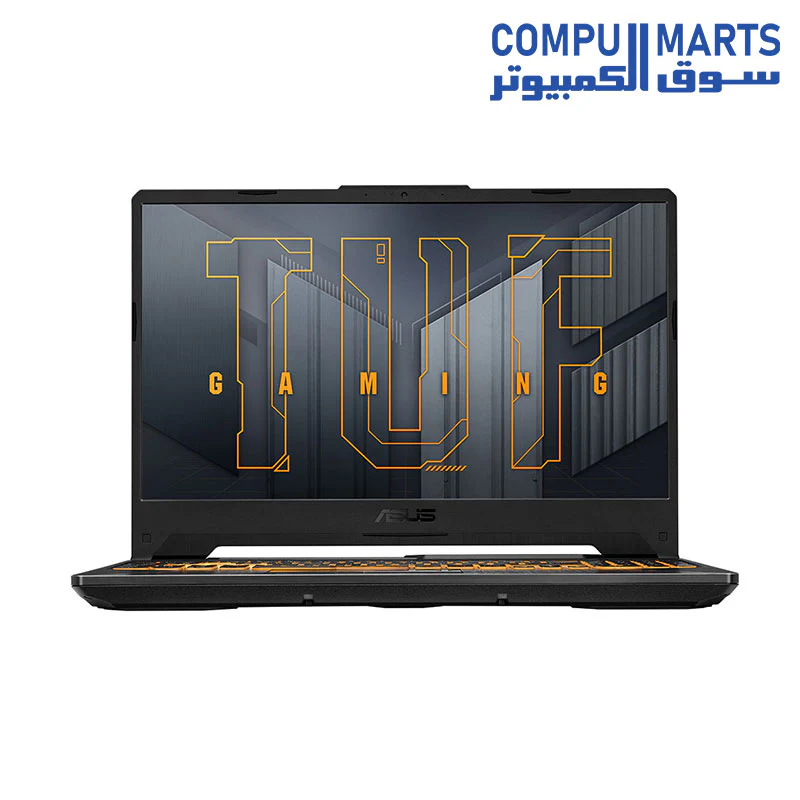

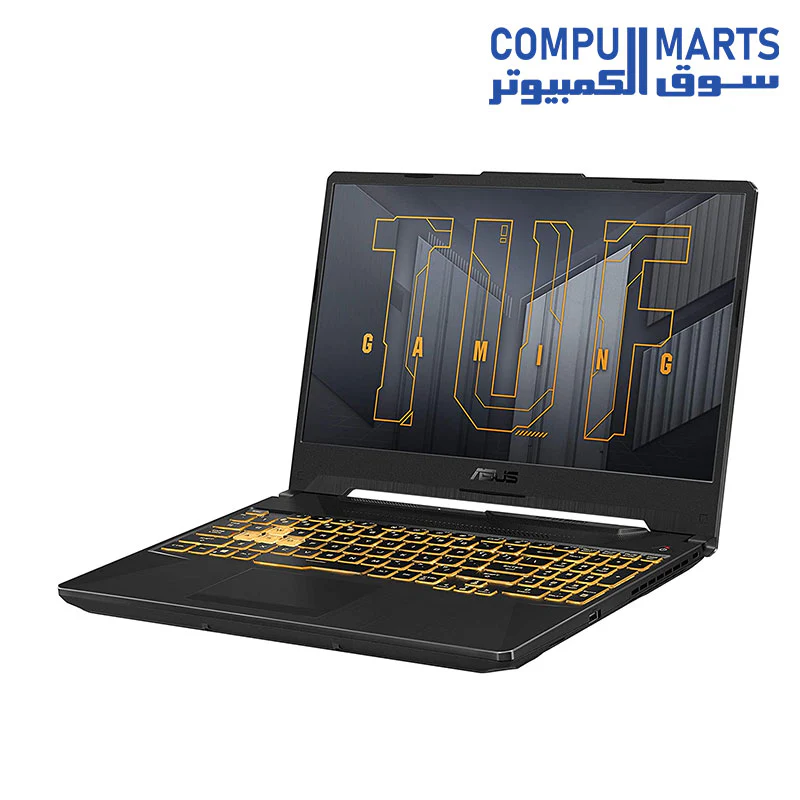

ASUS TUF Gaming F15 FX506HF-HN001W i5 11400H Ram 8GB Hard 512 GB SSD GPU Nvidia Geforce RTX 2050 4GB Display 15.6" FHD 144Hz OS Win 11 Black

Part No

90NR0HB4-M001D0

Model Name

FX506HF-HN001W

EAN Code

4711387075159

UPC Code

197105075153

Marketing Name

ASUS TUF Gaming F15

Color

Graphite Black

Dimension (W x D x H)

35.9 x 25.6 x 2.28 ~ 2.45 cm (14.13" x 10.08" x 0.90" ~ 0.96")

Weight

2.30 Kg (5.07 lbs)

Processor

Intel Core i5-11400H Processor 2.7 GHz (12M Cache, up to 4.5 GHz, 6 Cores)

Chipset

Mobile Intel HM570 Express Chipsets

Discrete/Optimus

Optimus

Graphic

NVIDIA GeForce RTX 2050 Laptop GPU

Graphic Wattage

Up to 1625MHz at 55W (TGP 70W with Dynamic Boost) Vary by scenario

Graphic Memory

4GB GDDR6

IGPU

Intel UHD Graphics

Panel Size

15.6-inch

Resolution

FHD (1920 x 1080) 16:9

Refresh Rate

144Hz

Viewing Angle

85/85/85/85

Panel Tech

Value IPS-level

Brightness

250nits

Contrast

1000:1

NTSC %

45%

SRGB %

62.5%

Adobe %

47.34%

DCI-P3 %

N/A

Anti glare

Anti-glare display

Adaptive-Sync technology

Adaptive-Sync

Pantone

N/A

Support Dolby Vision HDR

N/A

On board memory

N/A

DIMM Memory

8GB DDR4-3200 SO-DIMM

Total System Memory

DDR4 8GB

Memory Slot

2x SO-DIMM slots

Memory Max.

32GB

How to upgrade memory

Upgradable

System Storage Installed

512GB PCIe 3.0 NVMe M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

M.2 512GB G3x4 PCIe SSD

M.2 1TB G3x4 PCIe SSD

Expansion Slot (includes used)

2x DDR4 SO-DIMM slots

2x PCIe

LAN

10/100/1000 Mbps

Wi-Fi/Bluetooth

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.)

I/O Ports

1x RJ45 LAN port

1x Thunderbolt 4 support DisplayPort

3x USB 3.2 Gen 1 Type-A

Display output

1x HDMI 2.1 TMDS

Audio

1x 3.5mm Combo Audio Jack

Webcam

720P HD camera

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard 1-Zone RGB

NumberPad

N/A

Aura Sync

N/A

Speakers

2-speaker system

Audio Tech

AI noise-canceling technology

DTS software

Support Microsoft Cortana near field/Far field

Operating System

Windows 11 Home

Antivirus

MCAFEE_30D

Xbox Game Pass

Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Security

BIOS Administrator Password and User Password Protection

Kensington Nano Security Slot

Trusted Platform Module (Firmware TPM)

Battery

48WHrs, 3S1P, 3-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

ø6.0, 150W AC Adapter, Output: 20V DC, 7.5A, 150W, Input: 100~240V AC, 50/60Hz universal

Reparability Index (for FR)

8.6
