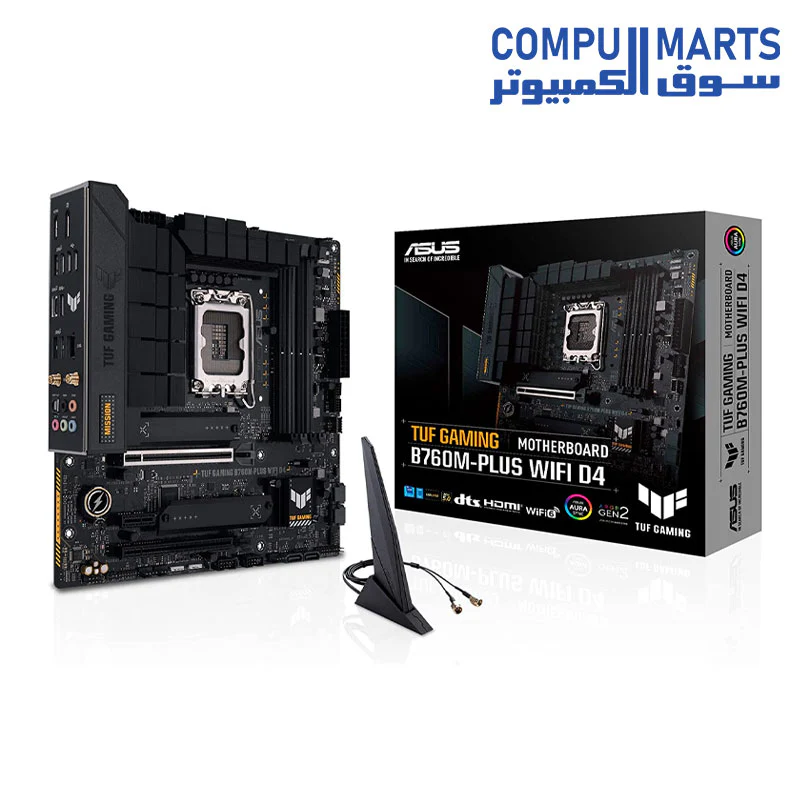

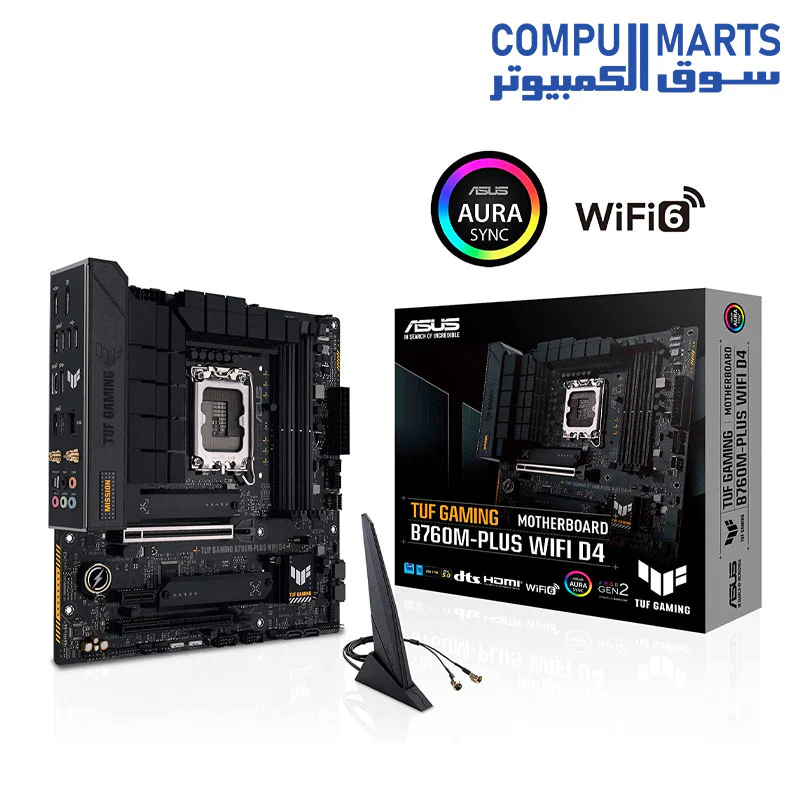

ASUS TUF GAMING B760M-PLUS WIFI D4

ASUS TUF GAMING B760M-PLUS WIFI D4 Intel(13th and 12th Gen)LGA 1700 mATX motherboard,PCIe 5.0,2xPCIe 4.0 M.2 slots,DDR4

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

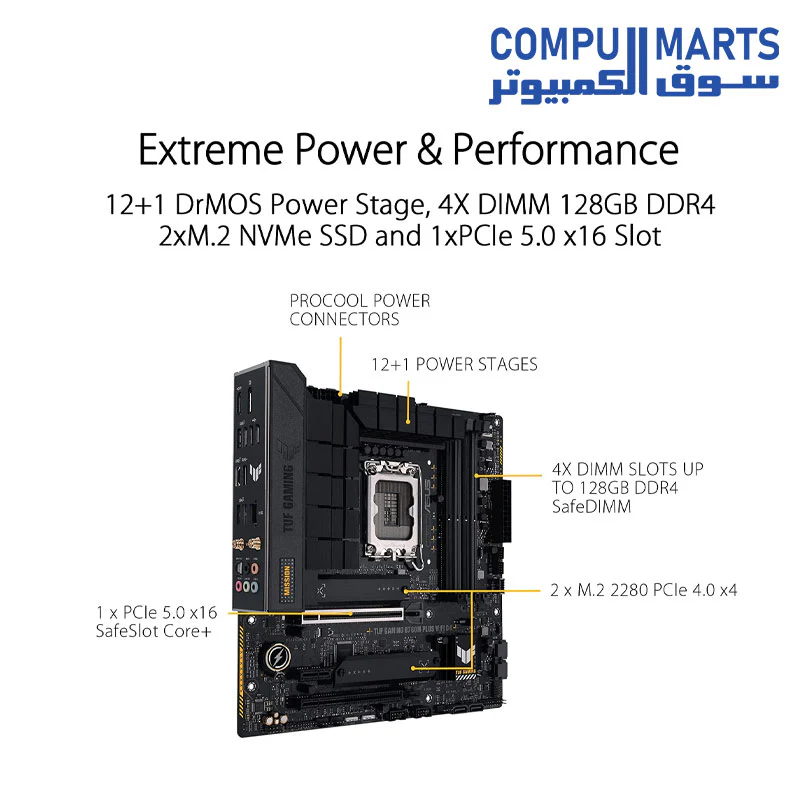

• Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability

• Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4

• Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt (USB4) header support

• Made for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard

• Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

• Model

• TUF GAMING B760M-PLUS D4

• CPU

• Intel Socket LGA1700 for 13 Gen Intel Core & 12 Gen Intel Core, Pentium Gold and Celeron Processors

• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

• DDRefer to www.asus.com for CPU support list.

•  Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel B760 Chipset

• Memory

• 4 x DIMM, Max. 128GB, DDR4  5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

• Dual Channel Memory Architecture

• Supports Intel Extreme Memory Profile (XMP)

• OptiMem II

•  Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under

• Graphics

• 1 x DisplayPort

• 1 x HDMI port

• Expansion Slots

• Intel 13 & 12 Gen Processors

• 1 x PCIe 5.0 x16 slot

• Intel B760 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 4.0 x1 slot

• Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

• Intel 13 & 12 Gen Processors

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• Intel B760 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

•  Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet

• TUF LANGuard

• USB

• Rear USB (Total 8 ports)

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

• 4 x USB 3.2 Gen 2 ports (4 x Type-A)

• 1 x USB 3.2 Gen 1 port (1 x Type-A)

• 2 x USB 2.0 ports (2 x Type-A)

• Front USB (Total 7 ports)

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C)

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Rear optical S/PDIF out port

• - Premium audio capacitors

• - Dedicated audio PCB layers

• Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

• 4 x USB 3.2 Gen 2 ports (4 x Type-A)

• 1 x USB 3.2 Gen 1 port (1 x Type-A)

• 2 x USB 2.0 ports (2 x Type-A)

• 1 x DisplayPort

• 1 x HDMI port

• 1 x Wi-Fi Module

• 1 x Realtek 2.5Gb Ethernet port

• 5 x Audio jacks

• 1 x Optical S/PDIF out port

• Internal I/O Connectors

• I/O Connectors  Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 3 x 4-pin Chassis Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

• 1 x 4-pin +12V Power connector

• Storage related

• 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C)

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Miscellaneous

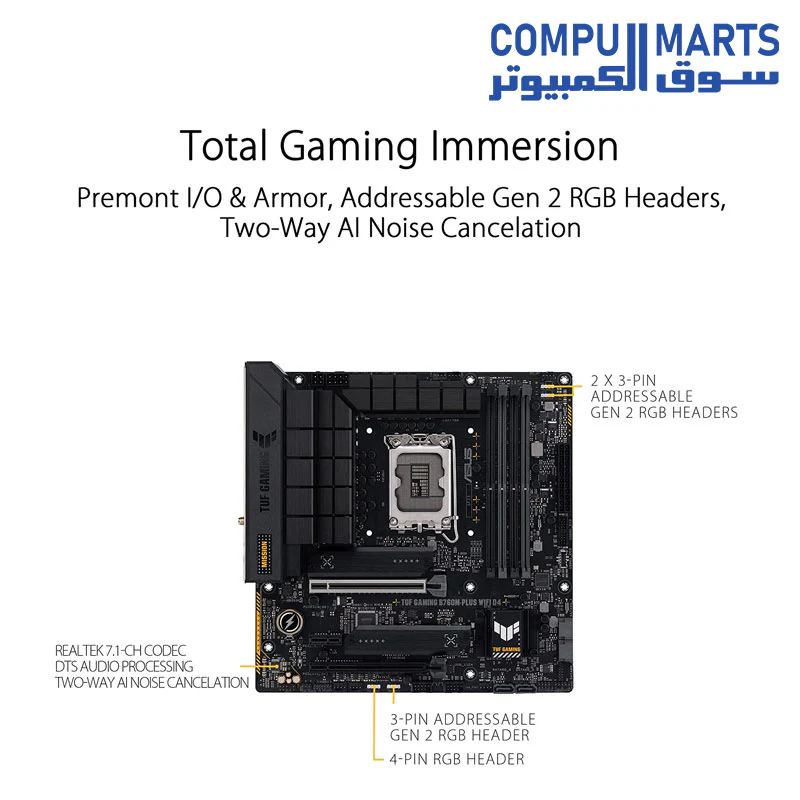

• 3 x Addressable Gen 2 headers

• 1 x AURA RGB header

• 1 x Clear CMOS header

• 1 x Front Panel Audio header (AAFP)

• 1 x 20-3 pin System Panel header with Chassis intrude function

• 1 x Thunderbolt (USB4) header

• Special Features

• ASUS TUF PROTECTION

• - DIGI+ VRM (- Digital power design with DrMOS)

• - ESD Guards

• - TUF LANGuard

• - Overvoltage Protection

• - SafeSlot Core+

• - Stainless-Steel Back I/O

• ASUS Q-Design

• - M.2 Q-Latch

• - Q-DIMM

• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• - Q-Slot

• ASUS Thermal Solution

• - M.2 heatsink

• - VRM heatsink design

• ASUS EZ DIY

• - CPU Socket lever protector

• - ProCool

• - Pre-mounted I/O shield

• - SafeDIMM

• AURA Sync

• - AURA RGB header

• - Addressable Gen 2 headers

• Software Features

• ASUS Exclusive Software

• Armoury Crate

• - AURA Creator

• - AURA Sync

• - Fan Xpert 2+

• - Power Saving

• - Two-Way AI Noise Cancelation

• AI Suite 3

•   DIGI+ VRM

• - PC Cleaner

• TUF GAMING CPU-Z

• DTS Audio Processing

• Norton 360 for Gamers

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

• BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x M.2 Rubber Package

• 1 x Screw package for M.2 SSD

• 1 x TUF Gaming sticker

• Documentation

• 1 x TUF Certification card

• 1 x User guide

• Operating System

• Windows 11, Windows 10 64-bit

• Form Factor

• mATX Form Factor

• 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
