ASUS TUF GAMING B760M-BTF WIFI D4 Motherboard Micro ATX Socket 1700 Intel B760 Express - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6 AX/Bluetooth 5.2

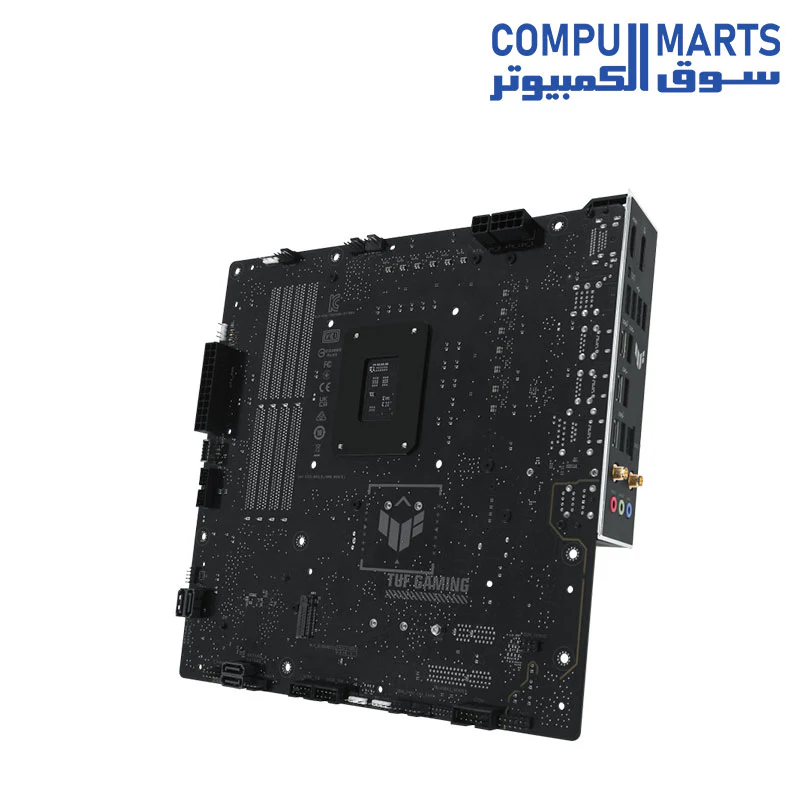

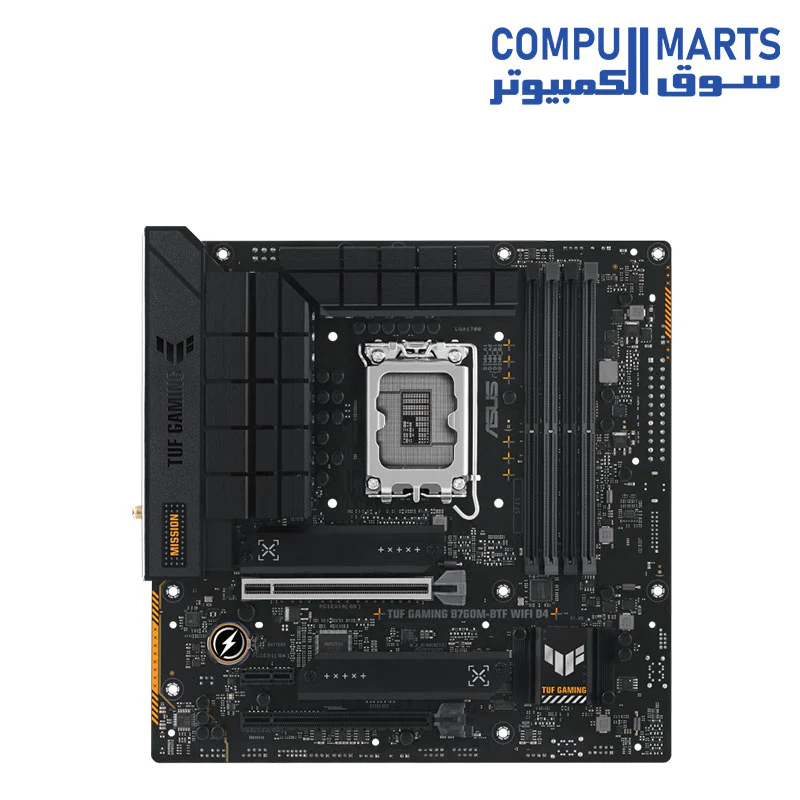

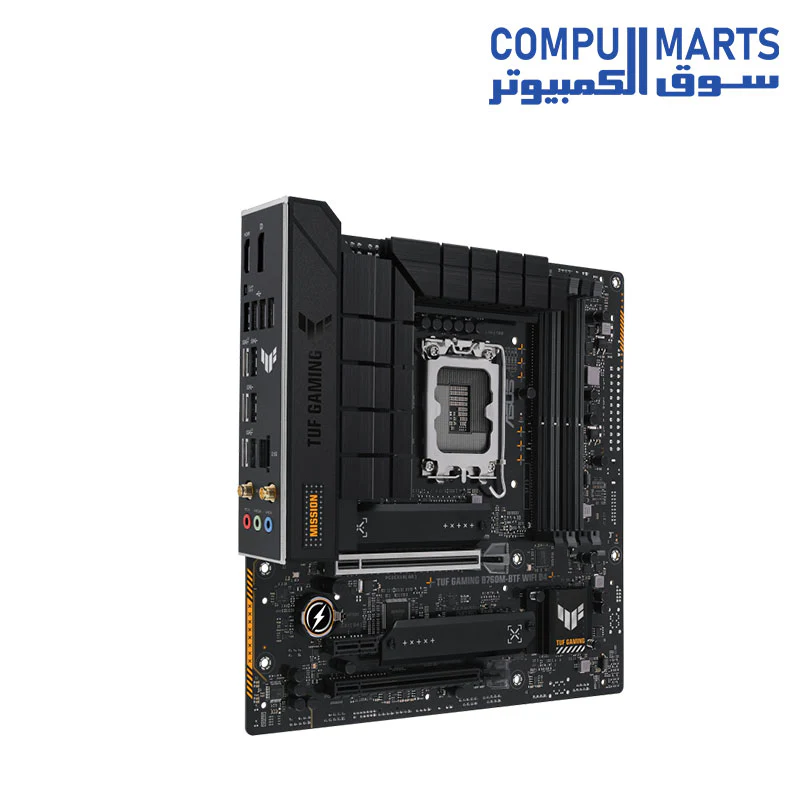

ASUS TUF GAMING B760M-BTF WIFI D4 Motherboard

• Model : TUF GAMING B760M-BTF WIFI D4

• CPU

• Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors

• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

•  Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel B760 Chipset

• Memory

• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

• Dual Channel Memory Architecture

• Supports Intel Extreme Memory Profile (XMP)

• OptiMem II

• Graphics

• 1 x DisplayPor

• 1 x HDMI port

•  Supports max. 4K 60Hz as specified in DisplayPort 1.4.

•  Supports 4K 60Hz as specified in HDMI 2.1.

• Expansion Slots

• Intel 13th & 12th Gen Processors

• 1 x PCIe 5.0 x16 slot

• Intel B760 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 4.0 x1 slot

• Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

• Intel 13th & 12th Gen Processors

• M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)

• Intel B760 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

•  Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

•  M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet

• Wireless & Bluetooth

• Wi-Fi 6

• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

• Supports 2.4/5GHz frequency band

• Bluetooth v5.2

• *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 10 ports)

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)

• 3 x USB 3.2 Gen 1 ports (2 x Type-A + 1 x USB Type-C)

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 7 ports)

• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)

• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

•  U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.

•  USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

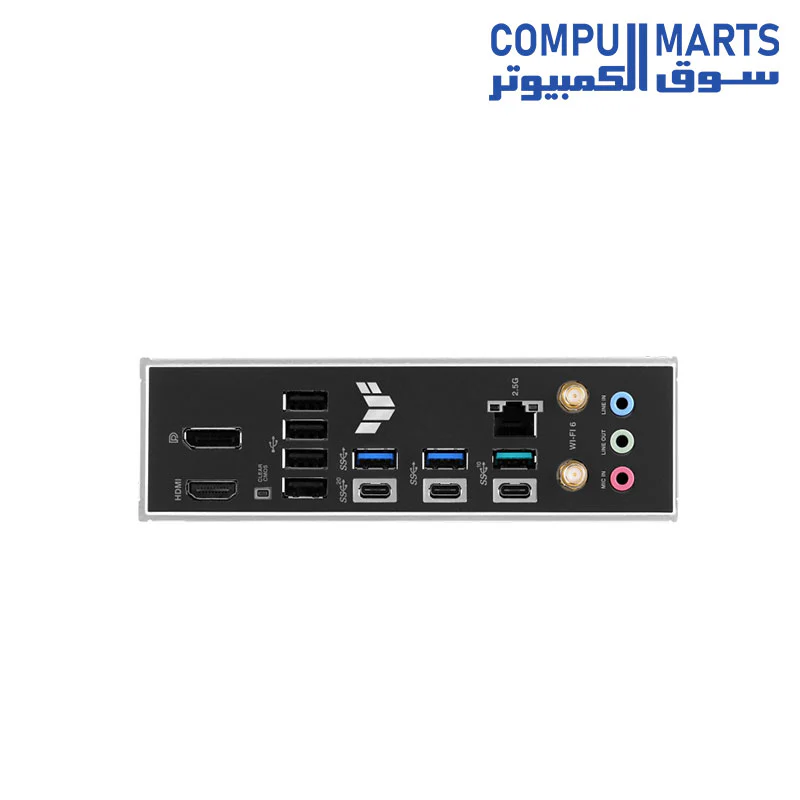

• Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

• 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x USB Type-C)

• 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 1 x HDMI port

• 1 x Wi-Fi Module

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x Clear CMOS button

• Internal I/O Connectors

• Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 3 x 4-pin Chassis Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

• 1 x 4-pin +12V Power connector

• Storage related

• 3 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 3.2 Gen 2 connector (supports USB Type-C )

• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable Gen 2 headers

• 1 x Aura RGB header

• 1 x COM Port header

• 1 x Front Panel Audio header (AAFP)

• 1 x 10-1 pin System Panel header

• 1 x Thunderbolt (USB4) header

• Special Features

• ASUS TUF PROTECTION

• - DIGI+ VRM (- Digital power design with DrMOS)

• - ESD Guards

• - TUF LANGuard

• - Overvoltage Protection

• - SafeSlot Core+

• - Stainless-Steel Back I/O

• ASUS Q-Design

• - M.2 Q-Latch

• - Q-DIMM

• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• - Q-Slot

• ASUS Thermal Solution

• - M.2 heatsinks

• - VRM heatsink design

• ASUS EZ DIY

• - Clear CMOS button

• - CPU Socket lever protector

• - ProCool

• - Pre-mounted I/O shield

• - SafeDIMM

• Aura Sync

• - Aura RGB header

• - Addressable Gen 2 headers

• Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - FAN Xpert 2+

• - Power Saving

• - Two-Way AI Noise Cancellation

• AI Suite 3

• - DIGI+ VRM

• - PC Cleaner

• TUF GAMING CPU-Z

• DTS Audio Processing

• MyASUS

• Norton 360 for Gamers (60 Days Free Trial)

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

• BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS Wi-Fi moving antenna

• 1 x TUF Gaming sticker

• 1 x M.2 Rubber Package

• 1 x Screw package for M.2 SSD

• Documentation

• 1 x User guide

• Operating System

• Windows 11, Windows 10 64-bit

• Form Factor

• micro-ATX Form Factor

• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
