$196.59

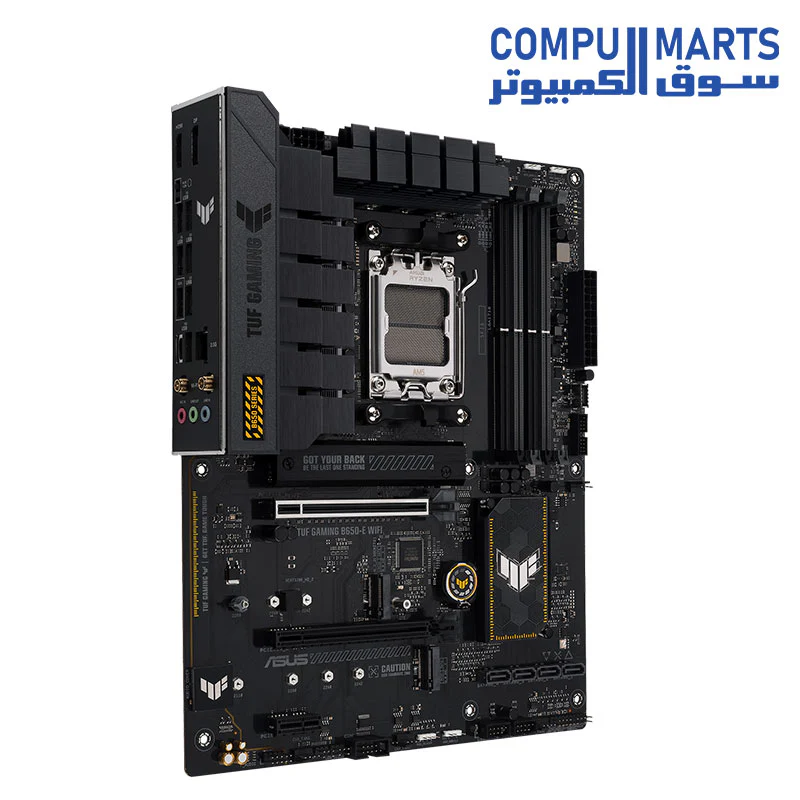

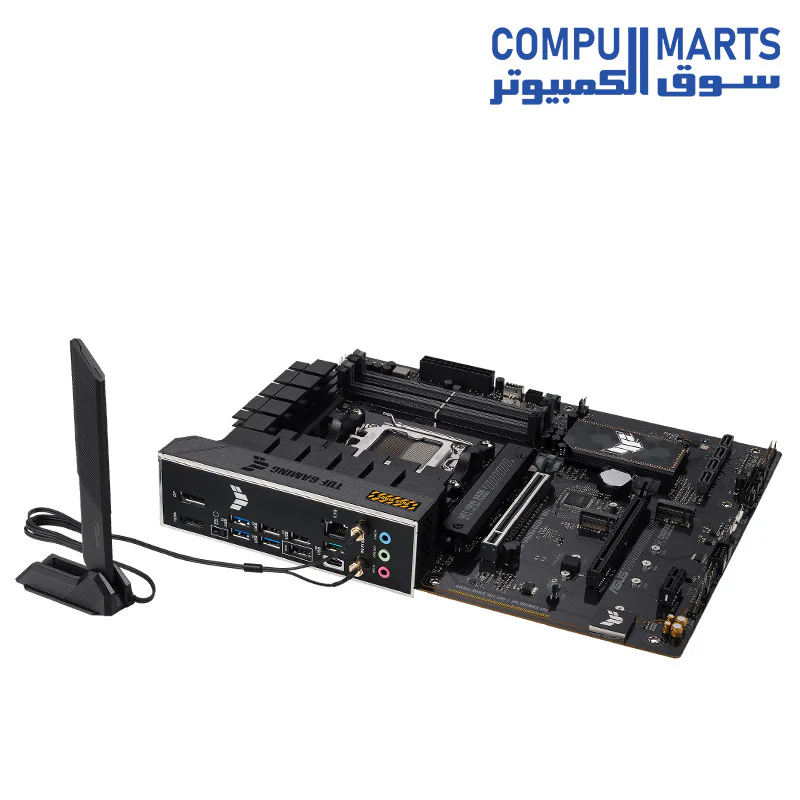

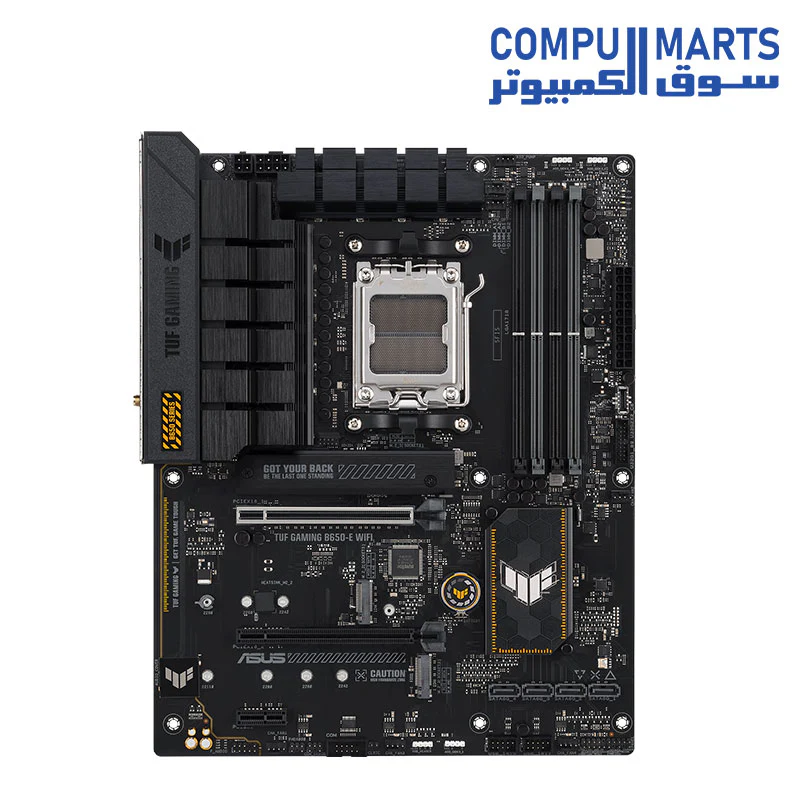

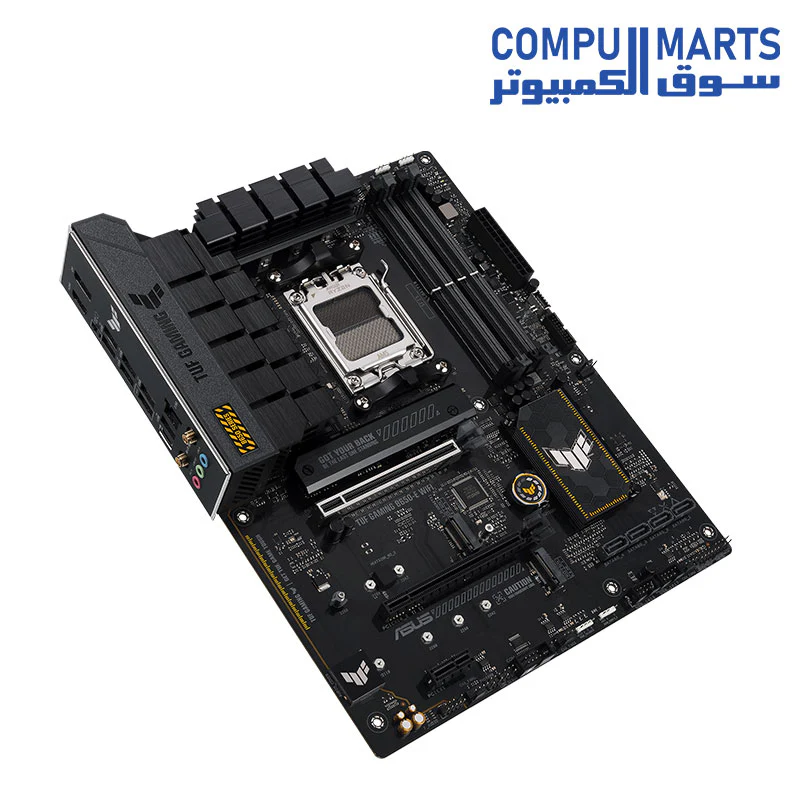

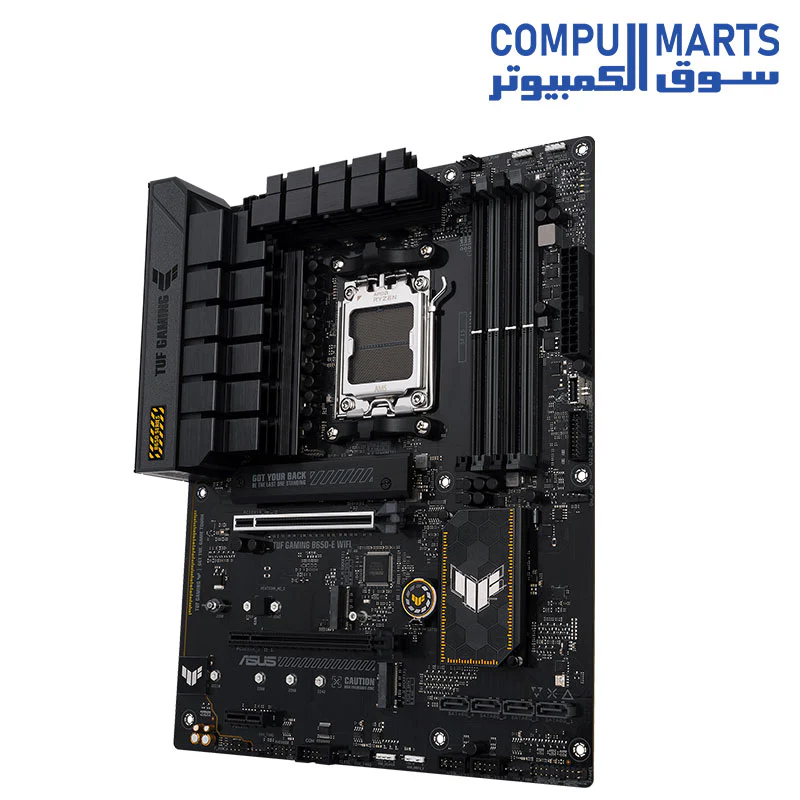

ASUS TUF GAMING B650-E WIFI ,DDR5 ,AMD Ryzen 7000/8000G—
$196.59
The Story
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING B650-E WIFI |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 8000+(OC) to 4800, ECC/Non-ECC, AMD EXPO™ & OptiMem II |
| Graphics | 1 x DisplayPort (8K@60Hz), 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 (x16 mode), 1 x PCIe 4.0/3.0 x16 (x1 mode), 1 x PCIe 4.0/3.0 x1 |
| Storage | 3 x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) + 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wireless & BT | Wi-Fi 6E (2.4/5/6GHz), Bluetooth® v5.3 |

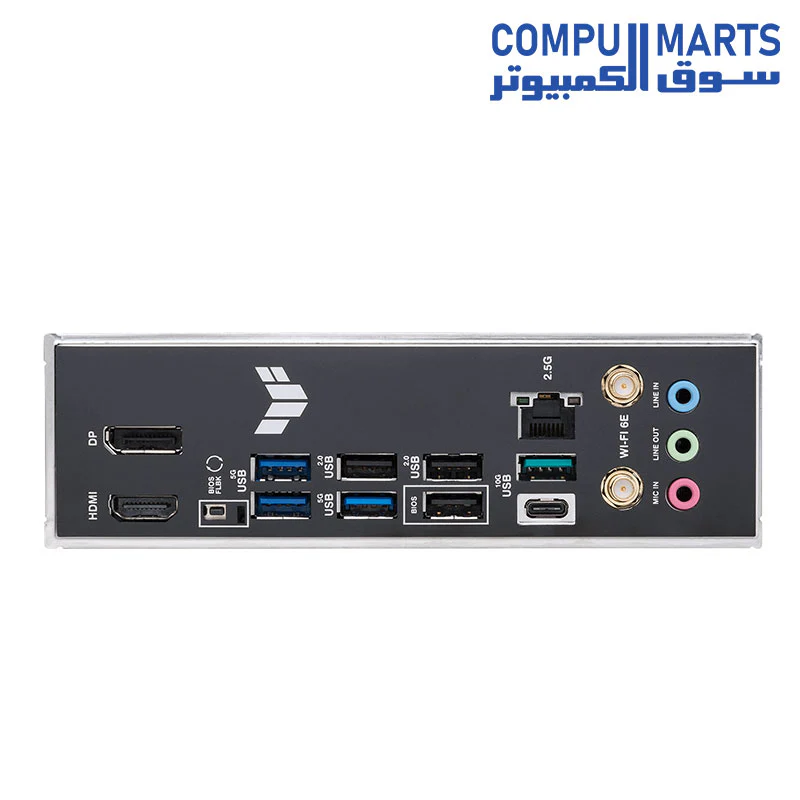

| Rear USB | 2 x USB 10Gbps (1 Type-A + 1 Type-C), 3 x USB 5Gbps, 3 x USB 2.0 |
| Front USB | 1 x USB 20Gbps (Type-C), 2 x USB 5Gbps (via header), 4 x USB 2.0 (via headers) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, 24-Bit/192 kHz playback |
| Special Features | TUF Protection (Digi+ VRM, ESD Guards), ASUS Q-Design (M.2 Q-Latch, Q-LED), BIOS FlashBack™ |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING B650-E WIFI |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 8000+(OC) to 4800, ECC/Non-ECC, AMD EXPO™ & OptiMem II |
| Graphics | 1 x DisplayPort (8K@60Hz), 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 (x16 mode), 1 x PCIe 4.0/3.0 x16 (x1 mode), 1 x PCIe 4.0/3.0 x1 |
| Storage | 3 x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) + 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wireless & BT | Wi-Fi 6E (2.4/5/6GHz), Bluetooth® v5.3 |
| Rear USB | 2 x USB 10Gbps (1 Type-A + 1 Type-C), 3 x USB 5Gbps, 3 x USB 2.0 |
| Front USB | 1 x USB 20Gbps (Type-C), 2 x USB 5Gbps (via header), 4 x USB 2.0 (via headers) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, 24-Bit/192 kHz playback |
| Special Features | TUF Protection (Digi+ VRM, ESD Guards), ASUS Q-Design (M.2 Q-Latch, Q-LED), BIOS FlashBack™ |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch) |
