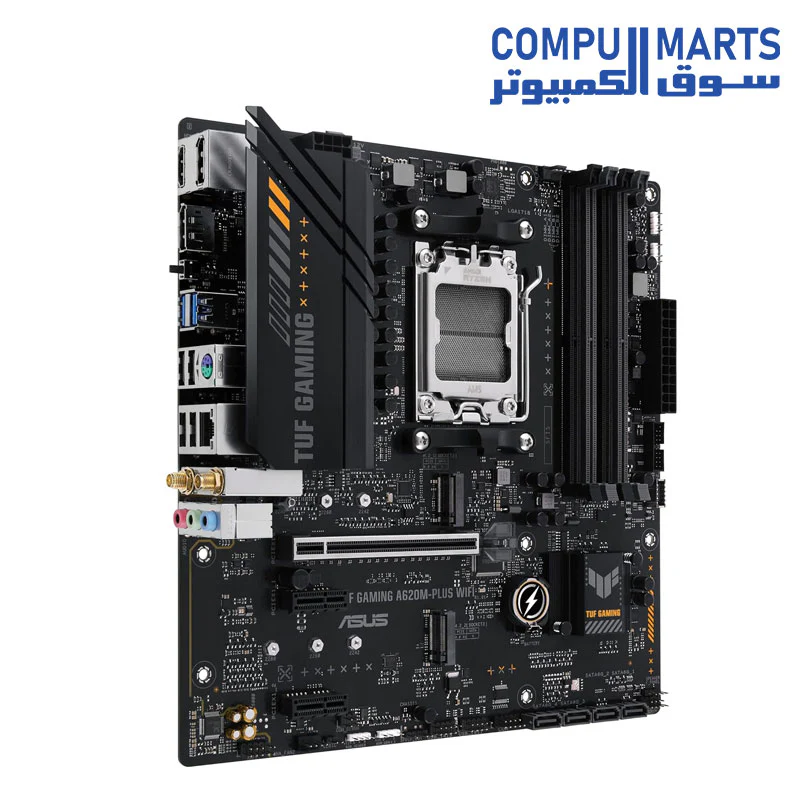

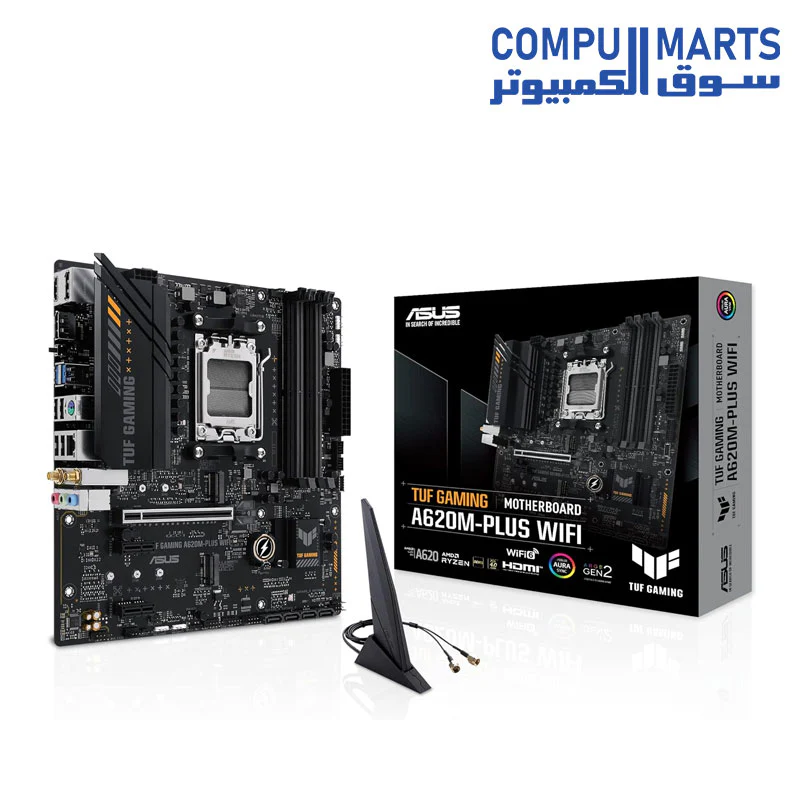

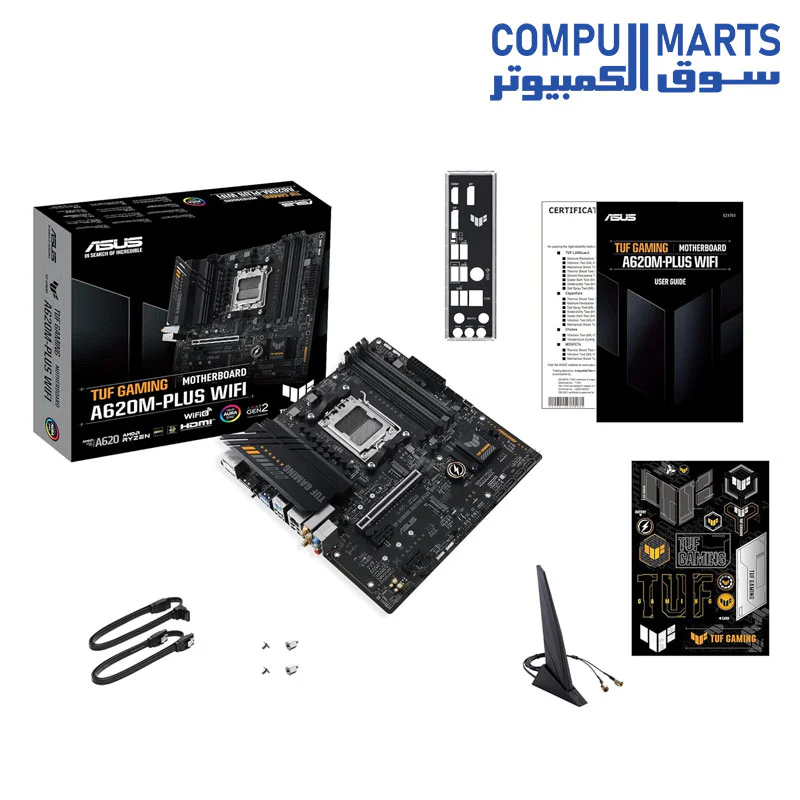

ASUS TUF Gaming A620M-PLUS(WiFi) AMD AM5 (Ryzen 7000) microATX Gaming Motherboard—
$108.79
The Story
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING A620M-PLUS WIFI |
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC) to 4800, ECC/Non-ECC, Un-buffered, AMD EXPO Support |
| Graphics Outputs | 2 x DisplayPort 1.4 (Up to 8K@60Hz), 1 x HDMI 2.1 (Up to 4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots |
| Storage | 2 x M.2 slots (PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports (RAID 0/1/10 supported) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wireless & BT | Wi-Fi 6 (802.11ax) 1x1, Bluetooth v5.3 |
| USB (Rear) | 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, Premium Capacitors, Audio Shielding |

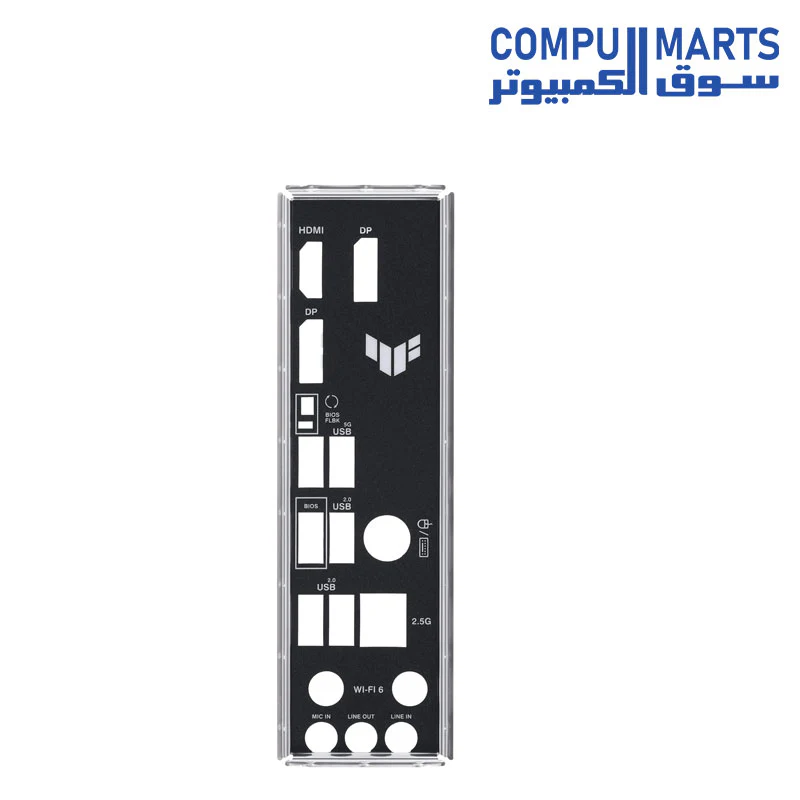

| Rear I/O Buttons | 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo |
| Internal Headers | 3 x Addressable Gen 2, 1 x Aura RGB, 1 x COM Port, 1 x S/PDIF Out |
| Special Features | TUF Protection (SafeSlot Core+, ESD Guards), ASUS Q-Design, VRM Heatsink, Aura Sync |
| Form Factor | Micro-ATX (9.6 inch x 9.6 inch / 24.4 cm x 24.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING A620M-PLUS WIFI |
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC) to 4800, ECC/Non-ECC, Un-buffered, AMD EXPO Support |
| Graphics Outputs | 2 x DisplayPort 1.4 (Up to 8K@60Hz), 1 x HDMI 2.1 (Up to 4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots |
| Storage | 2 x M.2 slots (PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports (RAID 0/1/10 supported) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wireless & BT | Wi-Fi 6 (802.11ax) 1x1, Bluetooth v5.3 |
| USB (Rear) | 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, Premium Capacitors, Audio Shielding |
| Rear I/O Buttons | 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo |
| Internal Headers | 3 x Addressable Gen 2, 1 x Aura RGB, 1 x COM Port, 1 x S/PDIF Out |
| Special Features | TUF Protection (SafeSlot Core+, ESD Guards), ASUS Q-Design, VRM Heatsink, Aura Sync |
| Form Factor | Micro-ATX (9.6 inch x 9.6 inch / 24.4 cm x 24.4 cm) |
