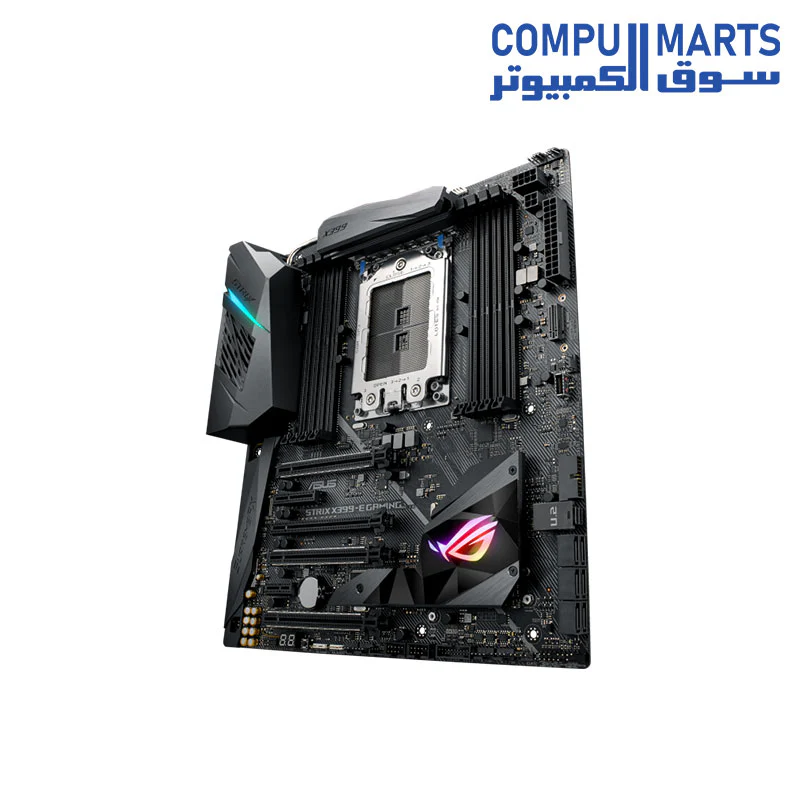

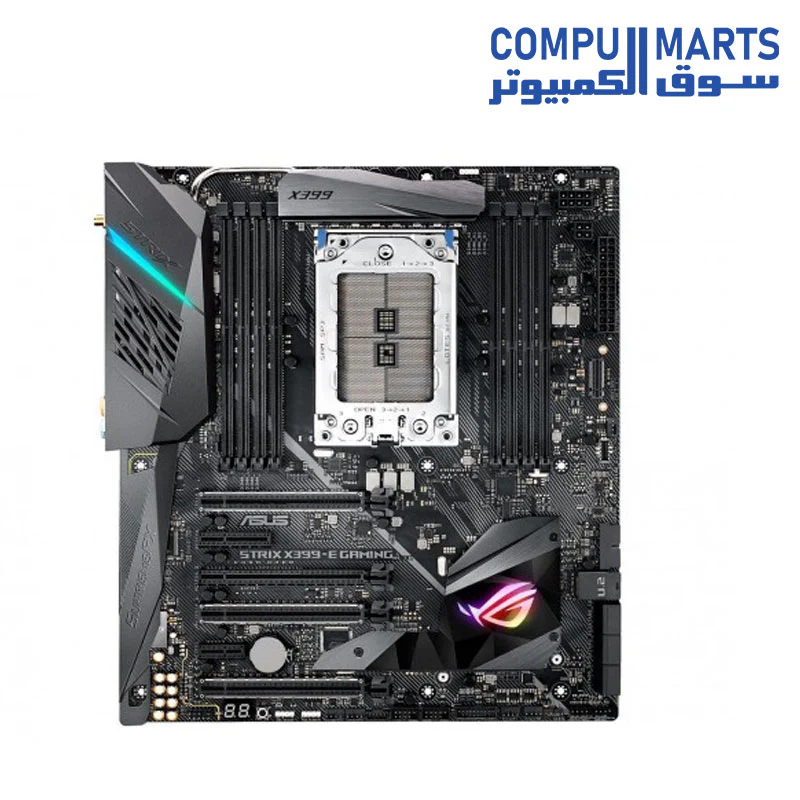

ASUS ROG STRIX X399-E GAMING Ryzen Motherboards

ASUS ROG STRIX X399-E GAMING

Brand :ASUS

Series :ROG

Model :Strix X399-E Gaming

Supported CPU

CPU Socket Type :sTR4

CPU Type :Ryzen Threadripper Series

Chipsets

Chipset :AMD X399

Memory

Number of Memory Slots :8×288pin

Memory Standard :DDR4 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133

Maximum Memory Supported :128GB

Expansion Slots

PCI Express 3.0 x16 :4 x PCIe 3.0 x16 (singlex16, dualx16/x16, triplex16/x16/x8 mode)

PCI Express x4 :1 x PCIe 2.0 x4 (max at x4 mode)

PCI Express x1 :1 x PCIe 2.0 x1

Storage Devices

SATA 6Gb/s :6 x SATA 6Gb/s

M.2 :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)

1 x U.2 port

SATA RAID :0/1/10

Onboard Audio

Audio Chipset :ROG SupremeFX High Definition Audio CODEC S1220A

Audio Channels :8 Channels

Onboard LAN

LAN Chipset: Intel i211AT

Max LAN Speed :10/100/1000Mbps

Wireless LAN :WiFi IEEE 802.11 a / b / g / n / ac

Bluetooth :Bluetooth V4.2

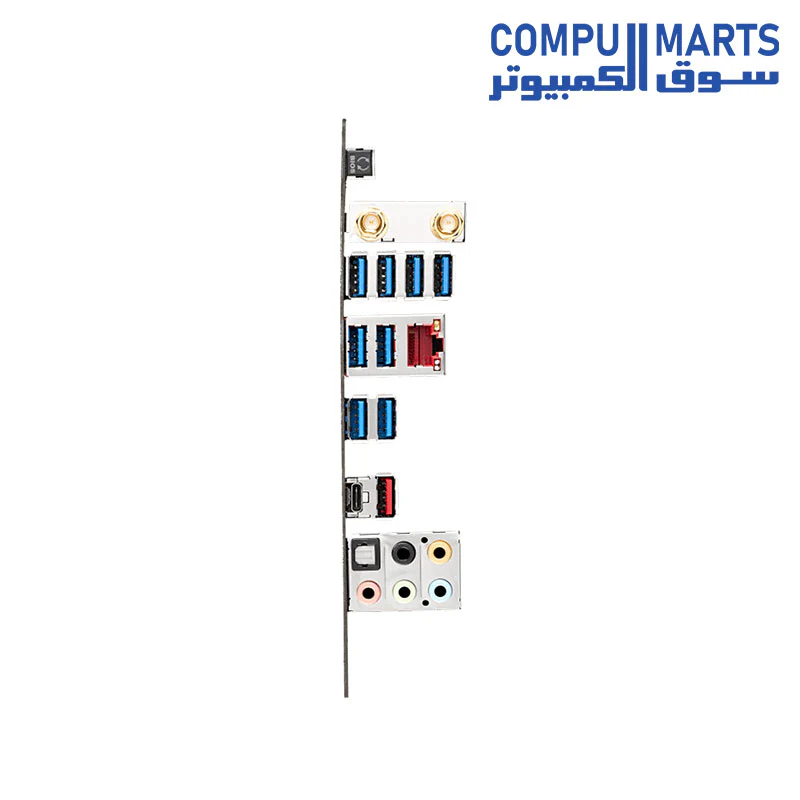

Rear Panel Ports

RJ45 :1 x RJ45

USB 3.1 :2 x USB 3.1 Gen 2 (teal blue) Type-A + USB Type-C

8 x USB 3.1 Gen 1 (blue)

S/PDIF Out :1 x Optical

Audio Ports :5 Ports

Internal I/O Connectors

Onboard USB

1 x USB 3.1 Gen 2 front panel connector

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

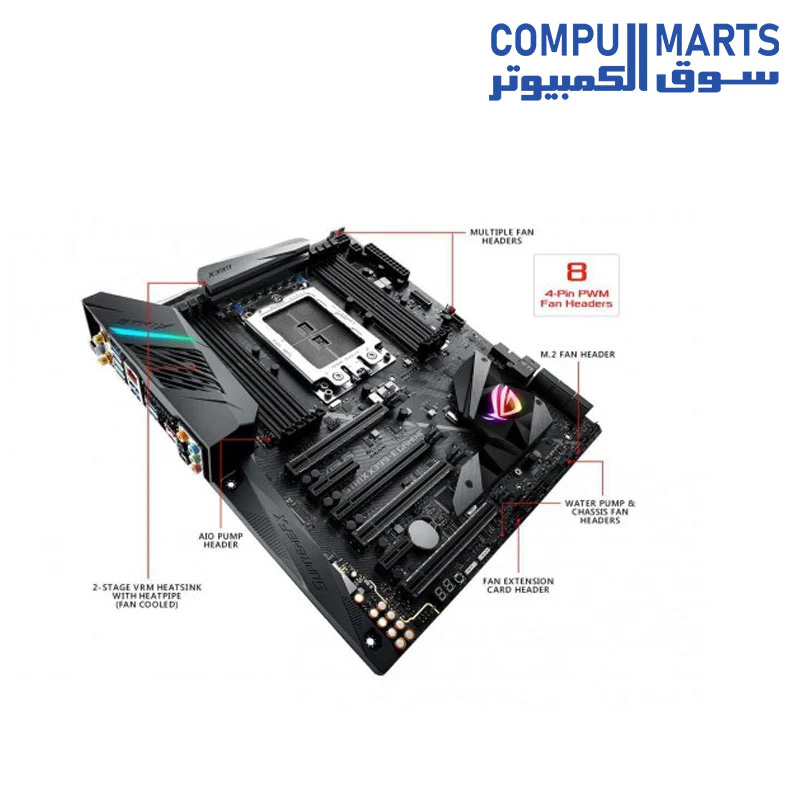

Other Connectors

1 x Q_Code

1 x Aura Addressable Strip Header(s)

1 x U.2 port

2 x RGB Header(s)

1 x M.2_FAN connector

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x W_PUMP+ connector

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x 5-pin EXT_FAN (Extension Fan) connector

1 x Thermal sensor connector(s)

1 x Power-on button(s)

1 x Clear CMOS jumper(s)

Physical Spec

Form Factor :Extended ATX

LED Lighting :RGB

Dimensions (W x L) :12.0" x 10.6"

Power Pin

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

Features

Features

Multi-GPU Support:

Supports NVIDIA Quad-GPU SLI Technology

Supports NVIDIA 3-Way SLI Technology

Supports NVIDIA 2-Way SLI Technology

Supports AMD Quad-GPU CrossFireX Technology

Supports AMD 3-Way CrossFireX Technology

Supports AMD 2-Way CrossFireX Technology

ROG Exclusive Features:

ROG RAMCache II

ROG CPU-Z

ROG CloneDrive

Overwolf

GameFirst IV

Special Features:

OC Design - ASUS PRO Clock Technology

- Full BCLK range for extreme overclocking performance

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:

- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

AURA:

- Aura Lighting Control

- Aura RGB Strip Headers

- Aura Lighting Effects Synchronization with compatible ASUS ROG devices

- Aura Addressable Strip Header(s)

ASUS Exclusive Features:

- USB BIOS Flashback

- AI Suite 3

- Ai Charger

- Onboard Button: Power

ASUS Quiet Thermal Solution:

- Stylish Design Heat-pipe solution

- ASUS Fan Xpert 4

ASUS EZ DIY:

- ASUS EZ Flash 3

- ASUS USB BIOS Flashback

- ASUS UEFI BIOS EZ Mode

- Multi-language BIOS

ASUS Q-Design:

- ASUS Q-Shield

- ASUS Q-Code

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

Gaming Aesthetics:

- 3D printing friendly

- AURA-RGB Lighting

M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)

BIOS

128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 3.0, WOL by PME, PXE

Operating System

Windows 10 64-bit

Packaging

Package Contents

Accessories:

User's manual

ASUS Q-Shield

1 x Vertical M.2 bracket set

4 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x pack of cable tie

1 x Supporting DVD

1 x SLI HB BRIDGE (2-WAY-M)

1 x Q-Connector

1 x 10-in-1 ROG cable label

1 x Thermal sensor cable pack(s)

ROG Fan Label

1 x ROG Door Hanger(s)

1 x Extension cable for Addressable LED
