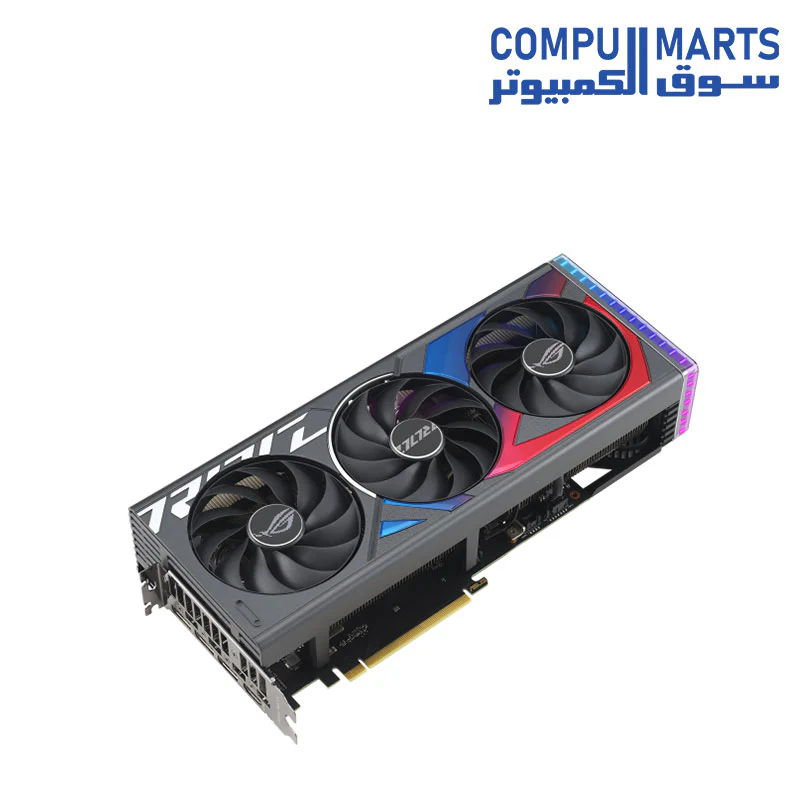

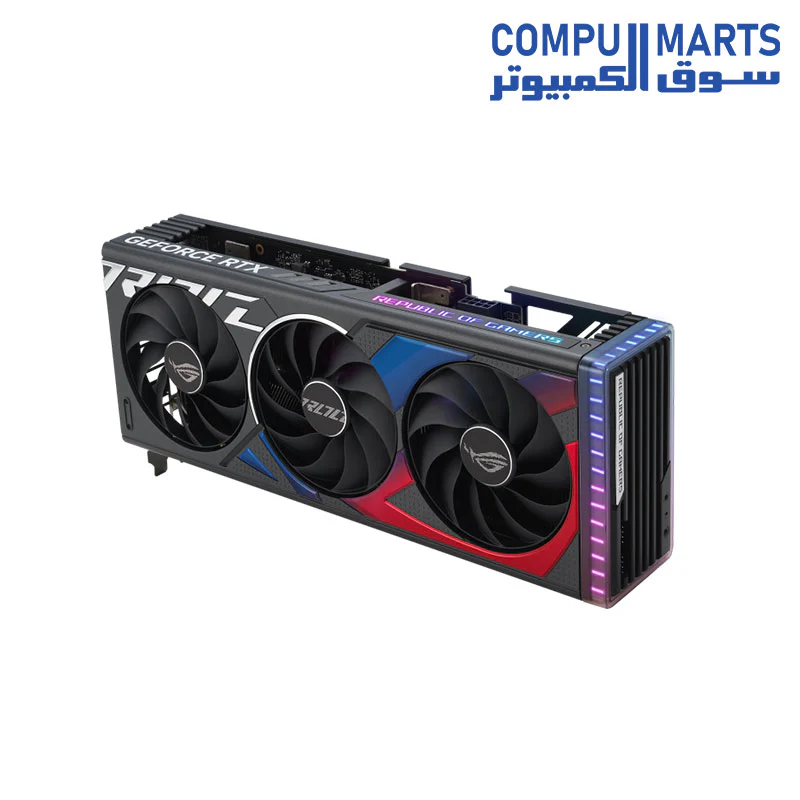

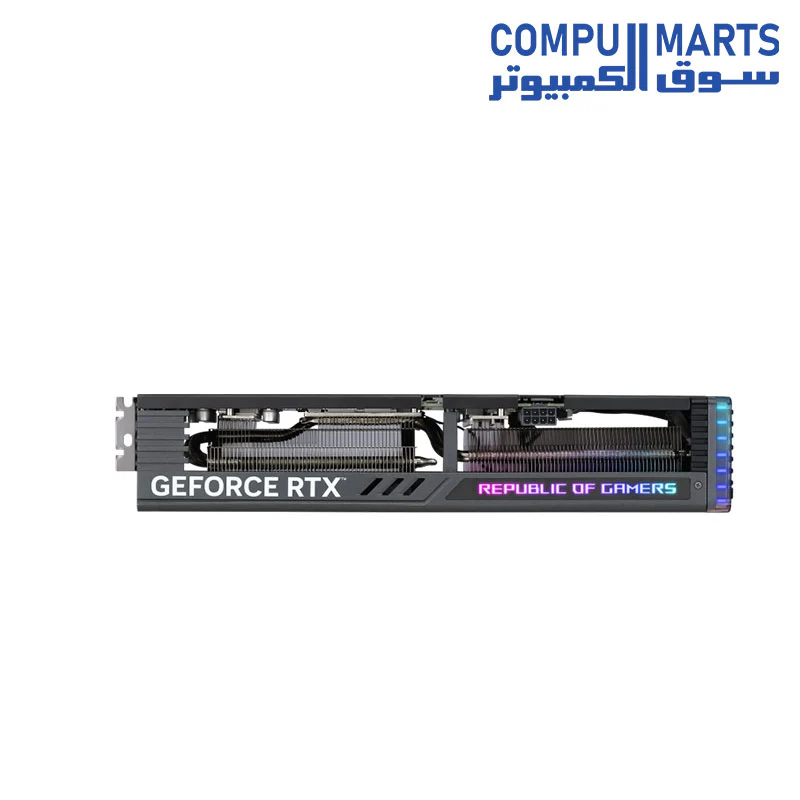

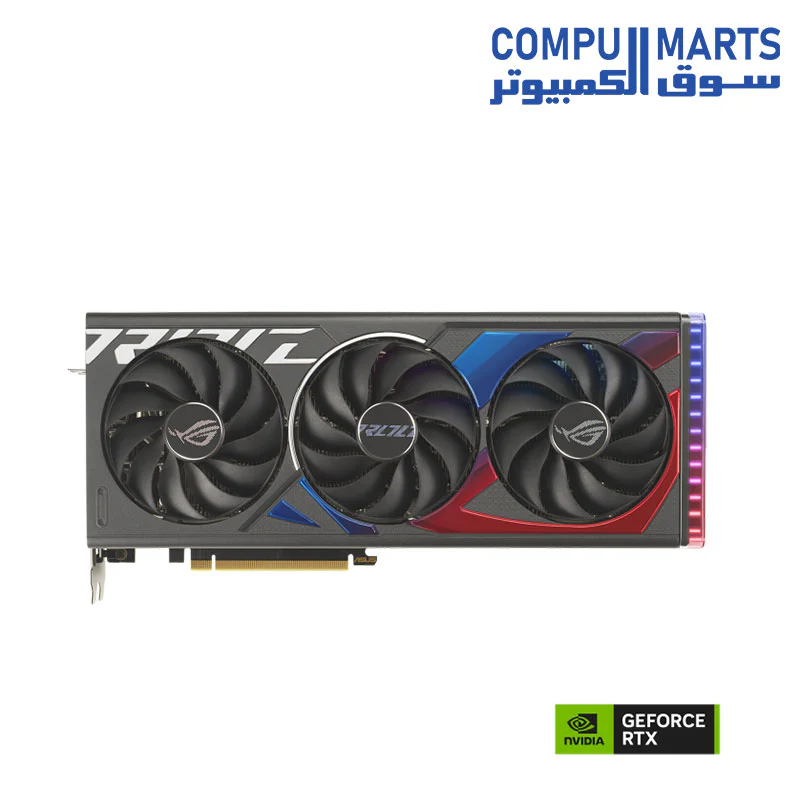

ASUS ROG Strix GeForce RTX 4070 12GB GDDR6X OC Edition

• Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.

• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

• 3rd Generation RT Cores: Up to 2x ray tracing performance

• OC mode: 2640 MHz (OC mode)/ 2610 MHz (Default mode)

• Axial-tech fans scaled up for 31% more airflow

• 3.12-slot design: massive fin array optimized for airflow from the three Axial-tech fans

• Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation

• Digital power control with high-current power stages and 15K capacitors to fuel maximum performance

• Auto-Extreme precision automated manufacturing for higher reliability

• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Axial-tech Upgrades A Fresh Spin Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 31% more air through the card, setting the stage for lower temperatures, less noise, and higher performance Reverse Rotation and 0dB Technology Orchestrated Chill The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play. 3.12-slot Design Through Thick and Fin The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4070 GPU so that it can be efficiently whisked away by the three Axial-tech fans. Premium Power Delivery 1st Responder Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries

Graphic Engine

Bus Standard

PCI Express 4.0

OpenGL

OpenGL4.6

Video Memory

12GB GDDR6X

Engine Clock

OC mode : 2640 MHz Default mode : 2610 MHz(Boost)

CUDA Core

5888

Memory Speed

21 Gbps

Memory Interface

192-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1)

Yes x 3 (Native DisplayPort 1.4a)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Collection Card 1 x Speedsetup Manual 1 x Thank you Card 1 x ROG Velcro Hook & Loop 1 x ROG Graphics card holder 1 x 2* PCIE 8pin to 16pin Adapter Cable

Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver

Dimensions

338.9 x 149.4 x 62.4 mm

Recommended PSU

650W

Power Connectors

1 x 16-pin

Slot

3.12 slot
