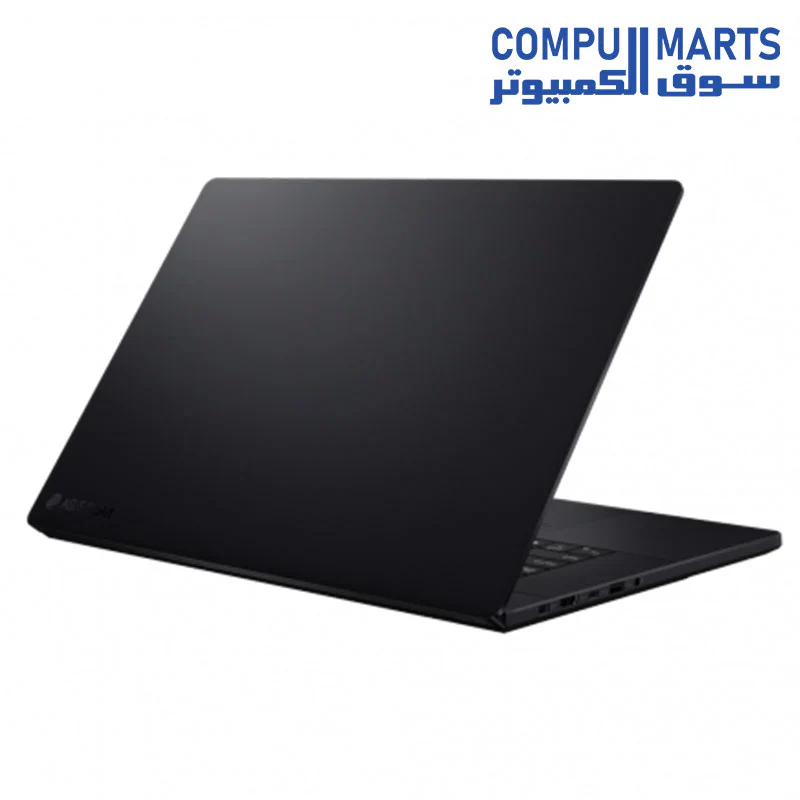

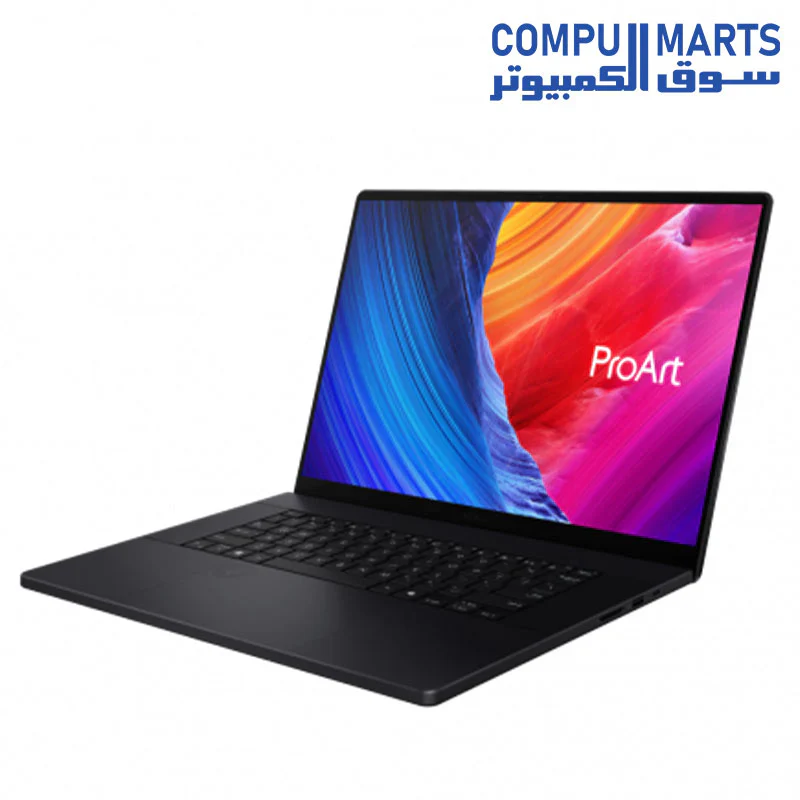

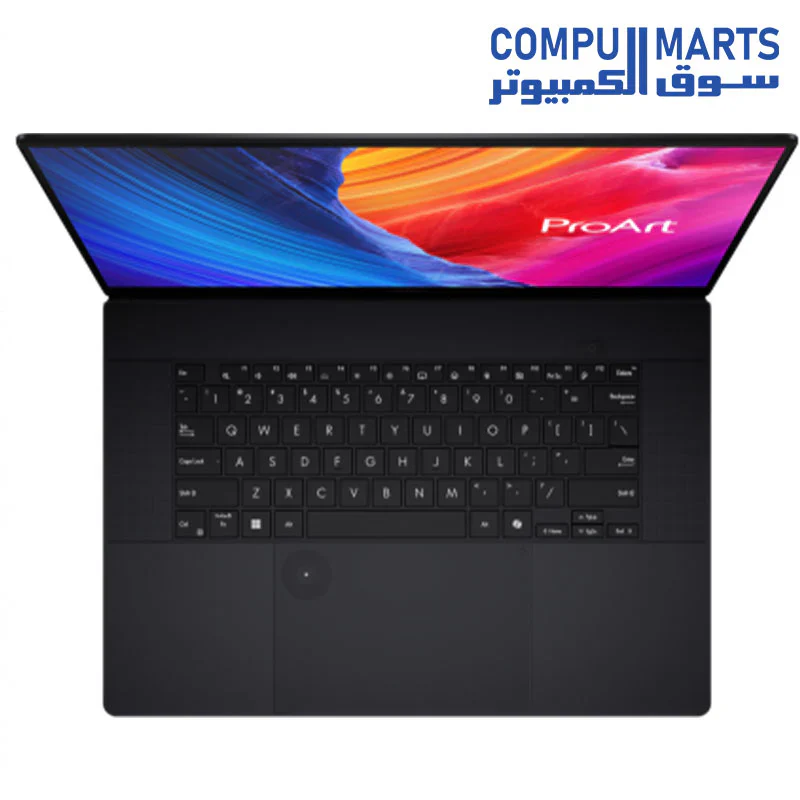

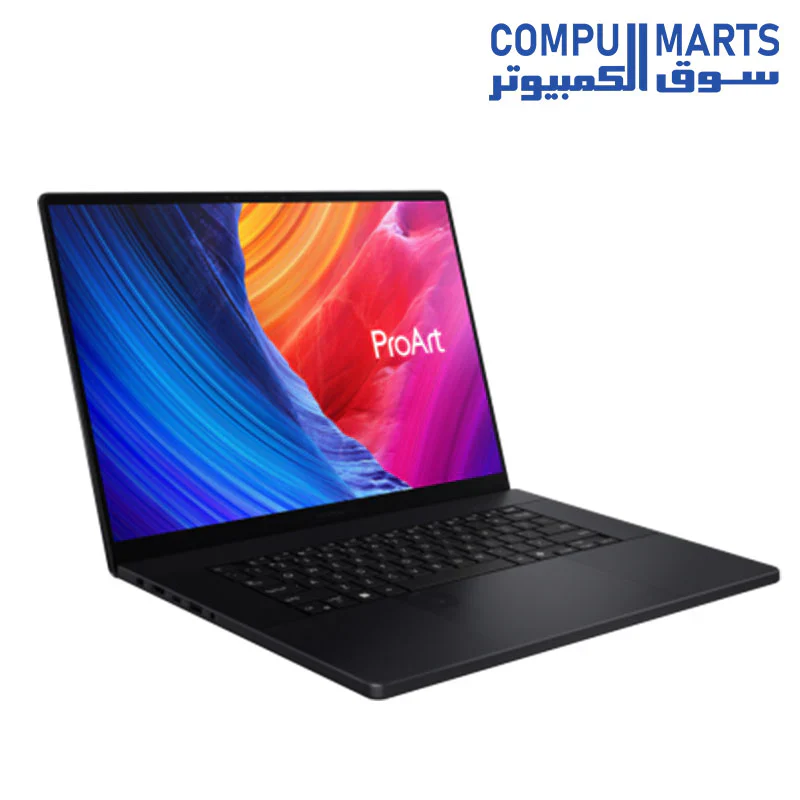

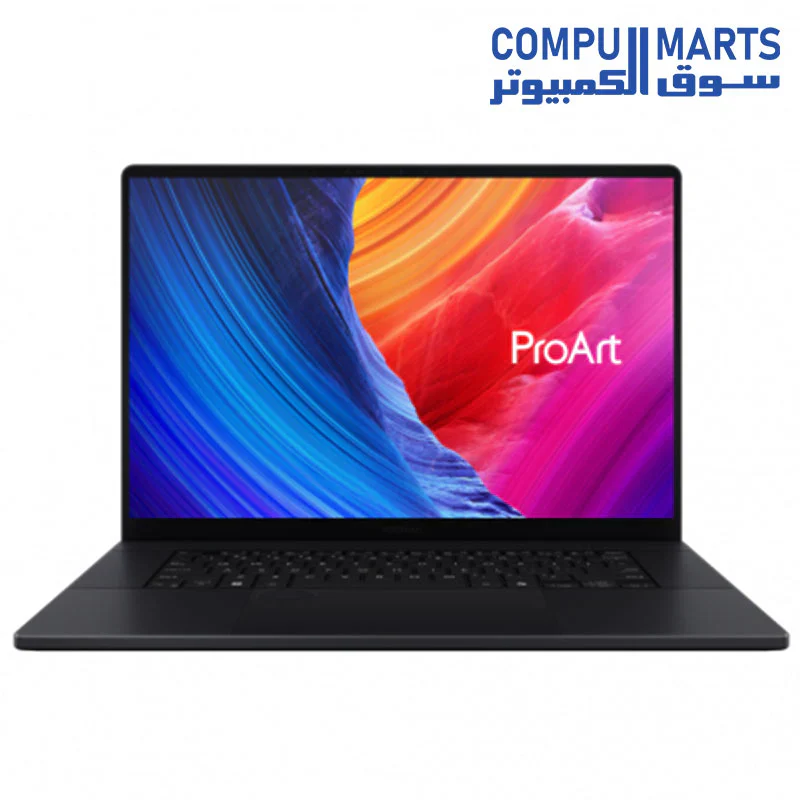

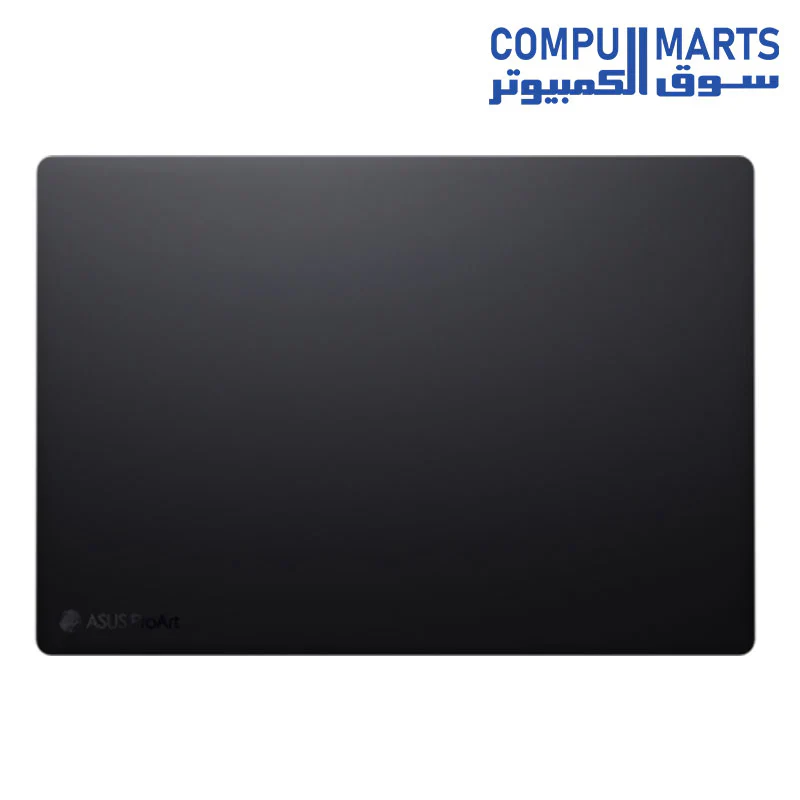

ASUS ProArt P16 H7606WP-ME021X AMD Ryzen AI 9 HX 370 64GB RAM 2TB SSD NVIDIA GeForce RTX 5070 16" OLED WIN 11 PRO

Part No

90NB15K1-M001L0

Sales Model Name

H7606WP-ME021X

EAN Code

4711636053143

UPC Code

199291053144

WEEE

1.681

BASE UNIT

VSNB15K1-BU1000

Marketing Name

ProArt P16

Operating System

Windows 11 Pro - ASUS recommends Windows 11 Pro for business

Office

1-month trial for new Microsoft 365 customers. Credit card required.

LCD cover-material

Aluminum

LCD cover-color

Nano Black

Top case-material

Aluminum

Top case-color

Nano Black

Keyboard color

Black

Bottom case-material

Aluminum

Bottom case-color

Nano Black

Military grade

US MIL-STD 810H military-grade standard

Touch Panel

Touch screen

Panel Size

16.0-inch

Resolution

4K (3840 x 2400) OLED 16:10 aspect ratio

Response time

0.2ms response time

Refresh rate

60Hz refresh rate

Brightness

400nits

Peak Brightness

500nits HDR peak brightness

Color gamut

100% DCI-P3 color gamut

Gamut mapping

Yes

Contrast ratio

1,000,000:1

VESA CERTIFIED Display HDR

VESA CERTIFIED Display HDR True Black 500

Color depth

1.07 billion colors

Pantone

PANTONE Validated

Glare

Glossy display

Low blue light

70% less harmful blue light

TÜV Rheinland-certified

TÜV Rheinland-certified

SGS Eye Care Display

SGS Eye Care Display

Screen-to-body ratio

88%

Stylus support

With stylus support

Processor

AMD Ryzen AI 9 HX 370 Processor 2.0GHz (36MB Cache, up to 5.1GHz, 12 cores, 24 Threads); AMD XDNA NPU up to 50TOPS

Chipset

N/A

Discrete/Share

Discrete

Intergrated GPU

AMD Radeon 890M Graphics

Graphics

NVIDIA GeForce RTX 5070 Laptop GPU

Graphic Memory

8GB GDDR7

Neural Processor

AMD XDNA NPU up to 50TOPS

Expansion Slot(includes used)

1x M.2 2280 PCIe 4.0x4 + 1x M.2 2280 PCIe 4.0x2

On board memory

64GB LPDDR5X on board

Total System Memory

LPDDR5X 64GB

Storage

2TB M.2 NVMe PCIe 4.0 SSD

Front-facing camera

FHD camera with IR function to support Windows Hello

Wireless

Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth 5.4 Wireless Card (*Bluetooth version may change with OS version different.)

Keyboard type

Backlit Chiclet Keyboard

Touchpad

Seamless touchpad

support DialPad

FingerPrint

N/A

I/O ports

1x USB 3.2 Gen 2 Type-C with support for display / power delivery (data speed up to 10Gbps)

1x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps)

2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

1x HDMI 2.1 FRL

1x 3.5mm Combo Audio Jack

1x DC-in

SD Express 7.0 card reader

Audio

Smart Amp Technology

Built-in speaker

Built-in array microphone

Voice control

N/A

Power

Rectangle Conn, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100~240V AC, 50/60Hz universal

Required charging power

Min: 45W

Max: 100W

*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.

Battery

90WHrs, 4S1P, 4-cell Li-ion

Replaceable Battery

No

Dimension (W x H x D)

35.49 x 24.69 x 1.49 ~ 1.73 cm (13.97" x 9.72" x 0.59" ~ 0.68")

Weight (with Battery)

1.85 kg (4.08 lbs)

Weight (without Battery)

1.80 kg (3.97 lbs)

Antivirus

N/A

Security

IR webcam with Windows Hello support

Microsoft Pluton security processor

Trusted Platform Module (Firmware TPM)

MyASUS feature

System diagnosis

Battery health charging

Fan Profile

Splendid

Function key lock

WiFi SmartConnect

TaskFirst

Live update

ASUS OLED Care

AI Noise Canceling

Built-in Apps

ASUS Recovery

CapCut

MuseTree

StoryCube

MyASUS

ProArt Creator Hub

ScreenXpert

GlideX

Adobe Creative Cloud Hard Bundle

Three-Month Membership of Adobe Creative Cloud All Apps, Individual.

The redemption duration from September 15, 2021 to August 31, 2025.

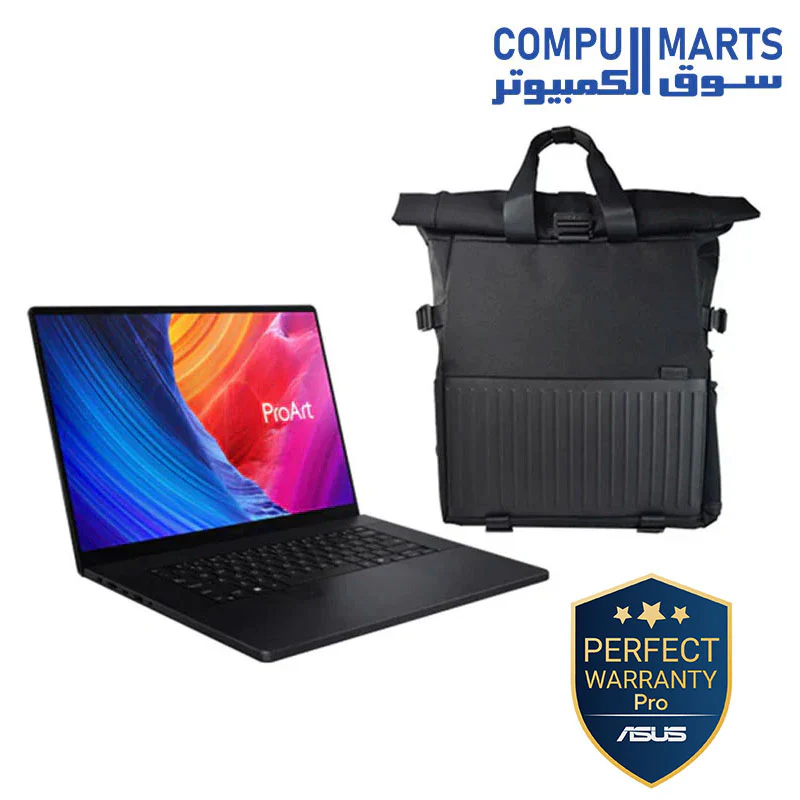

Included in the Box

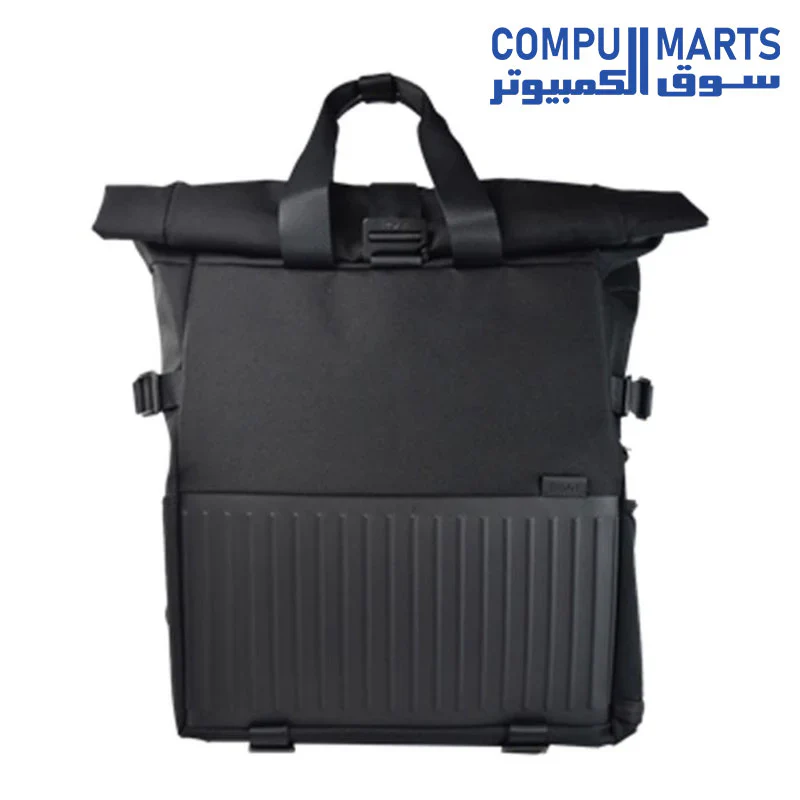

Backpack

Ecolabels & Compliances

Energy star 8.0

RoHS

REACH

Reparability Index (for France)

8.4
