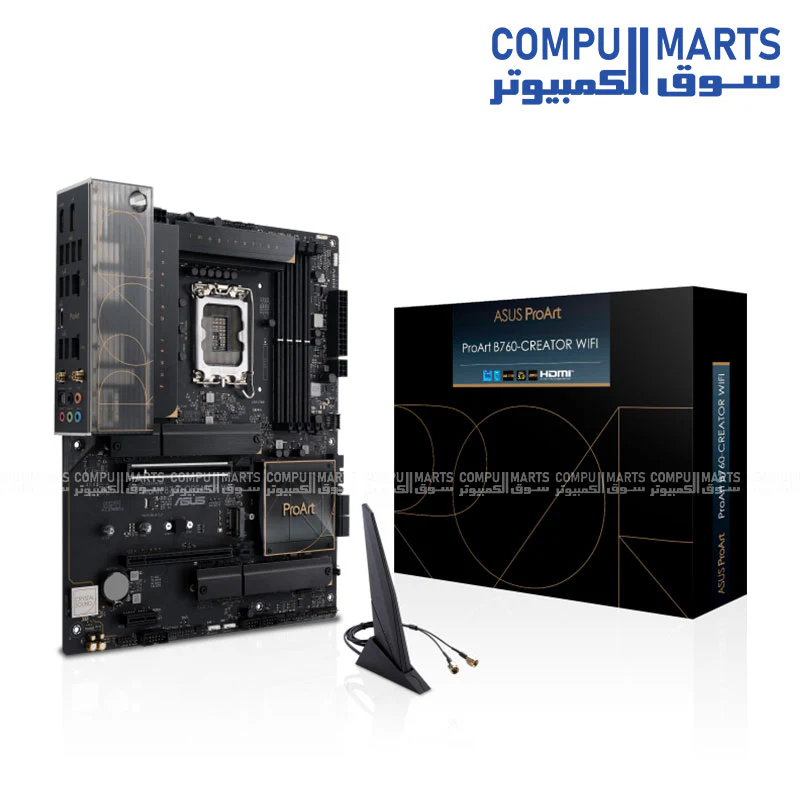

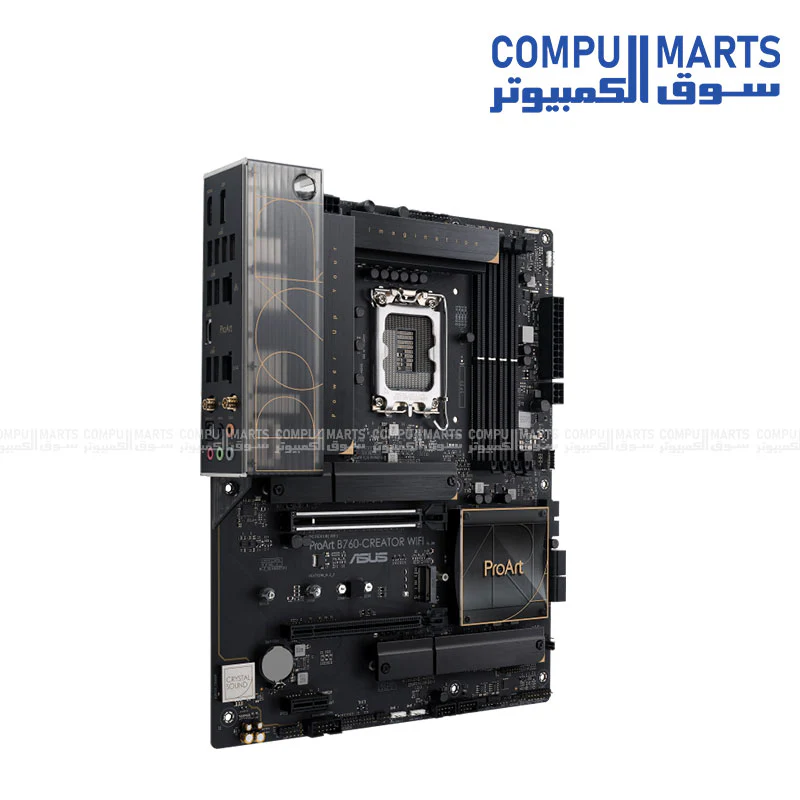

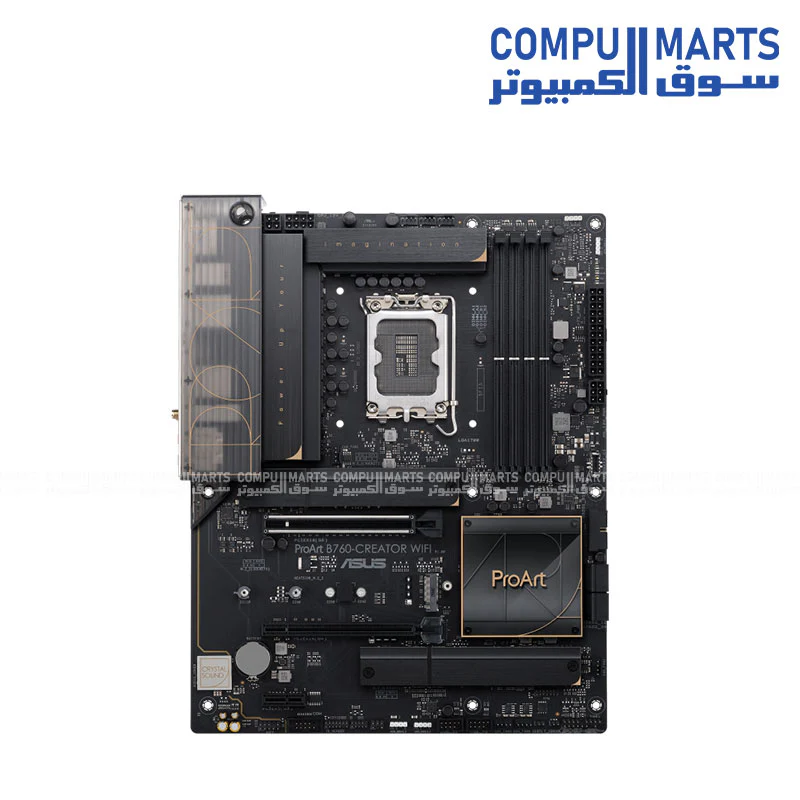

ASUS ProArt B760-CREATOR WIFI DDR5 ATX Motherboard

ASUS ProArt B760-CREATOR WIFI DDR5 ATX Motherboard

Model
ProArt B760-CREATOR WIFI

CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel 10 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 (support depends on the CPU type)

Chipset
Intel B760 Chipset

Memory
4 x DIMM slots, Max. 192GB, DDR5 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II

Graphics
1 x HDMI port
1 x DisplayPort port

Expansion Slots
Intel 14th & 13th & 12th Gen Processors: 1 x PCIe 5.0/4.0/3.0 x16 slot
Intel B760 Chipset:

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 3.0 x1 slot (shares bandwidth with M.2_2)

Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
M.2_1: PCIe 4.0 x4 (CPU dependent)
M.2_2: PCIe 3.0 x4 mode (shared bandwidth with PCIe X1 and WiFi module)
M.2_3: PCIe 4.0 x4 mode
4 x SATA 6Gb/s ports
Supports Intel Rapid Storage Technology with RAID 0/1/5/10

Ethernet
1 x Realtek 2.5Gb Ethernet
1 x Intel 1Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2x2
Supports 2.4/5GHz frequency band
Bluetooth v5.2

USB
Rear USB (9 ports):

• 1 x USB 3.2 Gen 2 Type-C

• 4 x USB 3.2 Gen 1 Type-A

• 4 x USB 2.0 Type-A

Front USB (7 ports):

• 1 x USB 3.2 Gen 2x2 connector (Type-C, 60W PD/QC4+)

• 1 x USB 3.2 Gen 1 header (2 ports)

• 2 x USB 2.0 headers (4 ports)

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Premium audio capacitors, dedicated PCB layers, audio cover, unique de-pop circuit

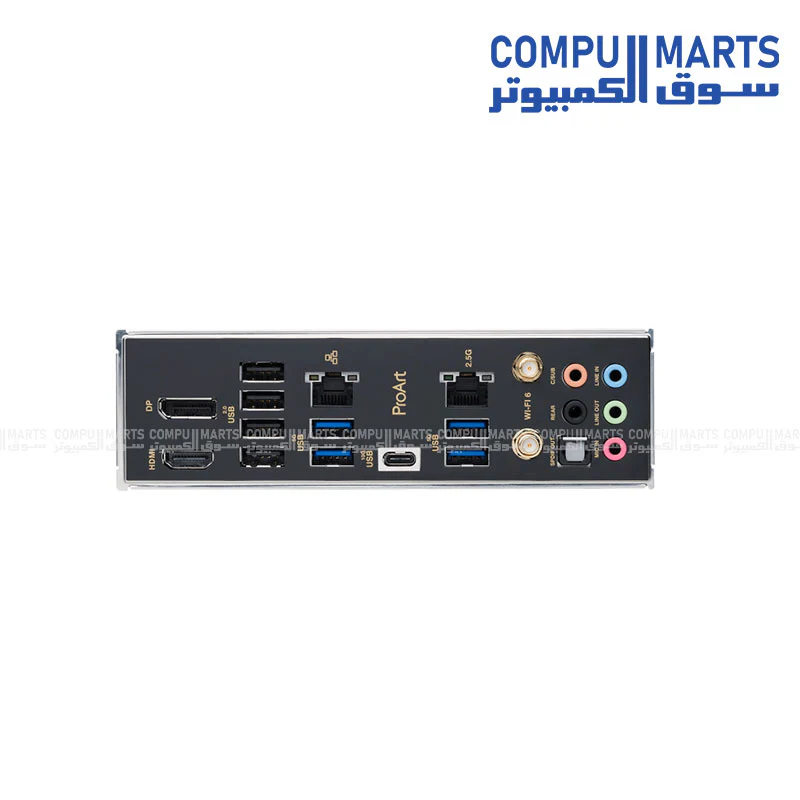

Back Panel I/O Ports
1 x USB 3.2 Gen 2 Type-C
4 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
1 x Intel 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out

Internal I/O Connectors

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 4 x 4-pin Chassis Fan headers

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

• 1 x 4-pin +12V Power connector

• 1 x 6-pin PD_12V Power connector

• 3 x M.2 slots

• 4 x SATA 6Gb/s ports

• 1 x USB 3.2 Gen 2x2 connector

• 1 x USB 3.2 Gen 1 header (2 ports)

• 2 x USB 2.0 headers (4 ports)

• 3 x Addressable Gen 2 headers

• 1 x AURA RGB header

• 1 x Clear CMOS header

• 1 x COM Port header

• 1 x Front Panel Audio header

• 1 x SPI TPM header

• 1 x System Panel header

• 1 x Thermal Sensor header

• 1 x Thunderbolt header

Special Features
ASUS 5X PROTECTION III
DIGI+ VRM (Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
LANGuard
Overvoltage Protection
SafeSlot
Stainless-Steel Back I/O

ASUS Q-Design: M.2 Q-Latch, Q-Connector, Q-DIMM, Q-LED, Q-Slot
ASUS Thermal Solution: Flexible M.2 heatsink, VRM heatsink design
ASUS EZ DIY: ProCool, Pre-mounted I/O shield
AURA Sync (RGB and Addressable Gen 2 headers)

Software Features
Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 4, Power Saving, Two-Way AI Noise Cancelation)
AI Suite 3 (Performance & Power Saving Utility, DIGI+ VRM, Turbo app)
ASUS CPU-Z
ASUS Control Center Express
ProArt Creator Hub
CreationFirst
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR

UEFI BIOS
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
128 Mb BIOS

Manageability
WOL by PME, PXE

Accessories
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
2 x M.2 Rubber packages
1 x ProArt ruler
1 x Q-connector
1 x ACC Express Activation Key Card
1 x User guide

Operating System
Windows 11 64-bit, Windows 10 64-bit

Form Factor
ATX Form Factor, 12 x 9.6 inch (30.5 x 24.4 cm)
