$0.01
Original: $0.02
-50%ASUS PRO H610M-C CSM Motherboard | DDR5 | LGA1700 | mATX—
$0.02
$0.01The Story

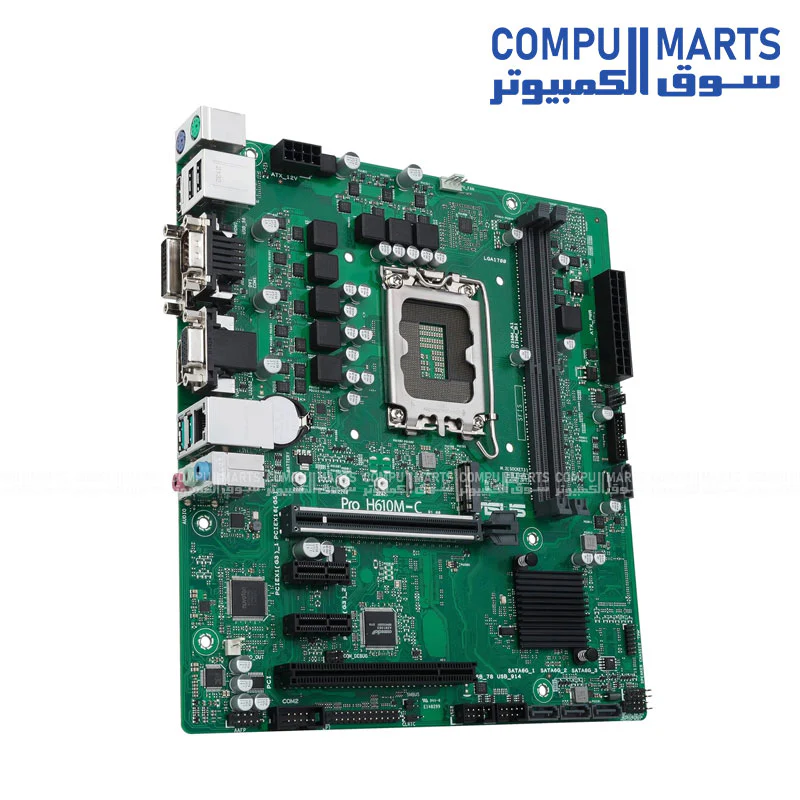

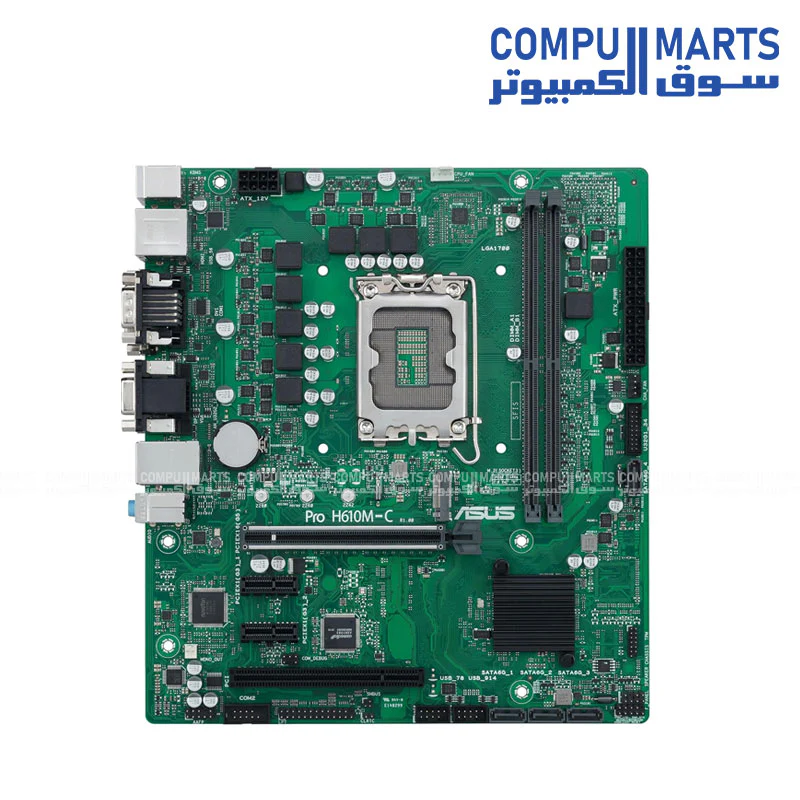

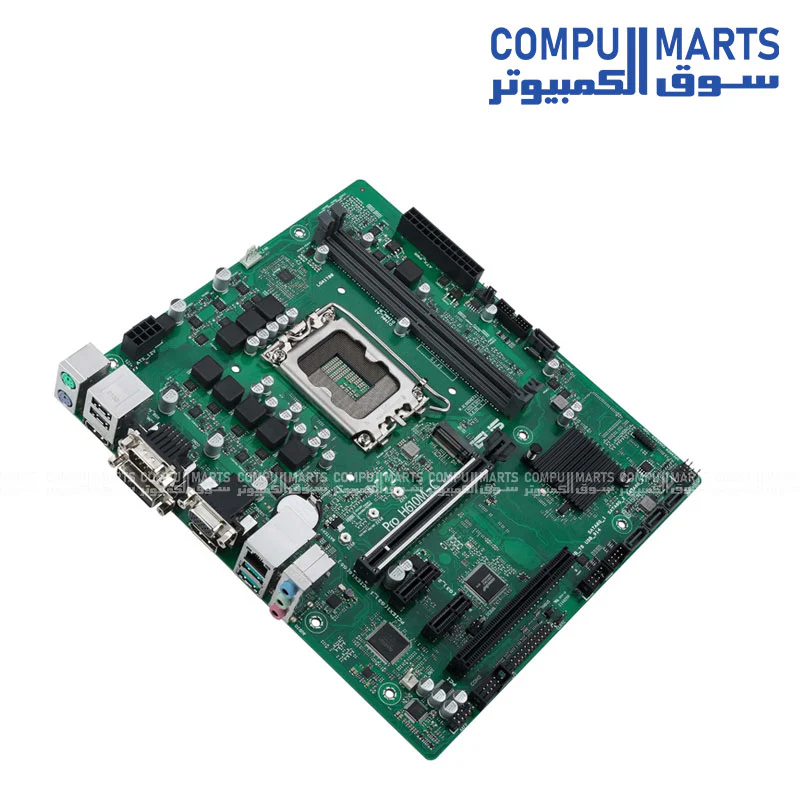

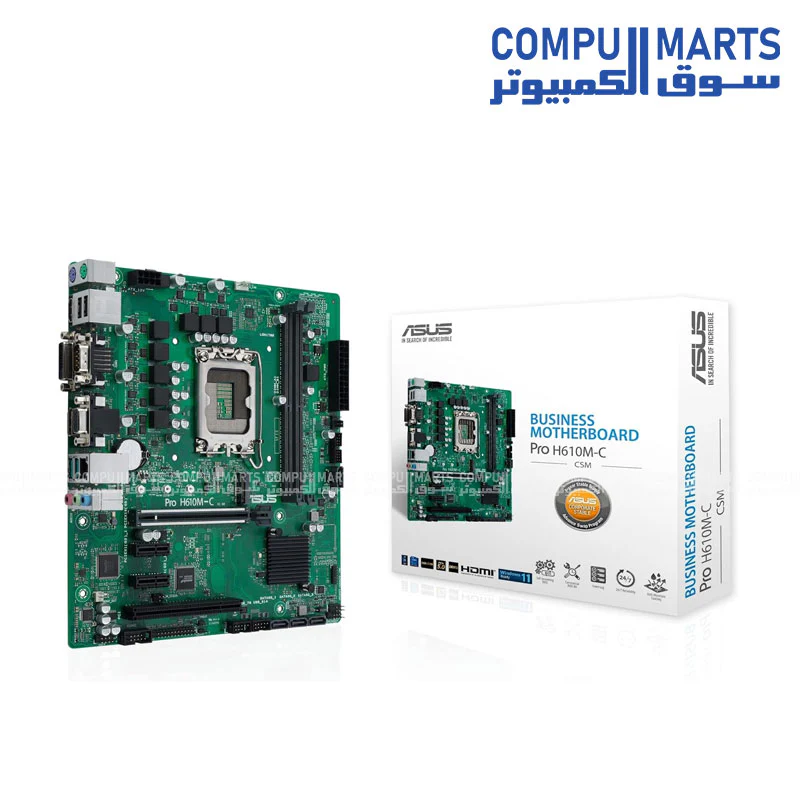

ASUS PRO H610M-C CSM Motherboard | DDR5 | LGA1700 | mATX
Specification:
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H610 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 |

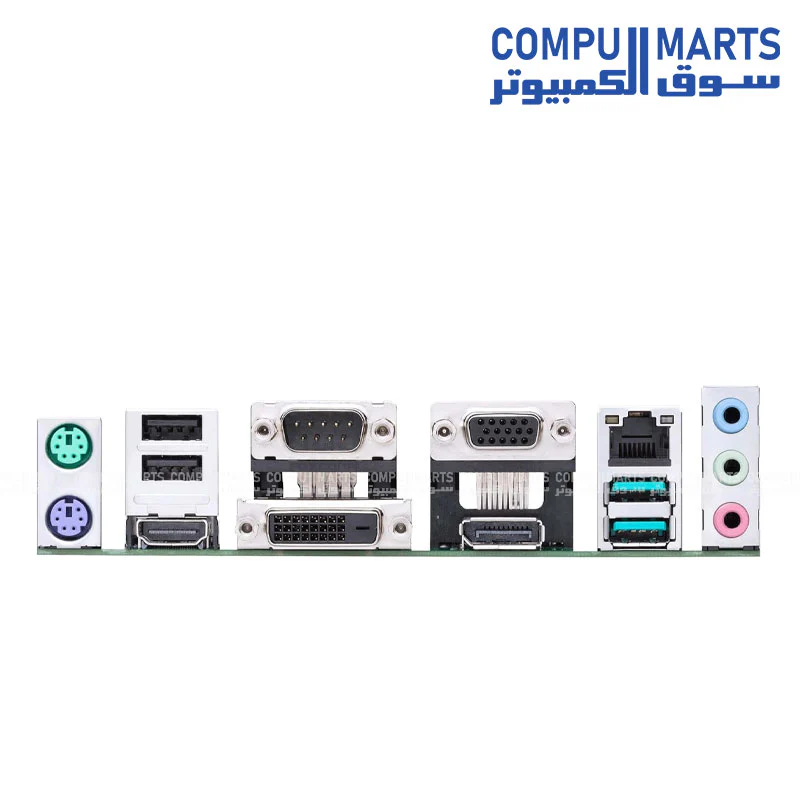

| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x DisplayPort ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 1 x serial |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Moistureproof PCB, Intel Turbo Boost Max Technology 3.0, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, ASUS Control Center Express (ACC Express), Q-LED Core |
| Miscellaneous | Miscellaneous |
| Included Accessories | 1 x M.2 screw, IO shield, ACC Express Activation Key Card |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS Control Center Express |
| Compliant Standards | FCC, RoHS, NIST SP800-147 |
| Width | 24.4 cm |
| Depth | 22 cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
ASUS PRO H610M-C CSM Motherboard | DDR5 | LGA1700 | mATX
Specification:
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H610 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x DisplayPort ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 1 x serial |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Moistureproof PCB, Intel Turbo Boost Max Technology 3.0, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, ASUS Control Center Express (ACC Express), Q-LED Core |
| Miscellaneous | Miscellaneous |
| Included Accessories | 1 x M.2 screw, IO shield, ACC Express Activation Key Card |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS Control Center Express |
| Compliant Standards | FCC, RoHS, NIST SP800-147 |
| Width | 24.4 cm |
| Depth | 22 cm |
