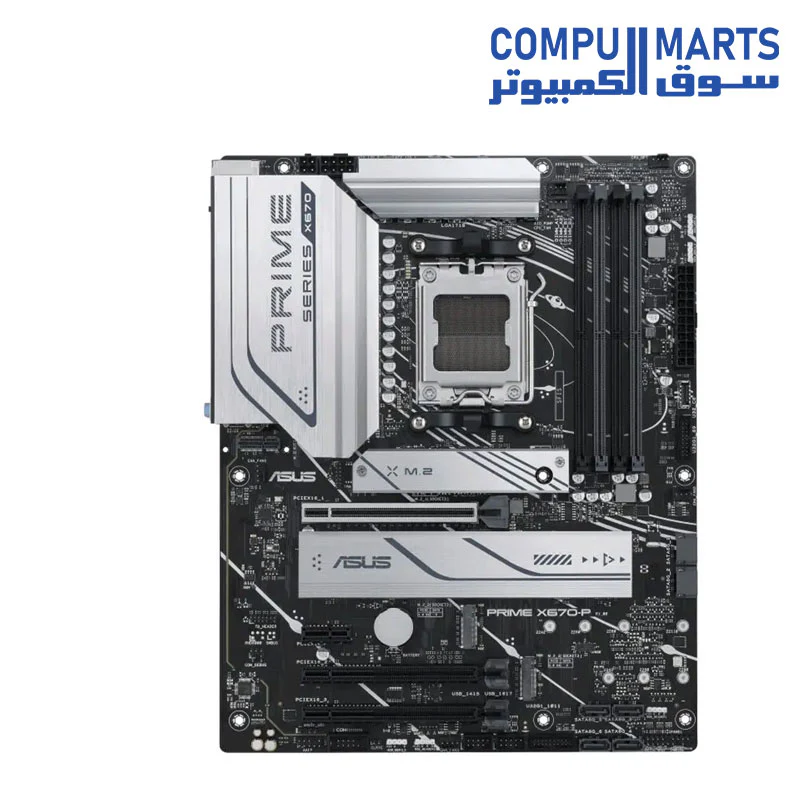

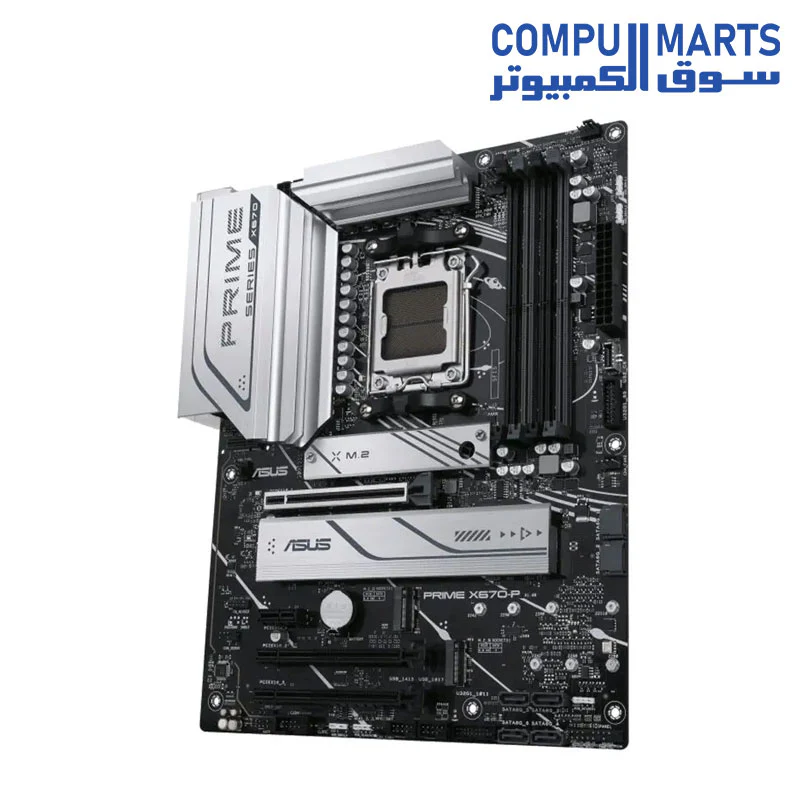

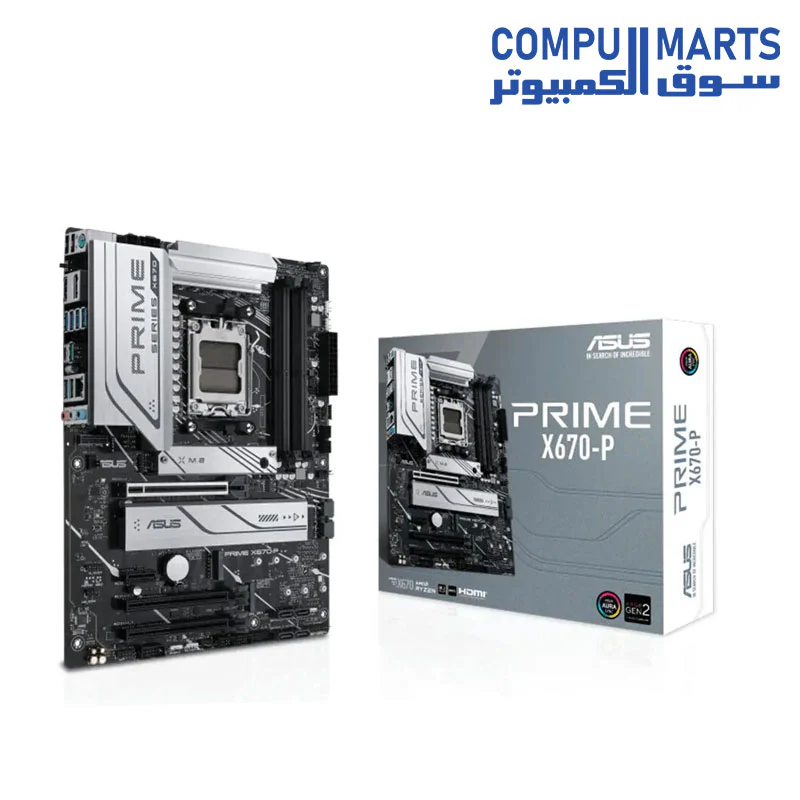

ASUS PRIME X670-P DDR5 Motherboard

CPU

AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset

AMD X670 Chipset

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x DisplayPort

1 x HDMI port

 Graphics specifications may vary between CPU types.

 Supports max. 8K 60Hz as specified in DisplayPort 1.4.

Supports 4K 60Hz as specified in HDMI 2.1.



Expansion Slots

AMD Ryzen 7000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD X670 Chipset

2 x PCIe 4.0 x16 slots (support x4 mode)

1 x PCIe 3.0 x1 slot

The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports.

When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.



Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

AMD Ryzen 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports

 AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
 The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

V-M.2 slot only (Key E, PCIe)

 Wi-Fi module is sold separately.



USB

Rear USB (Total 10 ports)

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)

3 x USB 3.2 Gen 2 ports (3 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports



Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback



Audio Features

– Audio Shielding

– Premium audio capacitors

– Dedicated audio PCB layers

 A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

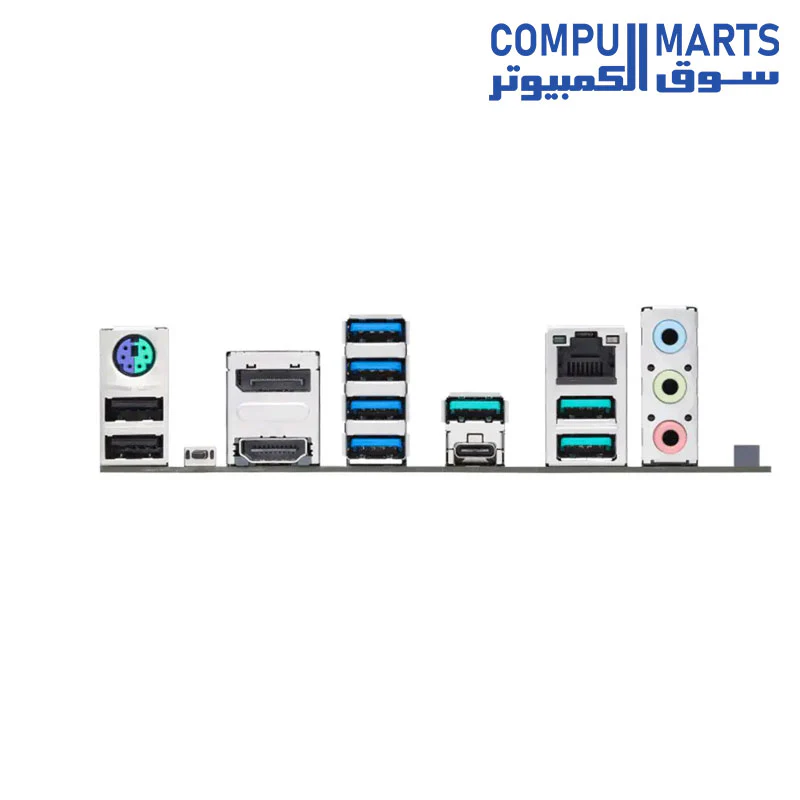

Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)

3 x USB 3.2 Gen 2 ports (3 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x V-M.2 slot (Key E)

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack button

1 x PS/2 Keyboard/Mouse combo port



Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

ASUS PRIME X670P DDR5

USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports



Miscellaneous
3 x Addressable Gen 2 headers

2 x Aura RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thunderbolt (USB4) header



Special Features

ASUS 5X PROTECTION III

– DIGI+ VRM (- Digital power design with DrMOS)

– ESD Guards

– LANGuard

– Overvoltage Protection

– Safeslot Core+

– Stainless-Steel Back I/O

ASUS Q-Design

– M.2 Q-Latch

– Q-DIMM

– Q-LED Core

– Q-Slot



ASUS PRIME X670P DDR5

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack button

– BIOS FlashBack LED

– ProCool

Aura Sync

– Aura RGB headers

– Addressable Gen 2 headers



Software Features

ASUS Exclusive Software

Armoury Crate

– Aura Creator

– Aura Sync

– Fan Xpert 4 with AI Cooling II

– Power Saving

AI Suite 3

– TurboV EVO

– DIGI+ VRM

– PC Cleaner

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

BIOS

ASUS PRIME X670P DDR5

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x Rubber Package for M.2

2 x Screw Packages for M.2 SSD

Documentation

1 x User guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

ASUS PRIME X670P DDR5 ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
