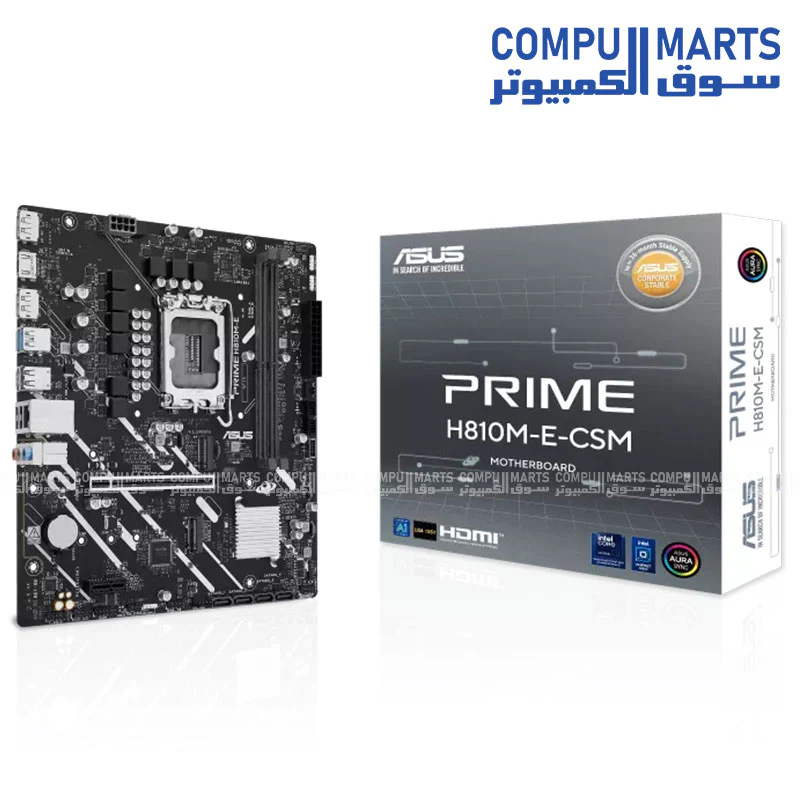

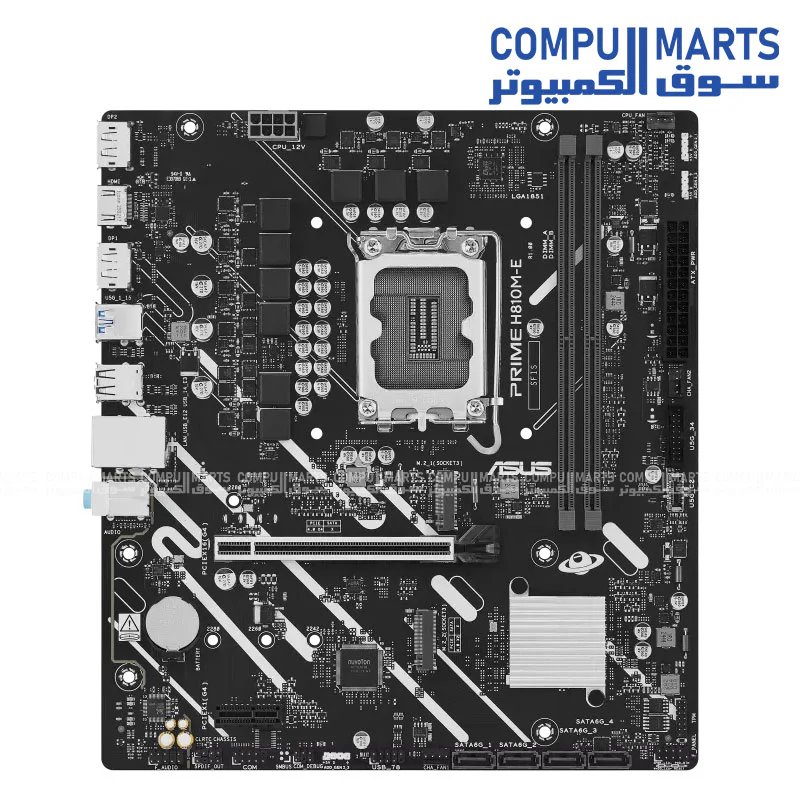

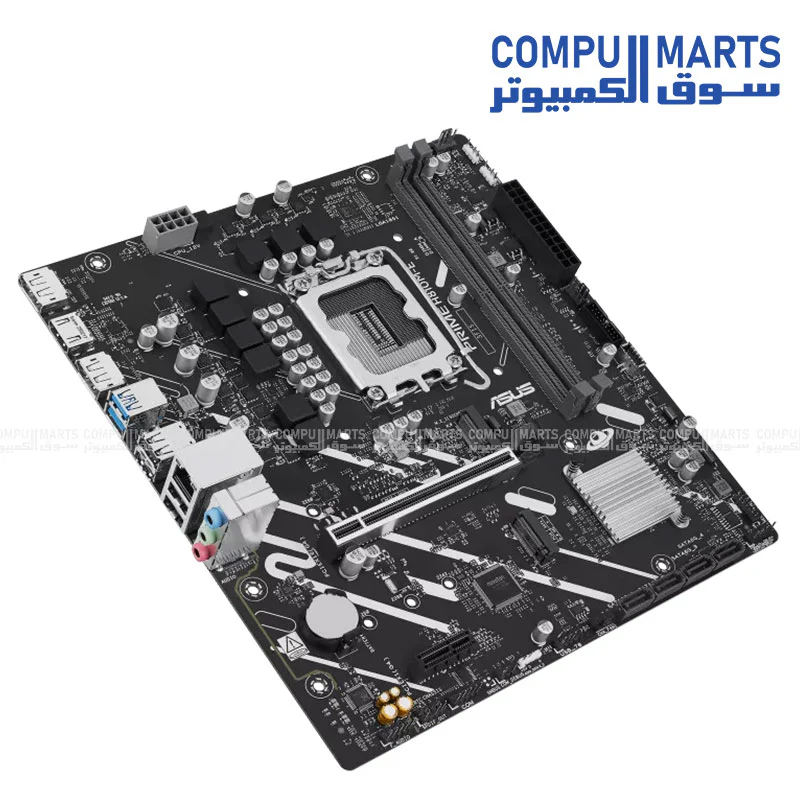

ASUS PRIME H810M-E-CSM Motherboard – DDR5 – PCIe 4.0 – mATX—
$0.02
The Story
ASUS PRIME H810M-E-CSM Motherboard – DDR5 – PCIe 4.0 – mATX
| Category | Specification |
|---|---|
| Brand | ASUS |
| Model | PRIME H810M-E-CSM |
| Form Factor | Micro-ATX (24.4 × 22.2 cm) |
| Chipset | Intel H810 |
| CPU Support | Intel Core Ultra (Series 2), LGA1851 socket |
| Boost Support | Intel Turbo Boost Max 3.0 |
| Memory | 2× DDR5 DIMM slots, max 128GB |
| Memory Speed | Up to 6400 MT/s, Dual Channel, XMP, AEMP II |
| On-Die ECC | Supported (DDR5) |
| Graphics Outputs | 2× DisplayPort (4K@60Hz), 1× HDMI 2.1 (4K@60Hz) |
| Expansion Slots | 1× PCIe 4.0 x16, 1× PCIe 4.0 x1 |
| Storage Support | 2× M.2 PCIe 4.0, 4× SATA 6Gb/s |
| Ethernet | Realtek 1Gb LAN with ASUS LANGuard |

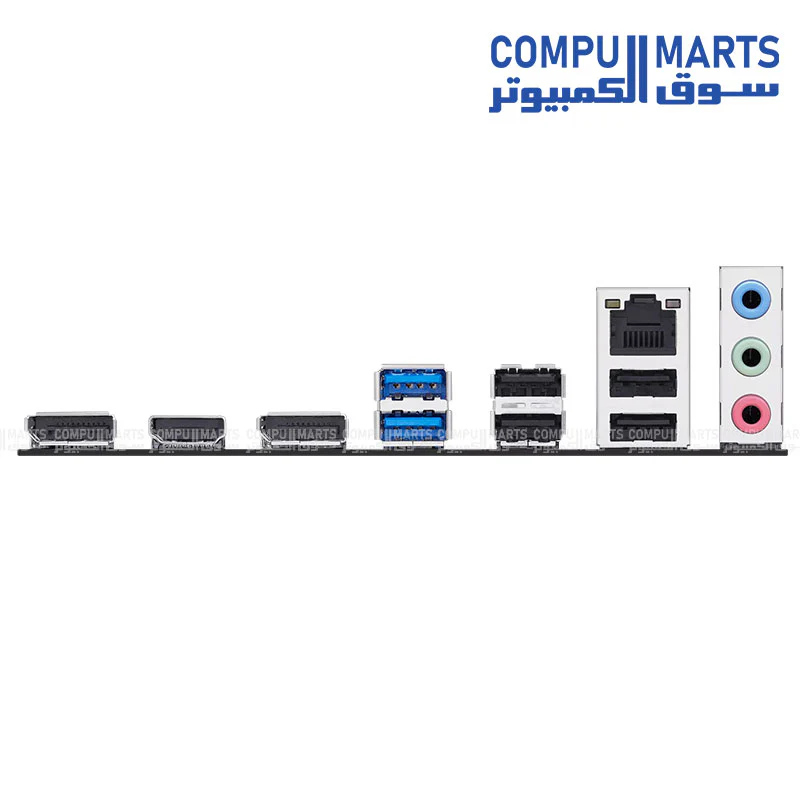

| Rear USB Ports | 2× USB 5Gbps (Type-A), 4× USB 2.0 |
| Front USB Support | 1× USB-C 5Gbps, 2× USB-A 5Gbps, 1× USB 2.0 header |
| Audio | Realtek 7.1 HD Audio, premium capacitors |
| Cooling & Fan Headers | 1× CPU, 2× Chassis |
| RGB Support | 3× ARGB Gen 2 headers (Aura Sync) |
| Internal Headers | TPM, COM, SPDIF, Clear CMOS |
| Protection | 5X Protection III, SafeSlot Core+ |
| Included Accessories | 2× SATA cables, I/O Shield, M.2 screws, Docs |
| Warranty | Based on regional ASUS policy |
