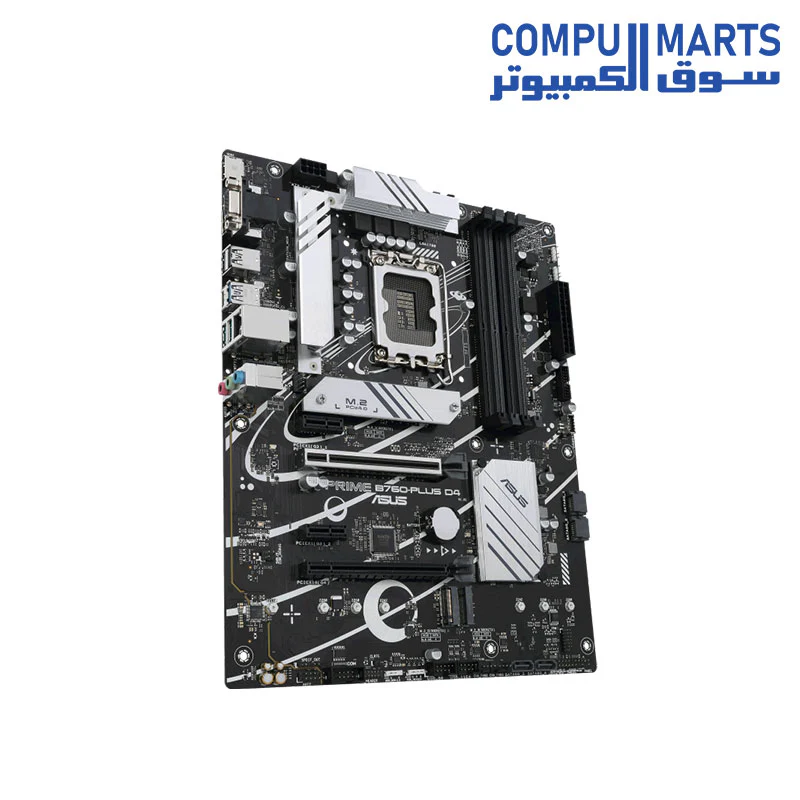

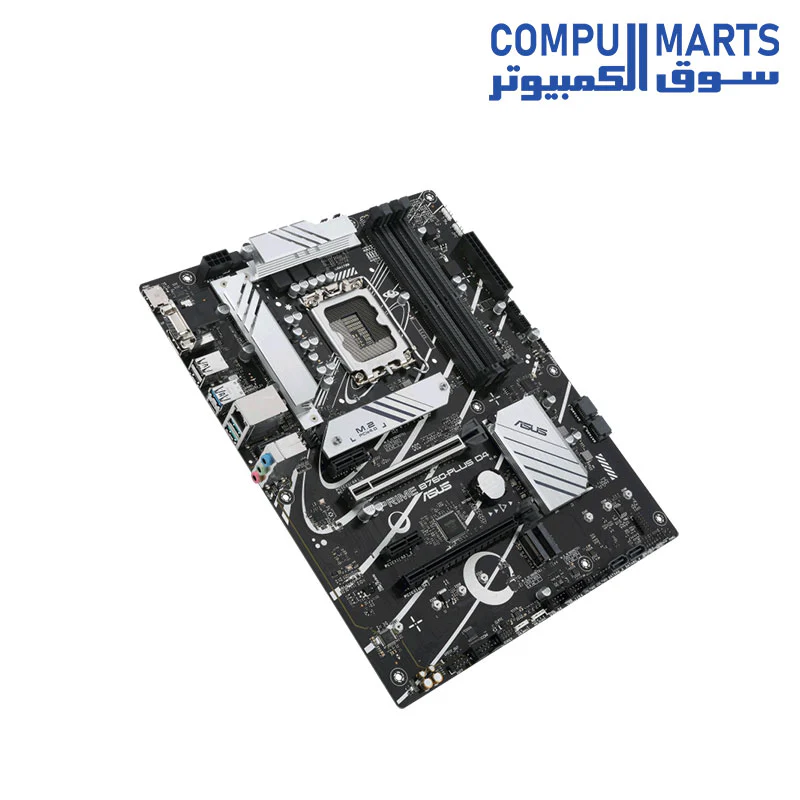

ASUS Prime B760-PLUS D4 Intel B760 LGA 1700 ATX motherboard—
$125.97
The Story
| Category | Specification Details |
|---|---|
| CPU Support | Intel® Socket LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 up to 5066(OC), OptiMem, Supports XMP |
| Graphics Output | 1 x DisplayPort, 1 x HDMI® port, 1 x VGA port |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots (2 x PCIe 4.0 x4, 1 x PCIe 4.0 x2) & 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & BT | Vertical M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module sold separately |
| Rear USB Ports | 1 x USB 3.2 Gen 2x2 (Type-C), 2 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen 1 (Type-C), 1 x USB 3.2 Gen 1 Header (2 ports), 2 x USB 2.0 Headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Internal I/O | 1 x Thunderbolt™ (USB4) header, 3 x Addr Gen 2 headers, 1 x Aura RGB header |
| Cooling | 1 x CPU Fan, 1 x AIO Pump, 3 x Chassis Fan headers |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | Intel® Socket LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 up to 5066(OC), OptiMem, Supports XMP |
| Graphics Output | 1 x DisplayPort, 1 x HDMI® port, 1 x VGA port |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots (2 x PCIe 4.0 x4, 1 x PCIe 4.0 x2) & 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & BT | Vertical M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module sold separately |
| Rear USB Ports | 1 x USB 3.2 Gen 2x2 (Type-C), 2 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen 1 (Type-C), 1 x USB 3.2 Gen 1 Header (2 ports), 2 x USB 2.0 Headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Internal I/O | 1 x Thunderbolt™ (USB4) header, 3 x Addr Gen 2 headers, 1 x Aura RGB header |
| Cooling | 1 x CPU Fan, 1 x AIO Pump, 3 x Chassis Fan headers |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch) |
