$30.92
Original: $103.06

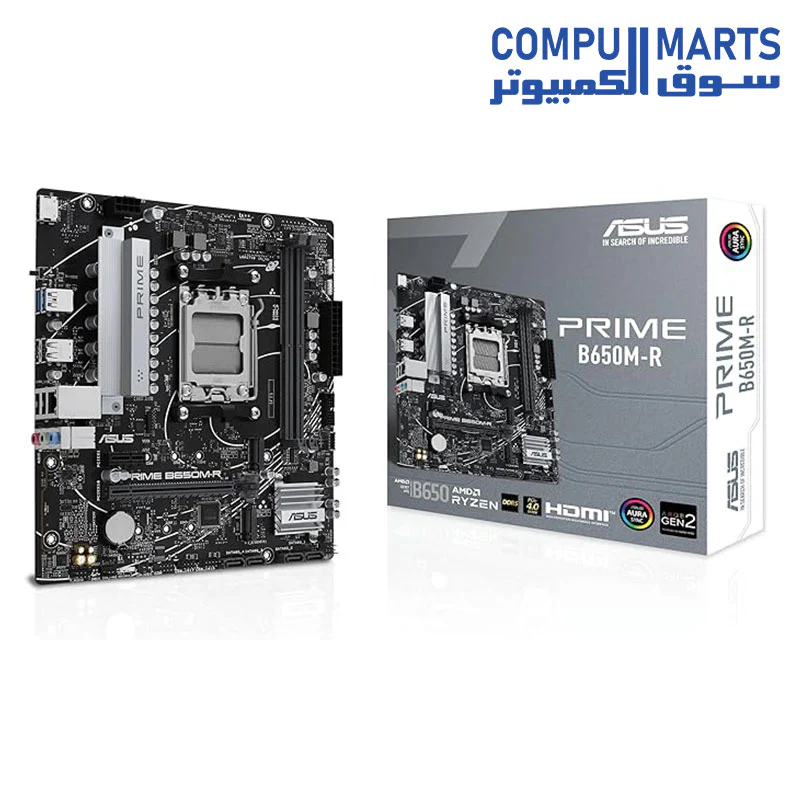

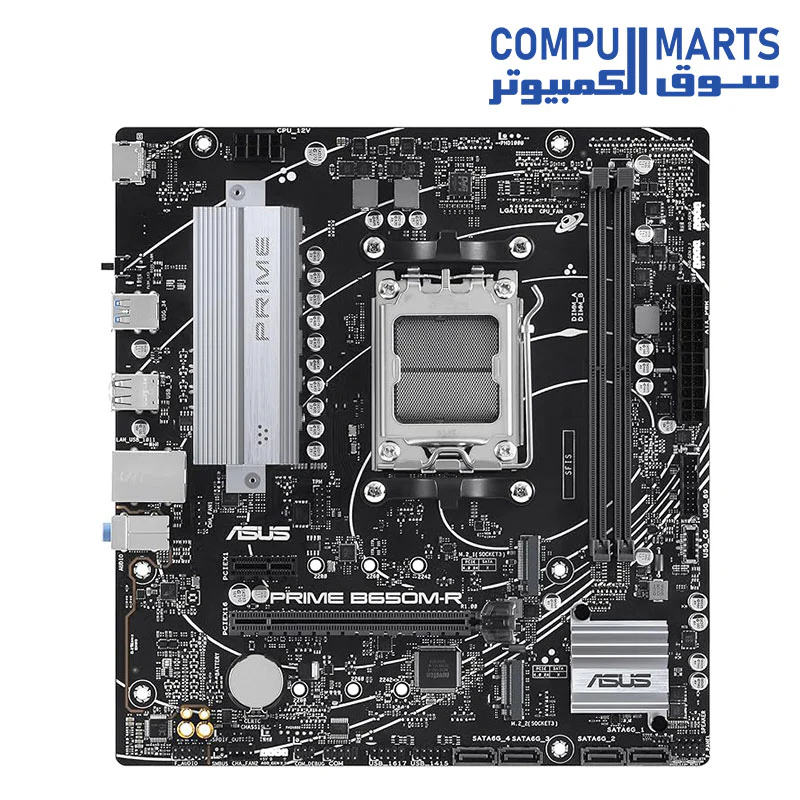

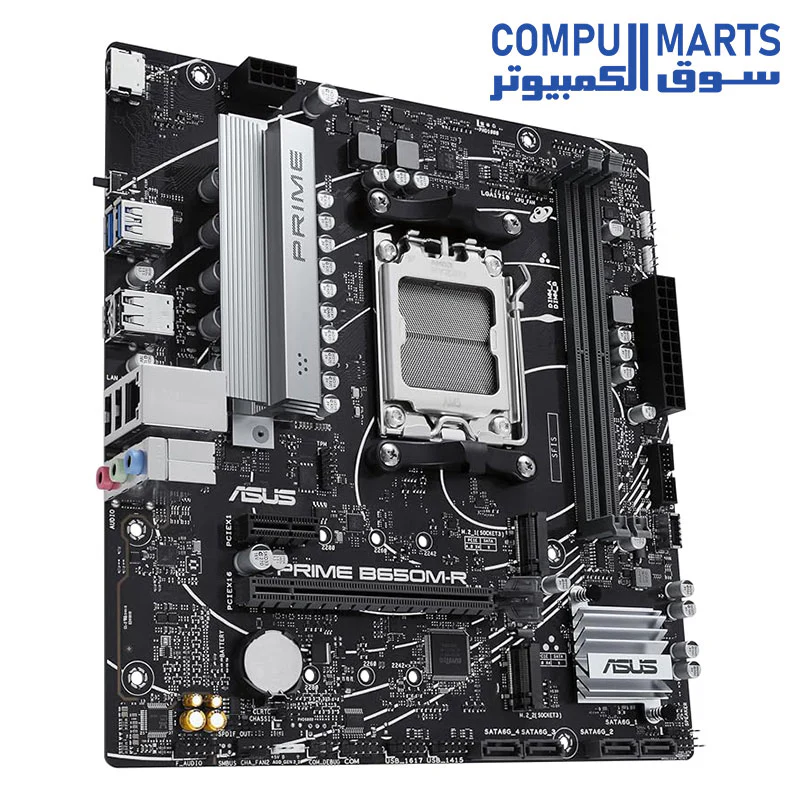

-70%ASUS PRIME B650M-R Motherboard—
$103.06
$30.92The Story
| Category | Specification Details |
|---|---|
| Model | PRIME B650M-R |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 2 x DIMM, Max. 96GB, DDR5 7200+(OC) to 4800, ECC/Non-ECC, Un-buffered, AMD EXPO™ Support, OptiMem II |
| Graphics | 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (x16 mode with Ryzen 9000/7000, x8/x4 with 8000), 1 x PCIe 4.0 x1 slot |
| Storage | 2 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports, Support for RAID 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB (Rear) | 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, Audio Shielding, Premium Capacitors |
| Back Panel I/O | HDMI, 2.5Gb Ethernet, 3 x Audio Jacks, BIOS FlashBack™ button, 6 x USB ports |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-DIMM, Q-LED, Q-Slot), VRM Heatsink, Aura Sync |
| Form Factor | micro-ATX (23.6 cm x 22.1 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | PRIME B650M-R |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 2 x DIMM, Max. 96GB, DDR5 7200+(OC) to 4800, ECC/Non-ECC, Un-buffered, AMD EXPO™ Support, OptiMem II |
| Graphics | 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (x16 mode with Ryzen 9000/7000, x8/x4 with 8000), 1 x PCIe 4.0 x1 slot |
| Storage | 2 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports, Support for RAID 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB (Rear) | 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, Audio Shielding, Premium Capacitors |
| Back Panel I/O | HDMI, 2.5Gb Ethernet, 3 x Audio Jacks, BIOS FlashBack™ button, 6 x USB ports |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-DIMM, Q-LED, Q-Slot), VRM Heatsink, Aura Sync |
| Form Factor | micro-ATX (23.6 cm x 22.1 cm) |
