$104.97

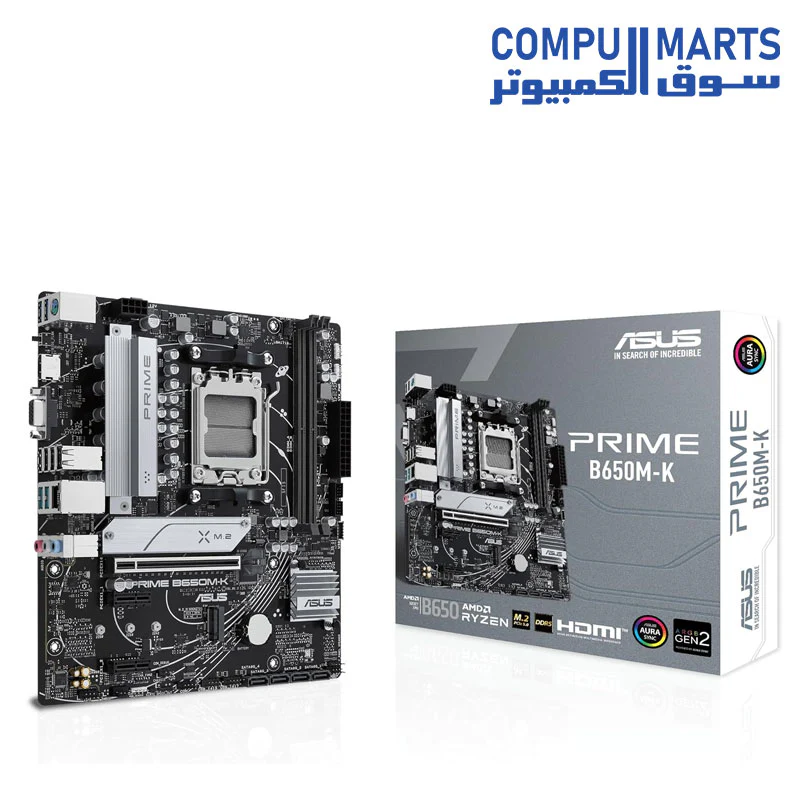

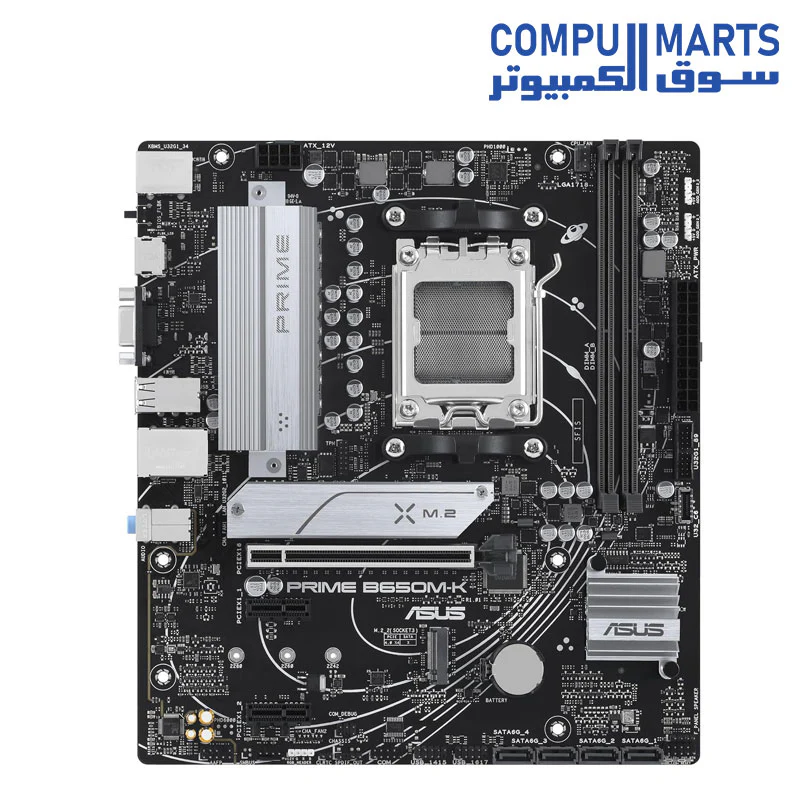

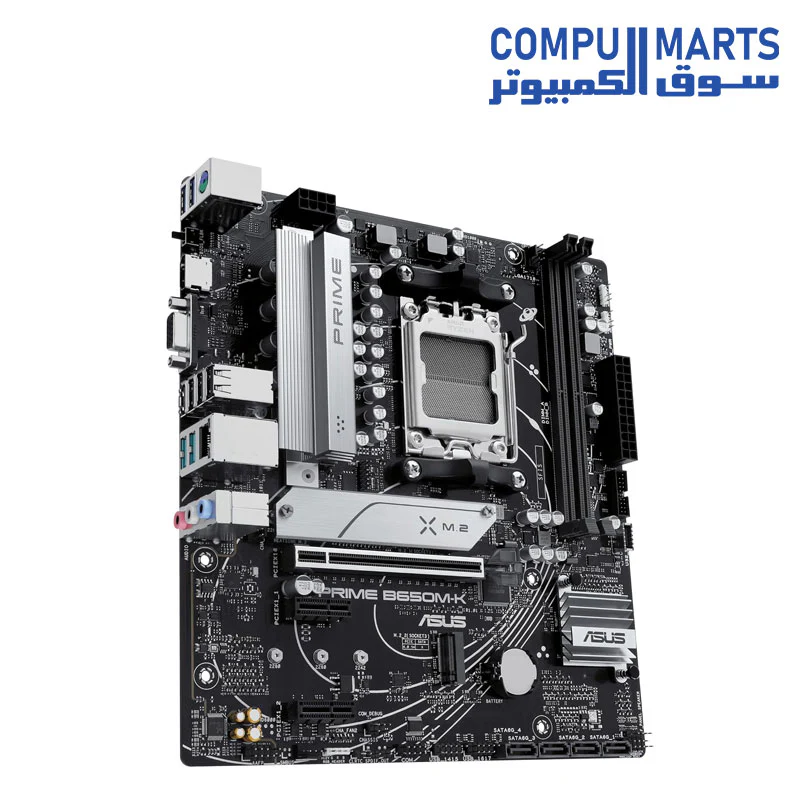

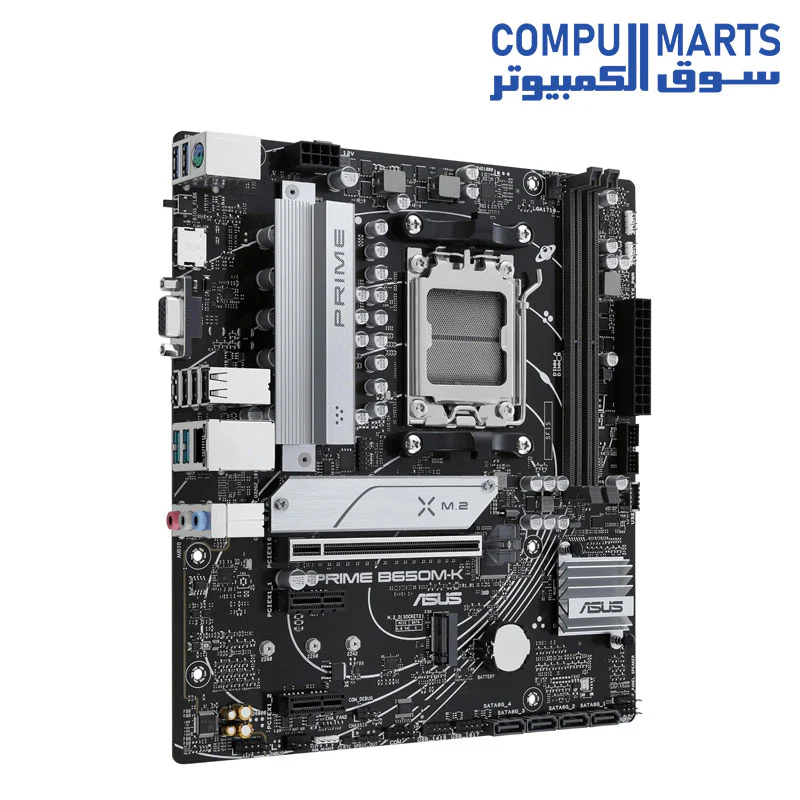

ASUS PRIME B650M-K AMD Ryzen AM5 Micro ATX DDR5 HDMI Motherboard—
$104.97
The Story
| Category | Specification Details |
|---|---|
| Soket AMD AM5 | Siap untuk Prosesor Desktop AMD Ryzen 7000 Series |
| Konektivitas Ultra cepat | M.2 PCIe 5.0, Ethernet Realtek 2.5Gb, port USB 3.2 Gen 2, front USB Type-C 3.2 Gen 1 |
| ASUS OptiMem II | Perutean jejak dan vias yang cermat serta pengoptimalan lapisan dasar untuk menjaga stabilitas sinyal agar overclocking memori lebih baik |
| Pendinginan Komprehensif | Heatsink VRM, heatsink PCH, heatsink M.2, header kipas hybrid, dan Fan Xpert 2+ |
| Pencahayaan Aura Sync RGB | Header Onboard Addressable Gen 2 dan header Aura RGB untuk strip LED RGB agar dapat disinkronkan dengan hardware berkemampuan Aura Sync dengan mudah |
| Model | PRIME B650M-K |
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO), OptiMem II |
| Graphics | 1 x VGA port, 1 x HDMI port |
| Expansion Slots | AMD Ryzen 7000 Series: 1 x PCIe 4.0 x16 slot (supports x16 mode). AMD B650 Chipset: 2 x PCIe 4.0 x1 slots |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). AMD B650 Chipset: 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB Rear | Total 8 ports: 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| USB Front | Total 7 ports: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC. Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192 kHz playback |
| Audio Features | Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x VGA port, 1 x HDMI port, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 2 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ASUS Thermal Solution (M.2 heatsink, VRM heatsink design), ASUS EZ DIY (BIOS FlashBack button, BIOS FlashBack LED), Aura Sync (Aura RGB header, Addressable Gen 2 headers) |
| Software Features | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation), AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw Package for M.2 SSD, 1 x User guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | micro-ATX Form Factor: 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Soket AMD AM5 | Siap untuk Prosesor Desktop AMD Ryzen 7000 Series |
| Konektivitas Ultra cepat | M.2 PCIe 5.0, Ethernet Realtek 2.5Gb, port USB 3.2 Gen 2, front USB Type-C 3.2 Gen 1 |
| ASUS OptiMem II | Perutean jejak dan vias yang cermat serta pengoptimalan lapisan dasar untuk menjaga stabilitas sinyal agar overclocking memori lebih baik |
| Pendinginan Komprehensif | Heatsink VRM, heatsink PCH, heatsink M.2, header kipas hybrid, dan Fan Xpert 2+ |
| Pencahayaan Aura Sync RGB | Header Onboard Addressable Gen 2 dan header Aura RGB untuk strip LED RGB agar dapat disinkronkan dengan hardware berkemampuan Aura Sync dengan mudah |
| Model | PRIME B650M-K |
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO), OptiMem II |
| Graphics | 1 x VGA port, 1 x HDMI port |
| Expansion Slots | AMD Ryzen 7000 Series: 1 x PCIe 4.0 x16 slot (supports x16 mode). AMD B650 Chipset: 2 x PCIe 4.0 x1 slots |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). AMD B650 Chipset: 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB Rear | Total 8 ports: 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| USB Front | Total 7 ports: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC. Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192 kHz playback |
| Audio Features | Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x VGA port, 1 x HDMI port, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 2 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ASUS Thermal Solution (M.2 heatsink, VRM heatsink design), ASUS EZ DIY (BIOS FlashBack button, BIOS FlashBack LED), Aura Sync (Aura RGB header, Addressable Gen 2 headers) |
| Software Features | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation), AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw Package for M.2 SSD, 1 x User guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | micro-ATX Form Factor: 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
