$138.37

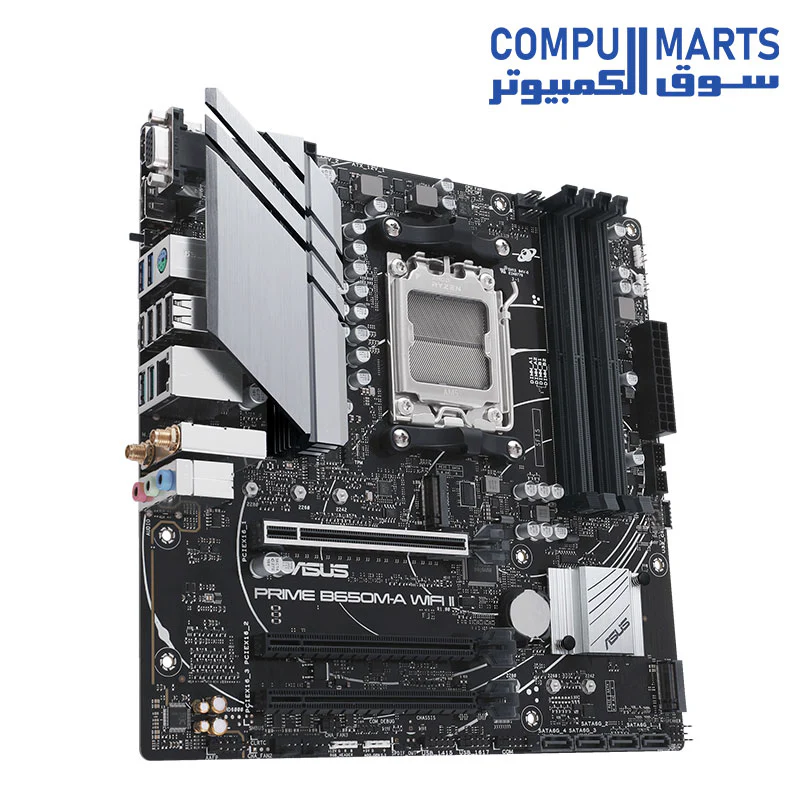

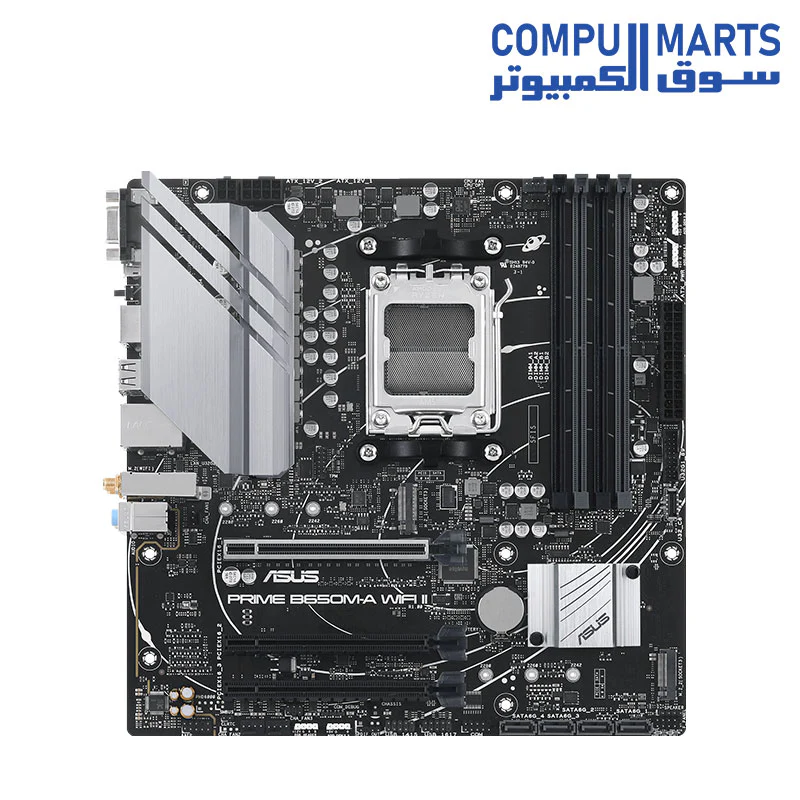

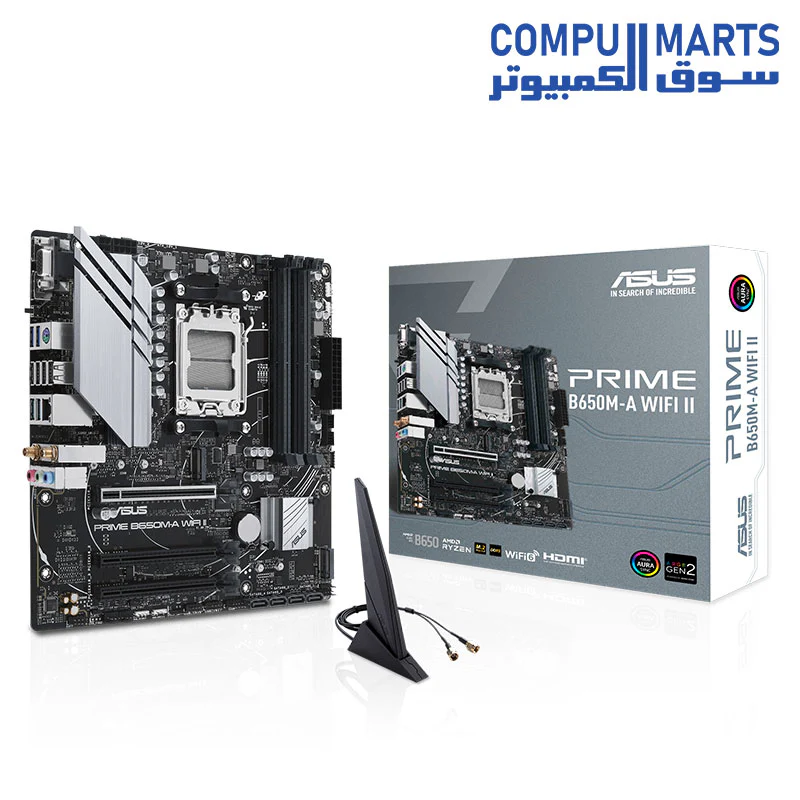

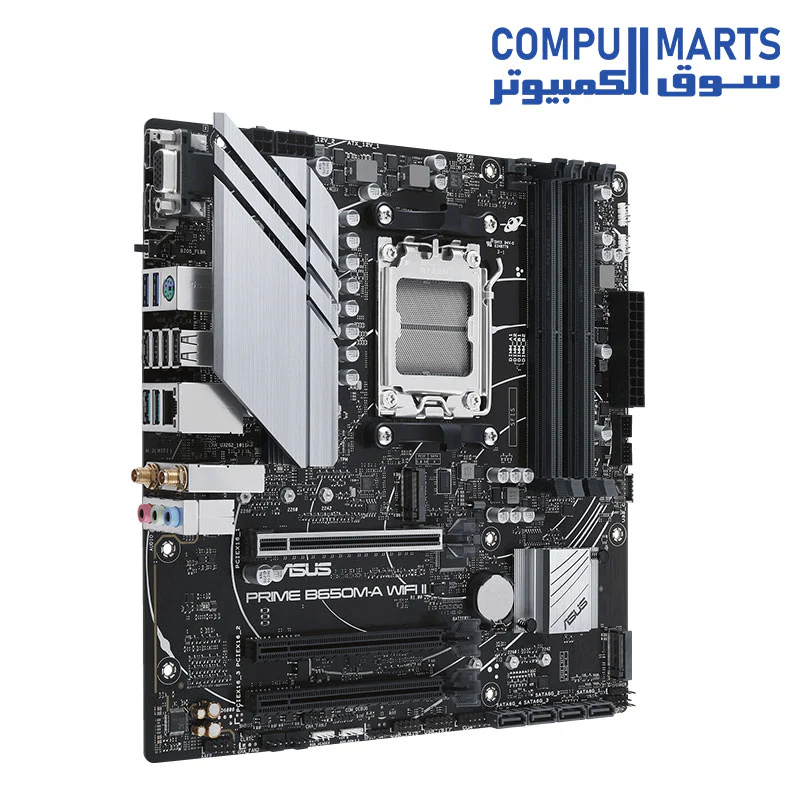

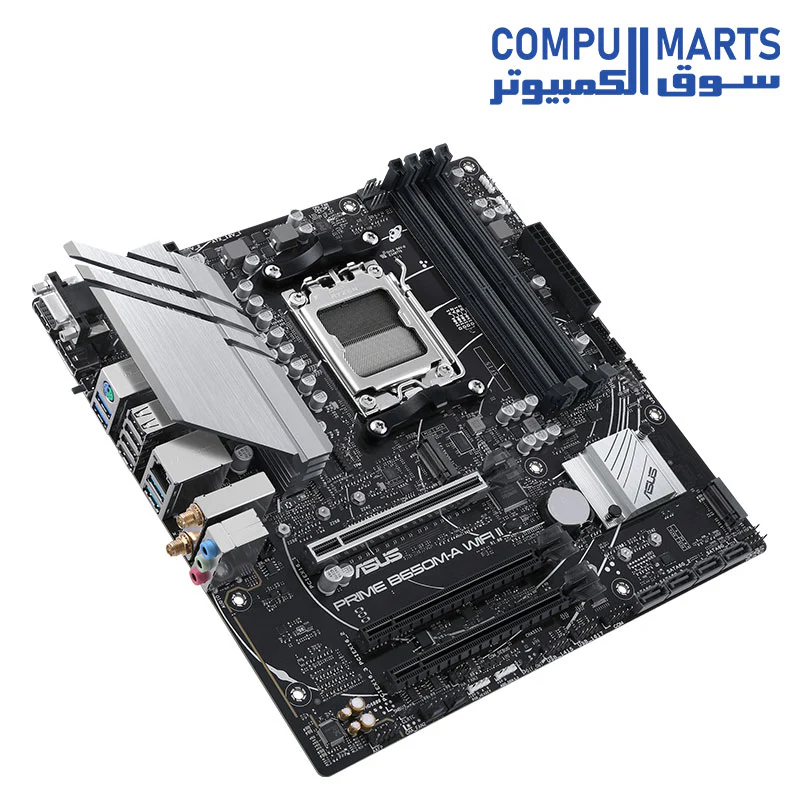

ASUS PRIME B650M-A WIFI II—
$138.37
The Story
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME B650M-A WIFI II |
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC) to 4800 MHz; ECC & Non-ECC Un-buffered; Supports AMD EXPO™ & OptiMem II |
| Graphics Output | 1 x DisplayPort (Max. 8K@60Hz); 1 x HDMI® port (Max. 4K@60Hz); 1 x VGA port |
| Expansion Slots | Ryzen 7000: 1 x PCIe 4.0 x16 (x16 mode); Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4 mode); Chipset: 2 x PCIe 4.0 x16 (x1 mode) |
| Storage | M.2_1 (CPU): PCIe 5.0 x4 (Ryzen 7000) / PCIe 4.0 x4 (Ryzen 8000); M.2_2 (Chipset): PCIe 4.0 x4; 4 x SATA 6Gb/s; RAID 0/1/10 |
| Networking | Realtek 2.5Gb Ethernet; Wi-Fi 6 (802.11ax); Bluetooth® v5.2 |

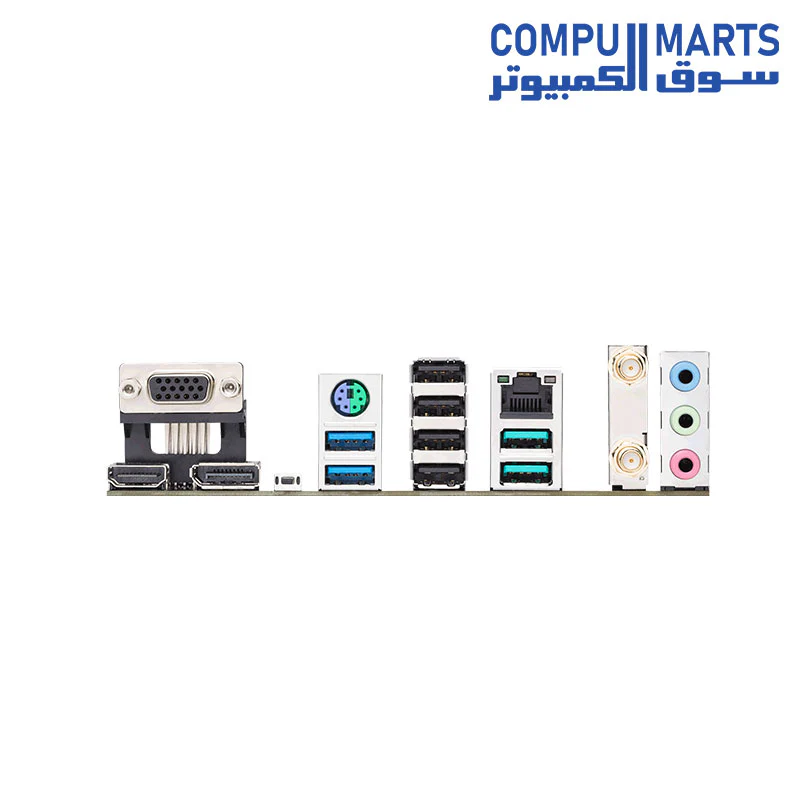

| USB (Rear) | 2 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 (Type-C®), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC; Audio Shielding; Premium capacitors; Dedicated PCB layers |
| Special Features | ASUS 5X PROTECTION III; Q-Design (Q-DIMM, Q-LED Core, Q-Slot); BIOS FlashBack™; Aura Sync RGB |
| Internal I/O | 1 x CPU Fan, 1 x CPU OPT, 3 x Chassis Fan headers; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x COM Port header |
| Form Factor | mATX Form Factor (24.4 cm x 24.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME B650M-A WIFI II |
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC) to 4800 MHz; ECC & Non-ECC Un-buffered; Supports AMD EXPO™ & OptiMem II |
| Graphics Output | 1 x DisplayPort (Max. 8K@60Hz); 1 x HDMI® port (Max. 4K@60Hz); 1 x VGA port |
| Expansion Slots | Ryzen 7000: 1 x PCIe 4.0 x16 (x16 mode); Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4 mode); Chipset: 2 x PCIe 4.0 x16 (x1 mode) |
| Storage | M.2_1 (CPU): PCIe 5.0 x4 (Ryzen 7000) / PCIe 4.0 x4 (Ryzen 8000); M.2_2 (Chipset): PCIe 4.0 x4; 4 x SATA 6Gb/s; RAID 0/1/10 |
| Networking | Realtek 2.5Gb Ethernet; Wi-Fi 6 (802.11ax); Bluetooth® v5.2 |
| USB (Rear) | 2 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 (Type-C®), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC; Audio Shielding; Premium capacitors; Dedicated PCB layers |
| Special Features | ASUS 5X PROTECTION III; Q-Design (Q-DIMM, Q-LED Core, Q-Slot); BIOS FlashBack™; Aura Sync RGB |
| Internal I/O | 1 x CPU Fan, 1 x CPU OPT, 3 x Chassis Fan headers; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x COM Port header |
| Form Factor | mATX Form Factor (24.4 cm x 24.4 cm) |
