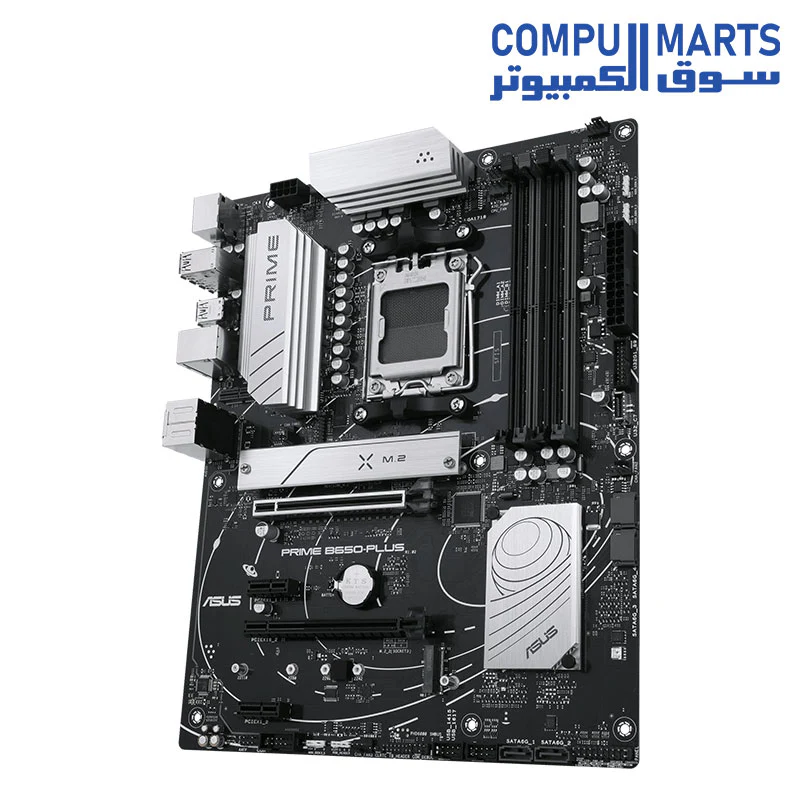

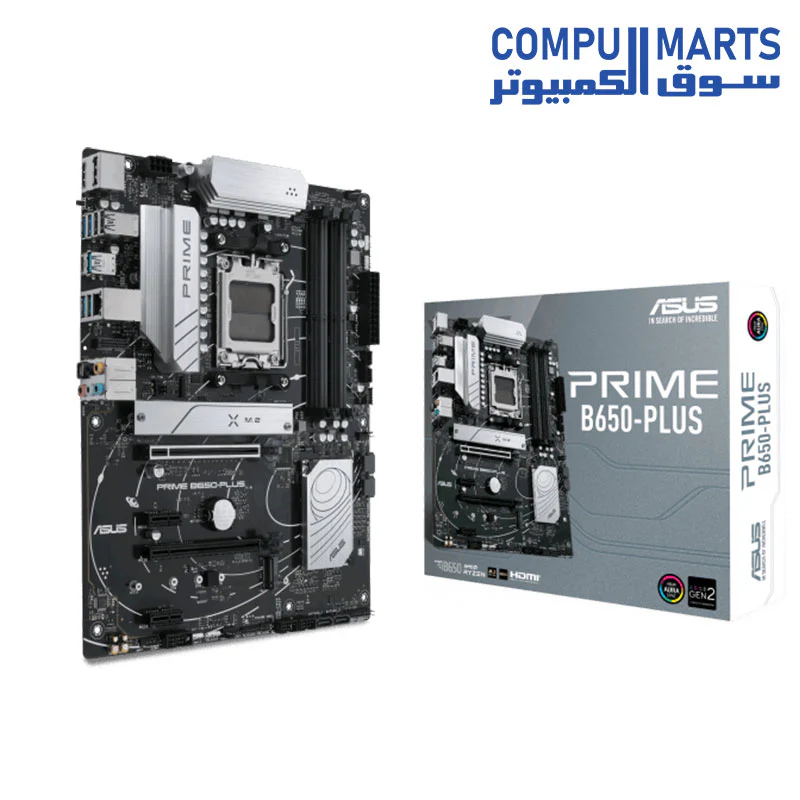

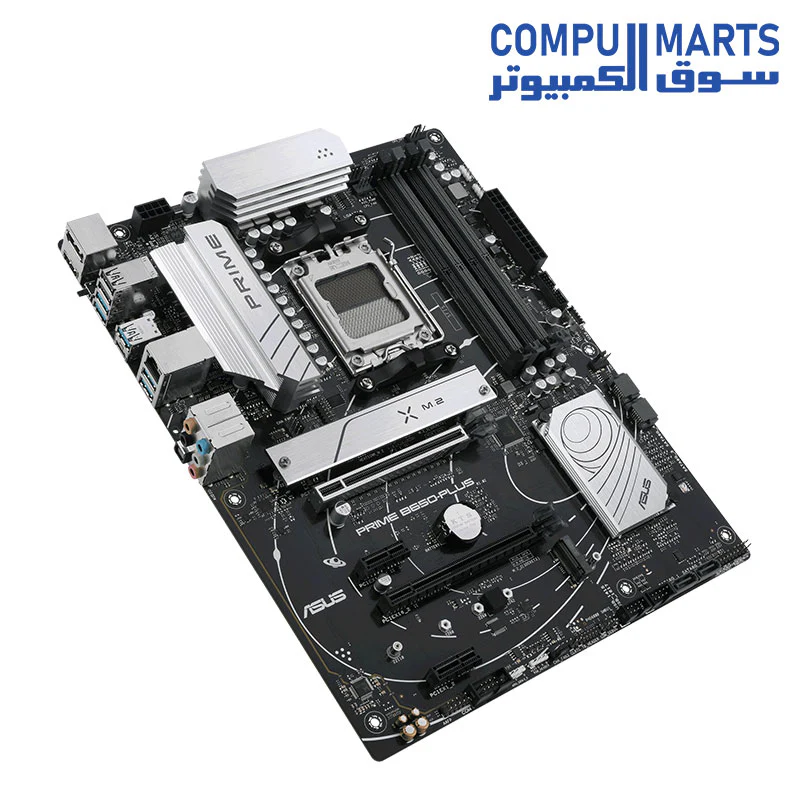

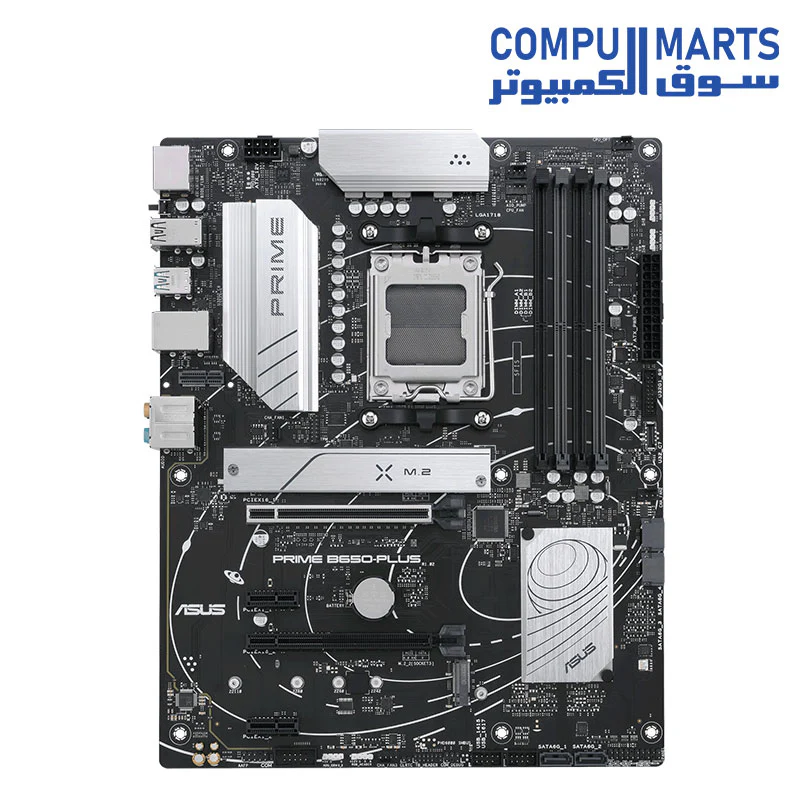

-70%ASUS PRIME B650-PLUS AM5 ATX Motherboard (DDR5)—
$171.77
$51.53The Story
| Category | Specification Details |
|---|---|
| Model | PRIME B650-PLUS |
| CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II |
| Graphics | 1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4); 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series: 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD B650 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x1 slots |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series: M.2_1 slot (PCIe 5.0 x4), M.2_2 slot (PCIe 4.0 x4); AMD Ryzen 8000 Series: M.2_1 slot (PCIe 4.0 x4), M.2_2 slot (PCIe 4.0 x4/x2); AMD B650 Chipset: 4 x SATA 6Gb/s ports; AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Vertical M.2 slot only (Key E, PCIe); Wi-Fi module is sold separately |
| USB | Rear USB (Total 8 ports): 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports): 1 x USB 3.2 Gen 1 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header (supports 2 additional ports), 2 x USB 2.0 headers (support 4 additional ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers |
| Back Panel I/O Ports | 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Vertical M.2 slot (Key E); 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power; 1 x 8-pin +12V Power; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (Type-C); 1 x USB 3.2 Gen 1 header; 2 x USB 2.0 headers; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header; 1 x Thunderbolt (USB4) header |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O); ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot); ASUS Thermal Solution (Flexible M.2 heatsink, VRM heatsink design); ASUS EZ DIY (BIOS FlashBack, ProCool); Aura Sync |
| Software Features | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving); AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner); ASUS CPU-Z; Norton Anti-virus (Free Trial); WinRAR; UEFI BIOS |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS; ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables; 1 x I/O Shield; 1 x M.2 Rubber Package; 1 x Screw package for M.2 SSD; 1 x User guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
