ASUS Prime B460-PLUS LGA 1200 (Intel 10th Gen) ATX Motherboard
HomeStore

ASUS Prime B460-PLUS LGA 1200 (Intel 10th Gen) ATX Motherboard

ASUS Prime B460-PLUS LGA 1200 (Intel 10th Gen) ATX Motherboard

$38.15
ASUS Prime B460-PLUS LGA 1200 (Intel 10th Gen) ATX Motherboard—
$38.15

The Story

ASUS Prime B460-PLUS LGA 1200 (Intel 10th Gen) ATX Motherboard

  • Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors

  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.

  • Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.

  • 5X Protection III: Multiple hardware safeguards for all-round protection.

  • Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B460 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.




Cool to the Core

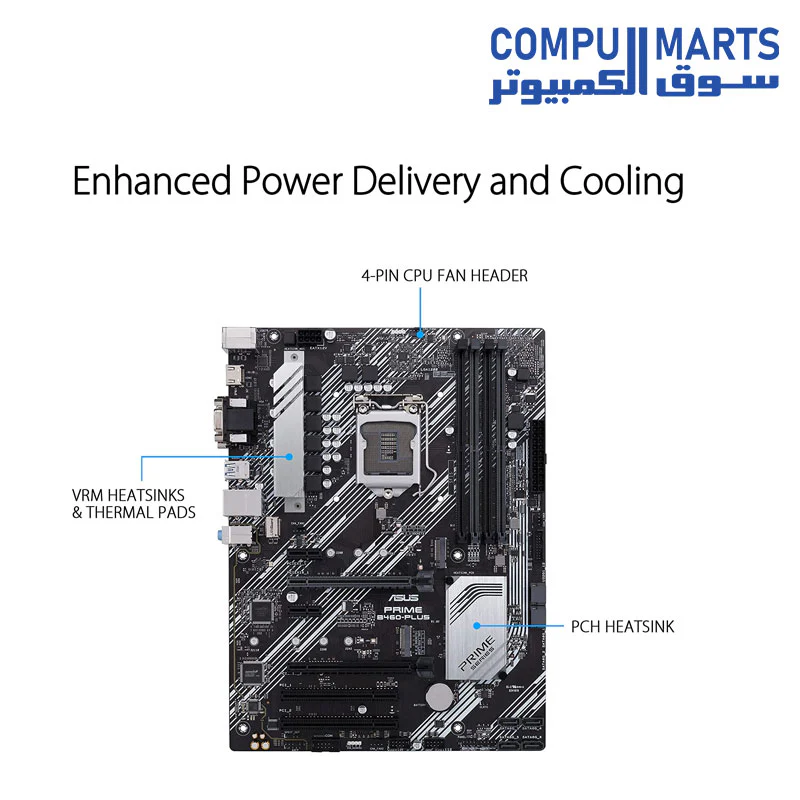

Prime B460 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.



Cooler by Design

Prime B460 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.





ASUS OptiMem benefits:

  • Improved memory stability and compatibility

  • Allows lower memory latencies at equivalent voltages

  • Improved memory frequency margin



Model : PRIME B460-PLUS


CPU

Intel Socket 1200 for 10 TH Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset : Intel B460

Memory :

Intel B460 Chipset

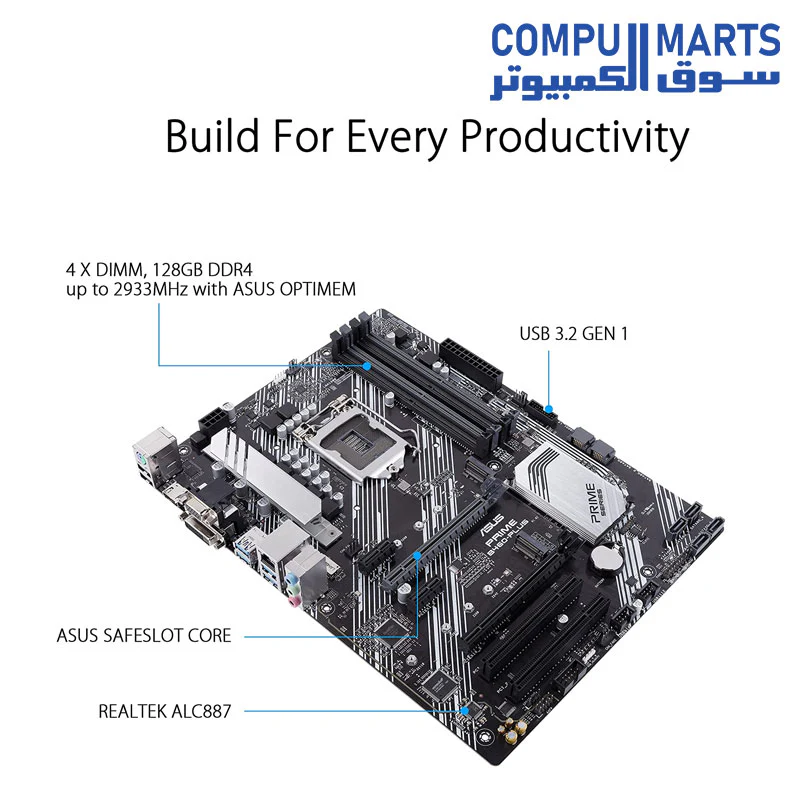

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem

Graphic :

Integrated Graphics Processor
1  x D-Sub
1  x HDMI 1.4b
1  x DVI-D 1.4
Graphics specifications may vary between CPU types.

Multi-GPU Support : Supports AMD 2-Way CrossFireX Technology

Expansion Slots :

Intel 10th Gen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel B460 Chipset
1 x PCIe 3.0/2.0 x16 (x4 mode)
2 x PCIe 3.0/2.0 x1
2 x PCI


Storage :

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready

LAN:

Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

Audio:

Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
 Choose the chassis with HD audio module in front panel to support channel audio output.

USB Ports:

Rear USB Port ( Total 6  )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6  )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)

 Software Features :

ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
AI Charger
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

ASUS Special Features :

ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LAN Guard
- ASUS Overvoltage Protection
- ASUS Safe slot core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Lighting Control
- Standard RGB headers

Back I/O Ports :

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)


Internal I/O Ports :

1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AAFP connector

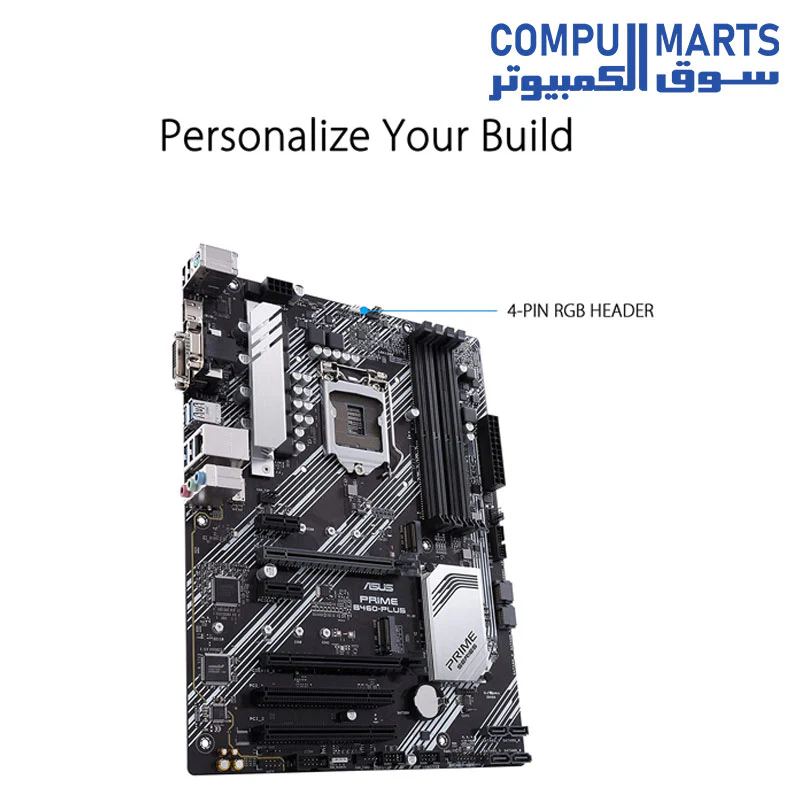

2 x Lighting Control RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header


Accessories

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

BIOS : 128 Mb Flash ROM, UEFI AMI BIOS

Manageability : WOL by PME, PXE

Operating System : Windows 10 64-bit

Form Factor :

ATX Form Factor
12  inch x 9.0  inch ( 30.5  cm x 22.86  cm )

Note

M.2 shares bandwidth with SATA6G . When M.2  runs SATA mode, SATA6G  will be disabled.
.NVME RAID is supported with M.2 and PCIEX16 .PCIe x16_1s device needs to use Intel brand.

ASUS Prime B460-PLUS LGA 1200 (Intel 10th Gen) ATX Motherboard - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ASUS Prime B460-PLUS LGA 1200 (Intel 10th Gen) ATX Motherboard - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ASUS Prime B460-PLUS LGA 1200 (Intel 10th Gen) ATX Motherboard - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

ASUS Prime B460-PLUS LGA 1200 (Intel 10th Gen) ATX Motherboard

  • Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors

  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.

  • Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.

  • 5X Protection III: Multiple hardware safeguards for all-round protection.

  • Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B460 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.




Cool to the Core

Prime B460 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.



Cooler by Design

Prime B460 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.





ASUS OptiMem benefits:

  • Improved memory stability and compatibility

  • Allows lower memory latencies at equivalent voltages

  • Improved memory frequency margin



Model : PRIME B460-PLUS


CPU

Intel Socket 1200 for 10 TH Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset : Intel B460

Memory :

Intel B460 Chipset
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem

Graphic :

Integrated Graphics Processor
1  x D-Sub
1  x HDMI 1.4b
1  x DVI-D 1.4
Graphics specifications may vary between CPU types.

Multi-GPU Support : Supports AMD 2-Way CrossFireX Technology

Expansion Slots :

Intel 10th Gen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel B460 Chipset
1 x PCIe 3.0/2.0 x16 (x4 mode)
2 x PCIe 3.0/2.0 x1
2 x PCI


Storage :

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready

LAN:

Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

Audio:

Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
 Choose the chassis with HD audio module in front panel to support channel audio output.

USB Ports:

Rear USB Port ( Total 6  )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6  )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)

 Software Features :

ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
AI Charger
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

ASUS Special Features :

ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LAN Guard
- ASUS Overvoltage Protection
- ASUS Safe slot core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Lighting Control
- Standard RGB headers

Back I/O Ports :

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)


Internal I/O Ports :

1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AAFP connector
2 x Lighting Control RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header


Accessories

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

BIOS : 128 Mb Flash ROM, UEFI AMI BIOS

Manageability : WOL by PME, PXE

Operating System : Windows 10 64-bit

Form Factor :

ATX Form Factor
12  inch x 9.0  inch ( 30.5  cm x 22.86  cm )

Note

M.2 shares bandwidth with SATA6G . When M.2  runs SATA mode, SATA6G  will be disabled.
.NVME RAID is supported with M.2 and PCIEX16 .PCIe x16_1s device needs to use Intel brand.

You may also like

-70%
Thumbnail 1Thumbnail 2

ASUS ROG Strix B550-F Gaming AMD AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Gaming Motherboard (PCIe 4.0, 2.5Gb LAN, BIOS Flashback, HDMI 2.1, Addressable Gen 2 RGB Header and Aura Sync)

$150.78

$45.23

-70%
Thumbnail 1Thumbnail 2

ASUS TUF Gaming B450M-PLUS II AMD AM4

$91.17

$27.35

-70%
Thumbnail 1Thumbnail 2

ASUS TUF Gaming B560M-PLUS WiFi LGA1200 (Intel11th/10th Gen) Micro ATX Gaming Motherboard (PCIe 4.0, 2X M.2 Slots,8+1 Power Stages, 2.5Gb LAN, WiFi 6, USB 3.2 Type-C, Thunderbolt 4 Support)

$133.58

$40.07

-70%
Thumbnail 1Thumbnail 2

ASUS ROG STRIX B560-G GAMING WIFI Intel B560 LGA 1200 micro ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet

$152.69

$45.81

-70%
Thumbnail 1Thumbnail 2

Motherboard Asus PRIME H510M-K Intel H510 (LGA 1200) micro ATX with PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM header, and RGB header

$66.80

$20.04

Thumbnail 1Thumbnail 2

Motherboard ASUS PRIME H510M-E Intel H510 (LGA 1200) micro ATX with PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type A, SATA 6Gbps, COM header, RGB header

$66.78

-70%
Thumbnail 1Thumbnail 2

ASUS TUF GAMING H570-PRO WIFI Intel H570 LGA 1200 ATX Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Core processors

$133.60

$40.08

Thumbnail 1Thumbnail 2

ASUS ROG Strix 750G Fully Modular 80 Plus Gold 750W ATX Power Supply with 0dB Axial Tech Fan

$148.85

-70%
Thumbnail 1Thumbnail 2

ASUS ROG Strix 850G - 850W Gold PSU, Power Supply (ROG heatsinks, Axial-tech Fan Design, Dual Ball Fan Bearings, 0dB Technology, 80 Plus Gold Certification, Fully Modular Cables

$188.93

$56.68

-70%
Thumbnail 1Thumbnail 2

ASUS Dual GeForce RTX 3050 OC Edition 8GB GRAPHIC CARD

$224.26

$67.28

Thumbnail 1Thumbnail 2

ASUS TUF Gaming GeForce GTX 1650-O4G-GAMING Graphic Card

$152.69

-70%
Thumbnail 1Thumbnail 2

ASUS Phoenix GeForce RTX 3060 12GB GDDR6

$276.75

$83.02
