ASUS Dual GeForce RTX 4070 SUPER 12GB GDDR6X

ASUS Dual GeForce RTX 4070 SUPER 12GB GDDR6X

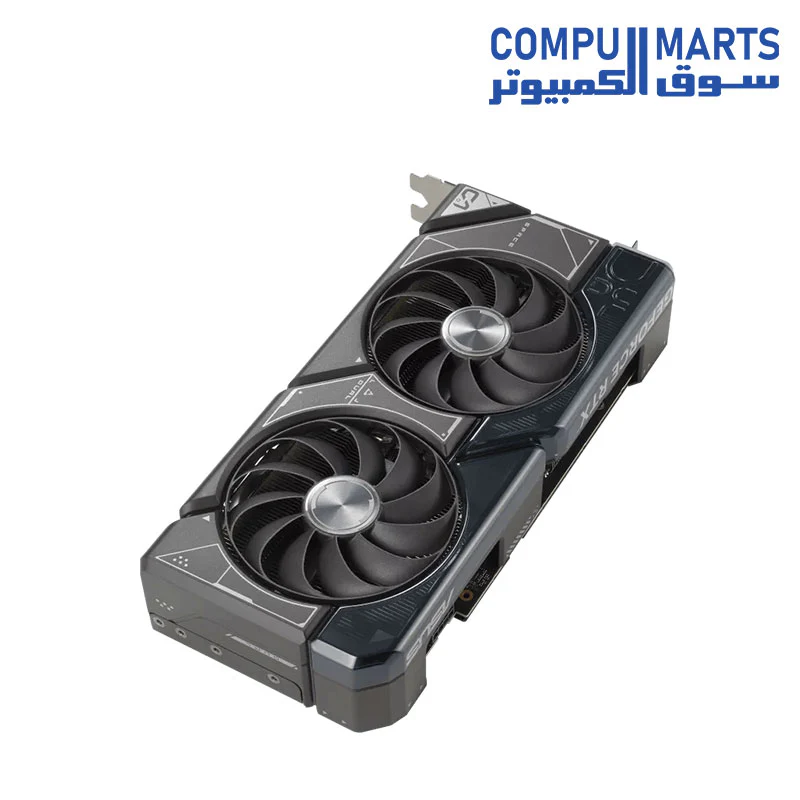

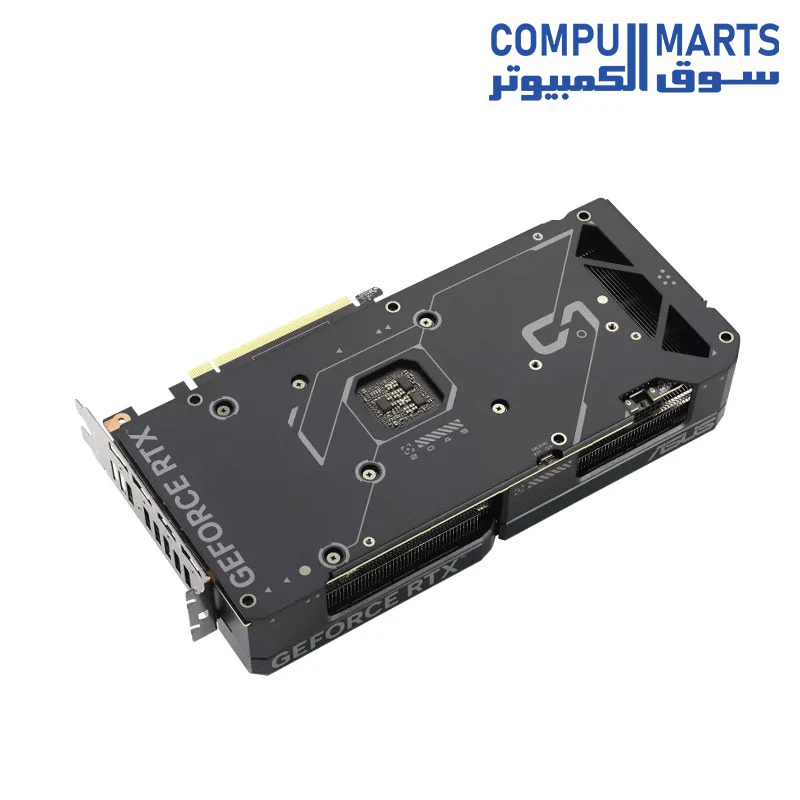

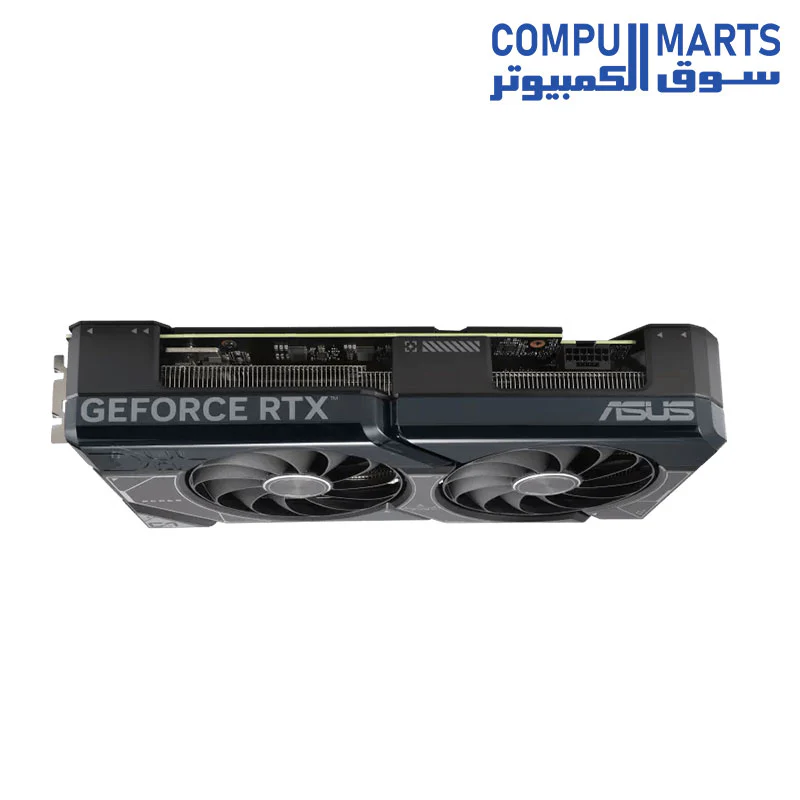

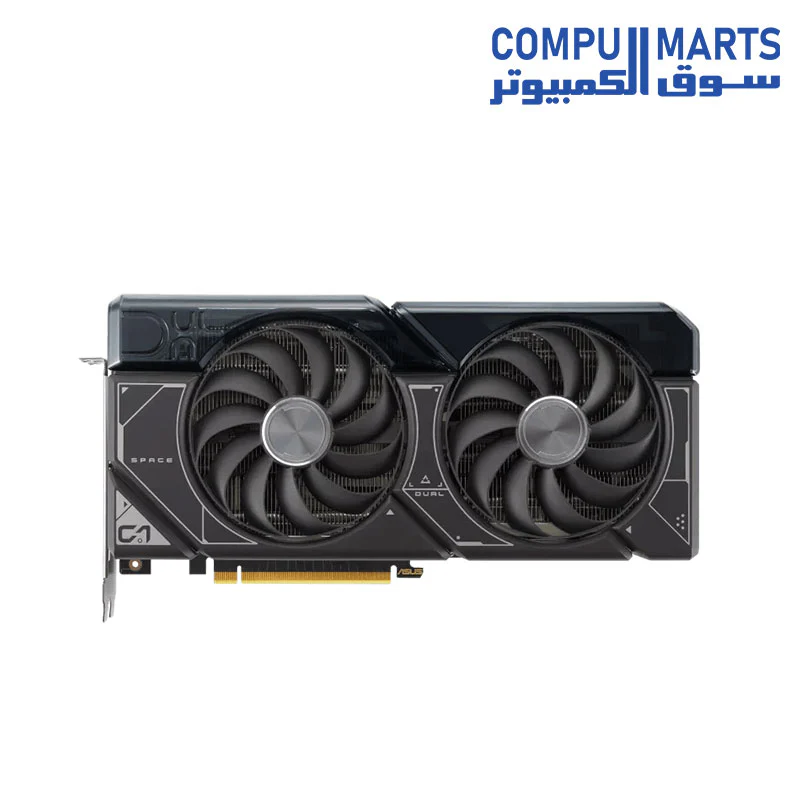

ASUS Dual GeForce RTX 4070 SUPER 12GB GDDR6X with two powerful Axial-tech fans and a 2.56-slot design for broad compatibility

• Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing

• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

• 3rd Generation RT Cores: Up to 2x ray tracing performance

• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure

• A 2.56-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis

• 0dB technology lets you enjoy light gaming in relative silence

• Dual ball fan bearings can last up to twice as long as sleeve bearing designs

• Auto-Extreme precision automated manufacturing for higher reliability

2x Fans. 2x Fun.

ASUS Dual GeForce RTX™ 4070 SUPER fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 26.7 cm long, 2.56-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

• New Streaming Multiprocessors

  Up to 2X performance and power efficiency

• Fourth-Gen Tensor Cores

  Up to 4X performance with DLSS 3
  vs. brute-force rendering

• Third-Gen RT Cores

  Up to 2X ray tracing performance

Axial-tech Fan Design

Better, faster, stronger

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

Auto-Extreme Technology

Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Model

DUAL-RTX4070S-12G

Graphic Engine

NVIDIA GeForce RTX 4070 SUPER

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

12GB GDDR6X

Engine Clock

OC mode : 2505 MHz (Boost Clock)
Default mode : 2475 MHz (Boost Clock)

CUDA Core

7168

Memory Speed

21 Gbps

Memory Interface

192-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Collection Card
1 x Speedsetup Manual
1 x Thank you card
1 x Adapter cable (1 to 2)

Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

267.01 x 133.94 x 51.13 mm
10.51 x 5.27 x 2.01 inch

Recommended PSU

750W

Power Connectors

1 x 16-pin

Slot
