$175.59

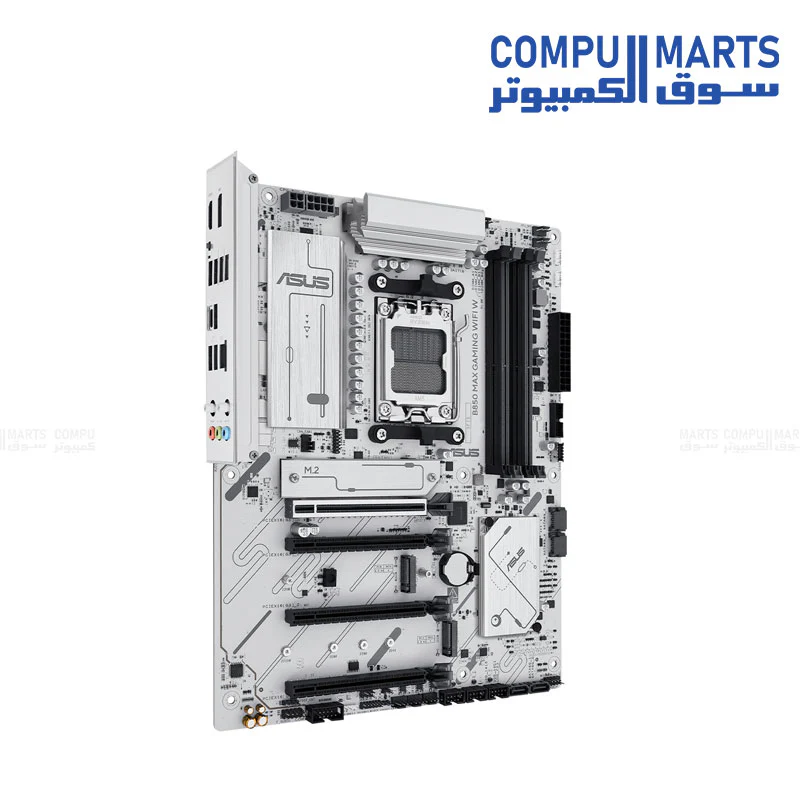

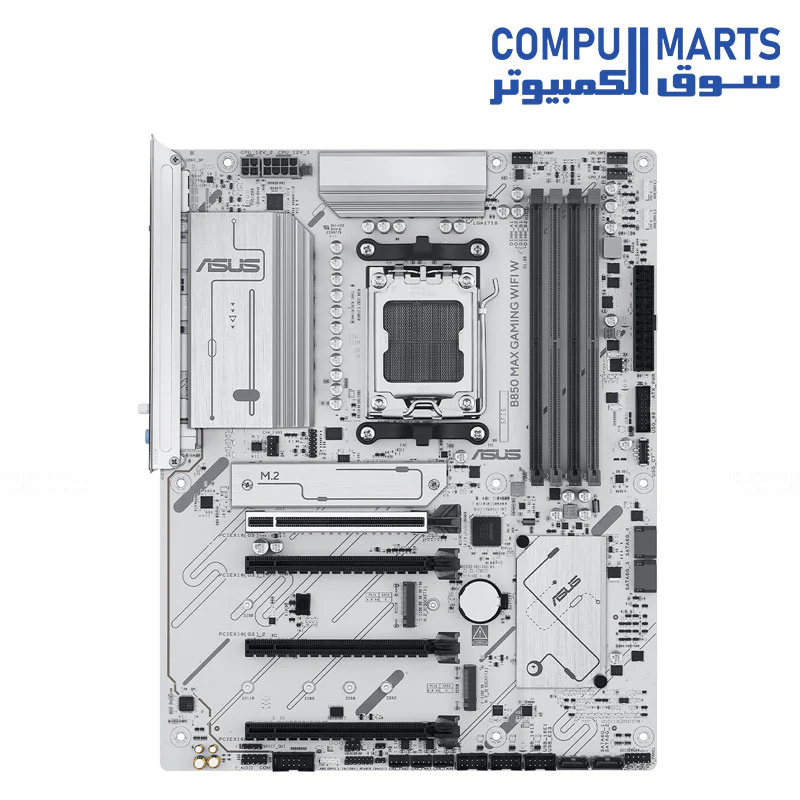

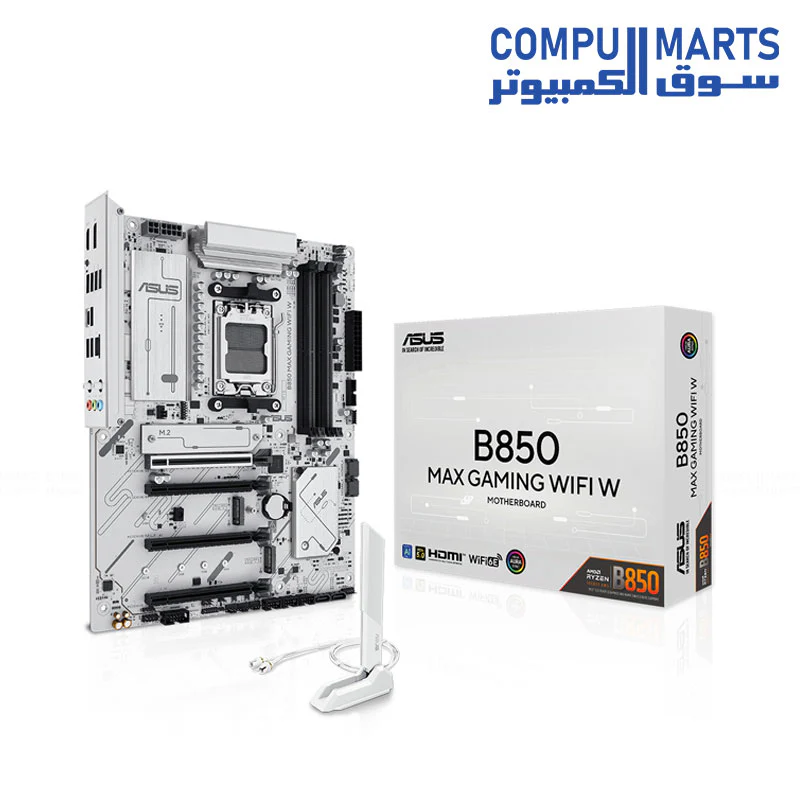

ASUS B850 MAX GAMING WIFI W Motherboard – ATX- AM5-DDR5 -PCIe 5.0 -Wi-Fi 6E-USB-C- 2.5Gb LAN—
$175.59
The Story
| Category | Specification Details |
|---|---|
| Model | B850 MAX GAMING WIFI W |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM, Max. 256GB, DDR5 8000+MT/s (OC), ECC/Non-ECC, AMD EXPO™ & ASUS AEMP |
| Graphics Output | 1 x DisplayPort, 1 x HDMI® port |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x16 (Ryzen 8000), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x16 (x1 mode) |
| Storage | 3 x M.2 slots, 4 x SATA 6Gb/s ports (RAID 0/1/10 supported) |
| Networking | Realtek 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & BT | Wi-Fi 6E (2.4/5/6GHz), Bluetooth® v5.3 |

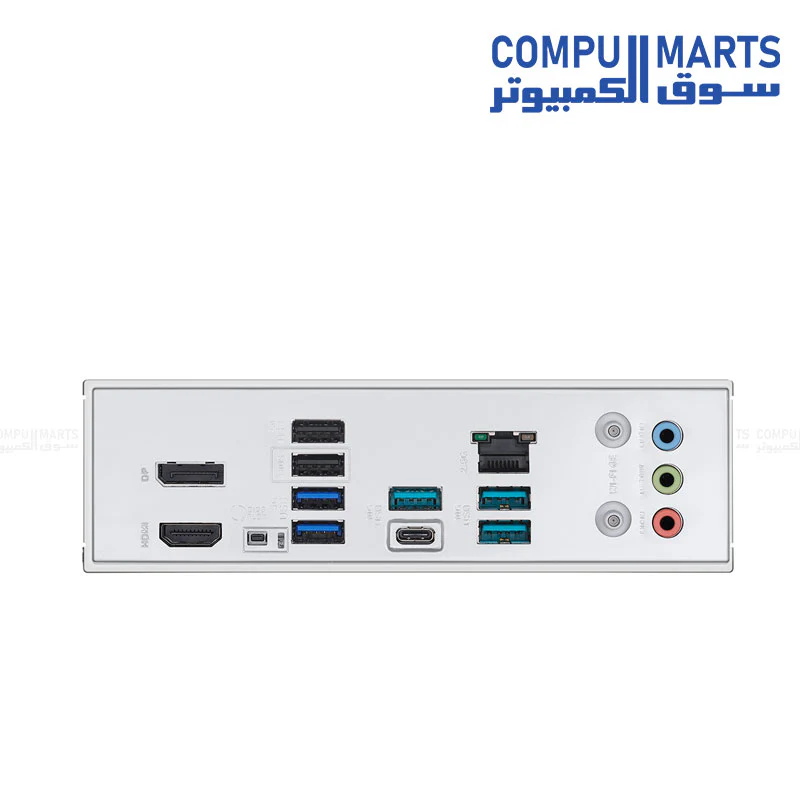

| Rear USB | 1 x USB 10Gbps (Type-C), 3 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 2 x USB 2.0 |
| Front USB | 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround Sound, 24-Bit/192 kHz playback, Premium Audio Caps & Shielding |
| Internal I/O | 1 x Thunderbolt™ (USB4) header, 3 x ARGB Gen 2, 1 x COM Port, 1 x BIOS FlashBack™ |
| Cooling | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan headers |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-Antenna, Q-LED, Q-Slot), VRM & M.2 Heatsinks |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | B850 MAX GAMING WIFI W |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM, Max. 256GB, DDR5 8000+MT/s (OC), ECC/Non-ECC, AMD EXPO™ & ASUS AEMP |
| Graphics Output | 1 x DisplayPort, 1 x HDMI® port |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x16 (Ryzen 8000), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x16 (x1 mode) |
| Storage | 3 x M.2 slots, 4 x SATA 6Gb/s ports (RAID 0/1/10 supported) |
| Networking | Realtek 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & BT | Wi-Fi 6E (2.4/5/6GHz), Bluetooth® v5.3 |
| Rear USB | 1 x USB 10Gbps (Type-C), 3 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 2 x USB 2.0 |
| Front USB | 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround Sound, 24-Bit/192 kHz playback, Premium Audio Caps & Shielding |
| Internal I/O | 1 x Thunderbolt™ (USB4) header, 3 x ARGB Gen 2, 1 x COM Port, 1 x BIOS FlashBack™ |
| Cooling | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan headers |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-Antenna, Q-LED, Q-Slot), VRM & M.2 Heatsinks |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
