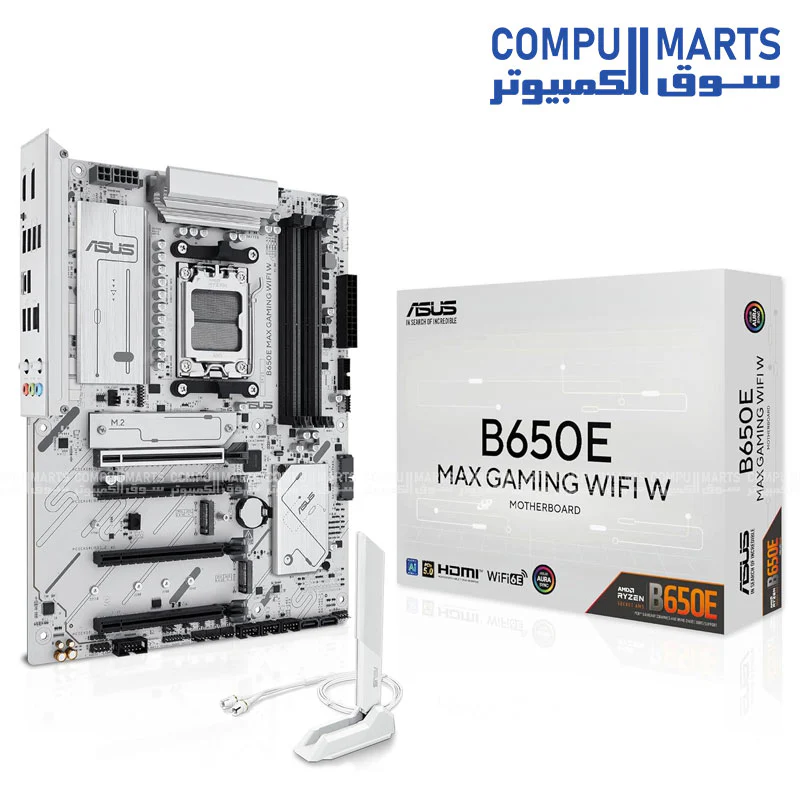

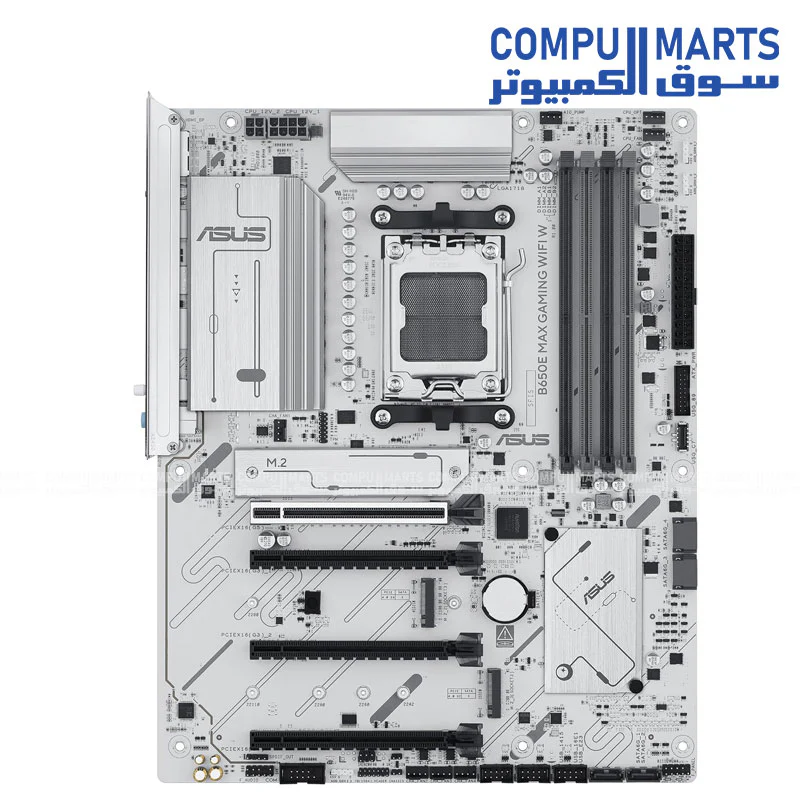

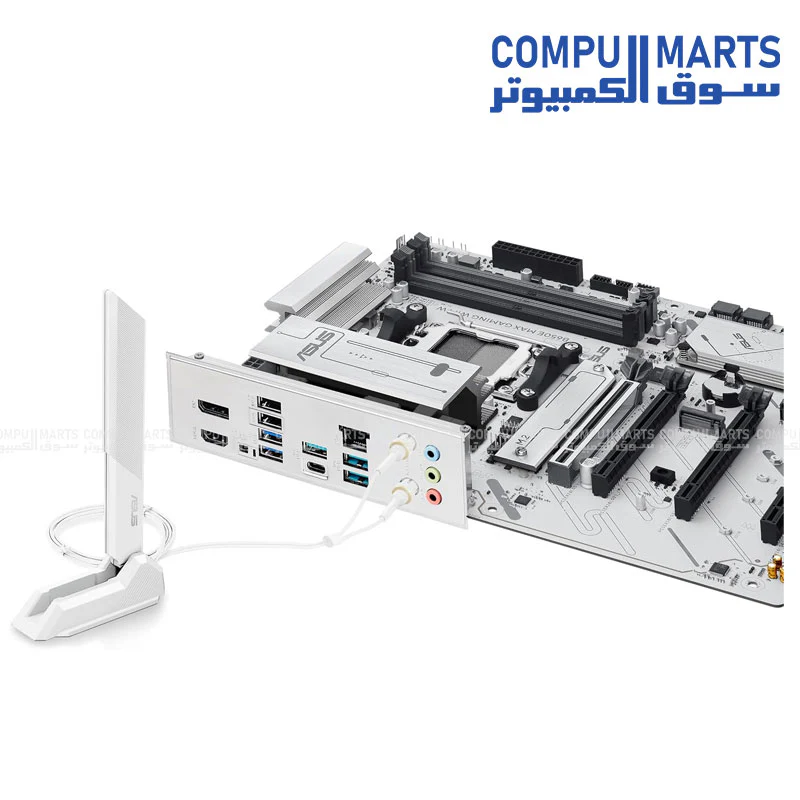

ASUS B650E MAX Gaming WiFi W – AMD B650 AM5 ATX Motherboard, White PCB, DDR5, PCIe 5.0, 3X M.2, Wi-Fi 6E, 2.5Gb LAN, USB 10Gbps Type-C, DisplayPort, HDMI, BIOS Flashback, Aura Sync, Advanced AI PC
ASUS B650E MAX Gaming WiFi W – AMD B650 AM5 ATX Motherboard, White PCB, DDR5, PCIe 5.0, 3X M.2, Wi-Fi 6E, 2.5Gb LAN, USB 10Gbps Type-C, DisplayPort, HDMI, BIOS Flashback, Aura Sync, Advanced AI PC
$167.96
ASUS B650E MAX Gaming WiFi W – AMD B650 AM5 ATX Motherboard, White PCB, DDR5, PCIe 5.0, 3X M.2, Wi-Fi 6E, 2.5Gb LAN, USB 10Gbps Type-C, DisplayPort, HDMI, BIOS Flashback, Aura Sync, Advanced AI PC—
$167.96
The Story
| Category | Specification Details |
|---|---|
| Model | B650E MAX GAMING WIFI W (White PCB) |
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 256GB, DDR5 8000+(OC); ECC and Non-ECC Un-buffered; Supports AMD EXPO™ & ASUS Enhanced Memory Profile (AEMP) |
| Graphics | 1 x DisplayPort (Max. 8K@30Hz); 1 x HDMI™ port (Max. 4K@60Hz) |
| Expansion Slots | Ryzen 9000/7000: 1 x PCIe 5.0 x16; Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4 mode); Chipset: 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x16 (x1 mode) |
| Storage | 3 x M.2 slots (M.2_1 PCIe 5.0 x4 support with Ryzen 9000/7000); 4 x SATA 6Gb/s ports; Supports RAID 0/1/5/10 (varies by CPU) |
| Networking | Realtek 2.5Gb Ethernet; ASUS LANGuard; Wi-Fi 6E (2x2); Bluetooth® v5.3 |
| USB (Rear) | 1 x USB 10Gbps (Type-C®), 3 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio; Audio Shielding; Premium capacitors; Dedicated PCB layers |

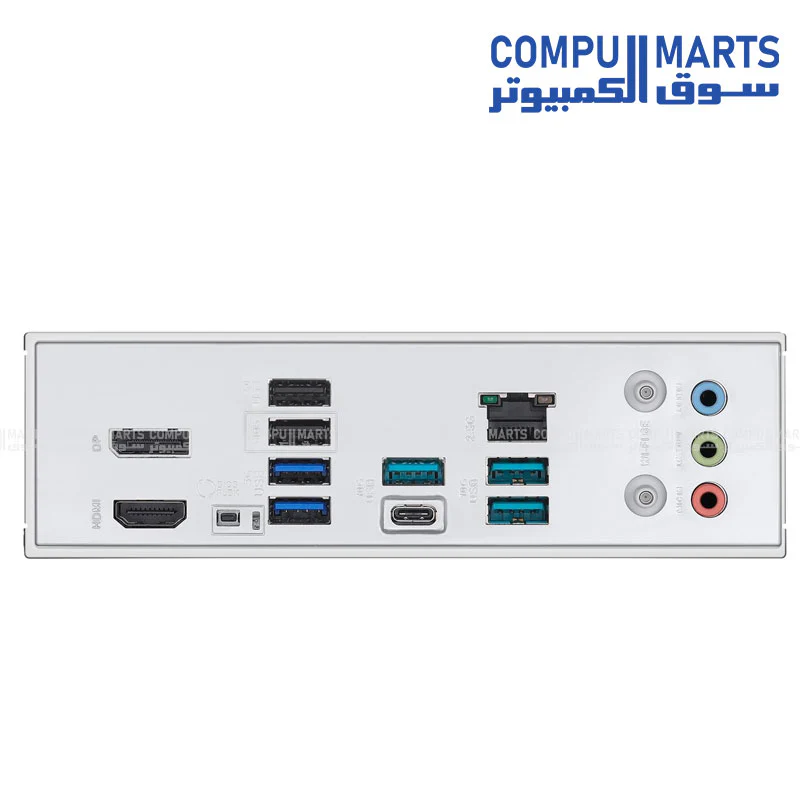

| Back Panel I/O | DisplayPort, HDMI™, BIOS FlashBack™ button, Wi-Fi Module, Realtek 2.5Gb Ethernet, 3 x Audio jacks, 8 x USB ports |
| Internal Connectors | 1 x AIO Pump header, 4 x Chassis Fan headers, 3 x Addressable Gen 2 RGB headers, 1 x Thunderbolt™ (USB4®) header, 1 x COM Port header |
| Special Features | ASUS 5X PROTECTION III; Q-Design (Q-Antenna, Q-LED Core, Q-Slot); BIOS FlashBack™; Aura Sync; Pre-mounted I/O shield |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | B650E MAX GAMING WIFI W (White PCB) |
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 256GB, DDR5 8000+(OC); ECC and Non-ECC Un-buffered; Supports AMD EXPO™ & ASUS Enhanced Memory Profile (AEMP) |
| Graphics | 1 x DisplayPort (Max. 8K@30Hz); 1 x HDMI™ port (Max. 4K@60Hz) |
| Expansion Slots | Ryzen 9000/7000: 1 x PCIe 5.0 x16; Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4 mode); Chipset: 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x16 (x1 mode) |
| Storage | 3 x M.2 slots (M.2_1 PCIe 5.0 x4 support with Ryzen 9000/7000); 4 x SATA 6Gb/s ports; Supports RAID 0/1/5/10 (varies by CPU) |
| Networking | Realtek 2.5Gb Ethernet; ASUS LANGuard; Wi-Fi 6E (2x2); Bluetooth® v5.3 |
| USB (Rear) | 1 x USB 10Gbps (Type-C®), 3 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio; Audio Shielding; Premium capacitors; Dedicated PCB layers |
| Back Panel I/O | DisplayPort, HDMI™, BIOS FlashBack™ button, Wi-Fi Module, Realtek 2.5Gb Ethernet, 3 x Audio jacks, 8 x USB ports |
| Internal Connectors | 1 x AIO Pump header, 4 x Chassis Fan headers, 3 x Addressable Gen 2 RGB headers, 1 x Thunderbolt™ (USB4®) header, 1 x COM Port header |
| Special Features | ASUS 5X PROTECTION III; Q-Design (Q-Antenna, Q-LED Core, Q-Slot); BIOS FlashBack™; Aura Sync; Pre-mounted I/O shield |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
