The Story

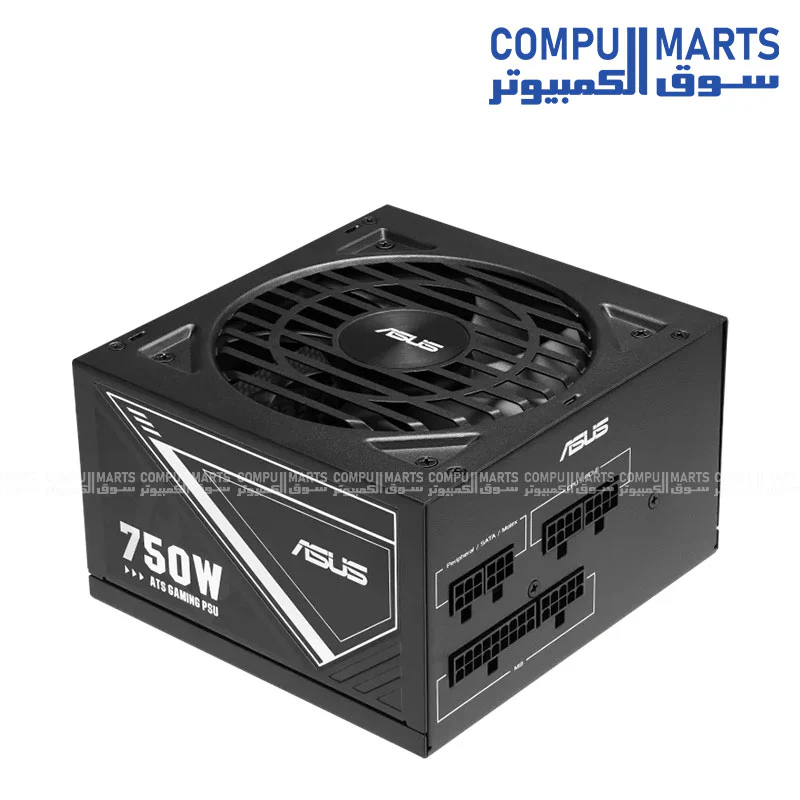

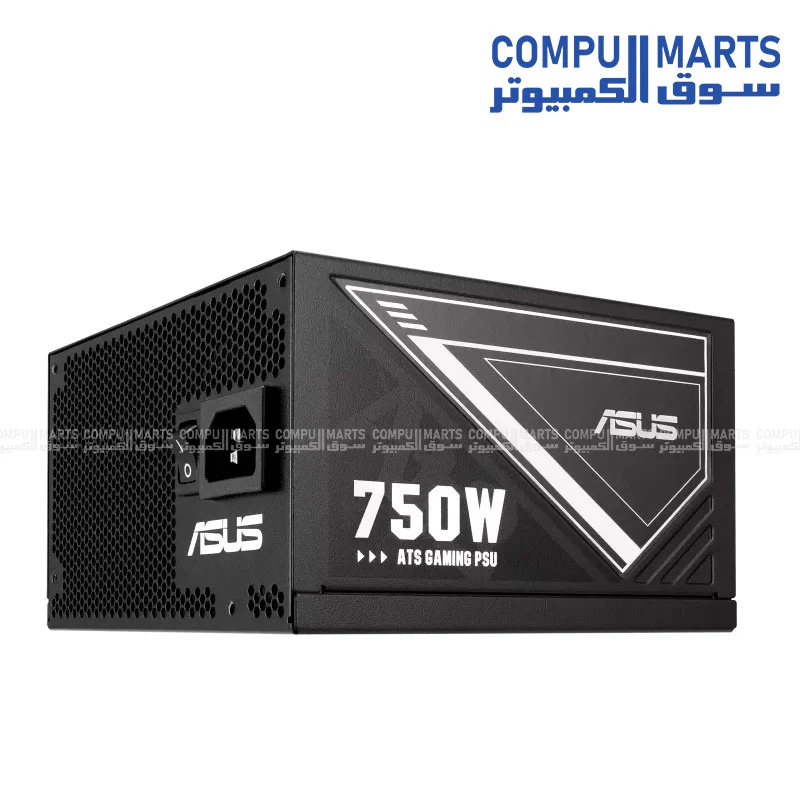

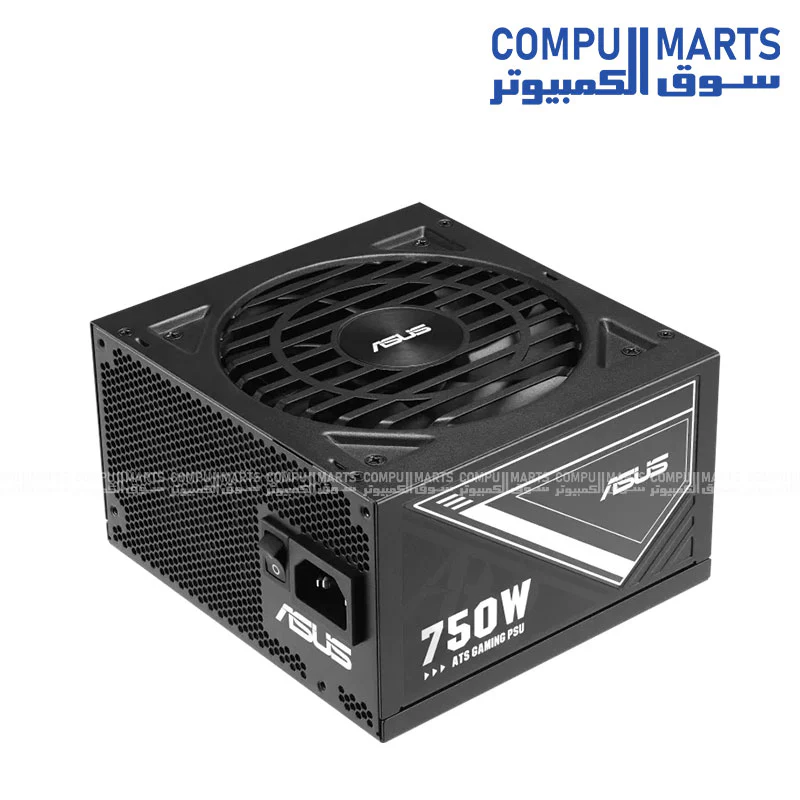

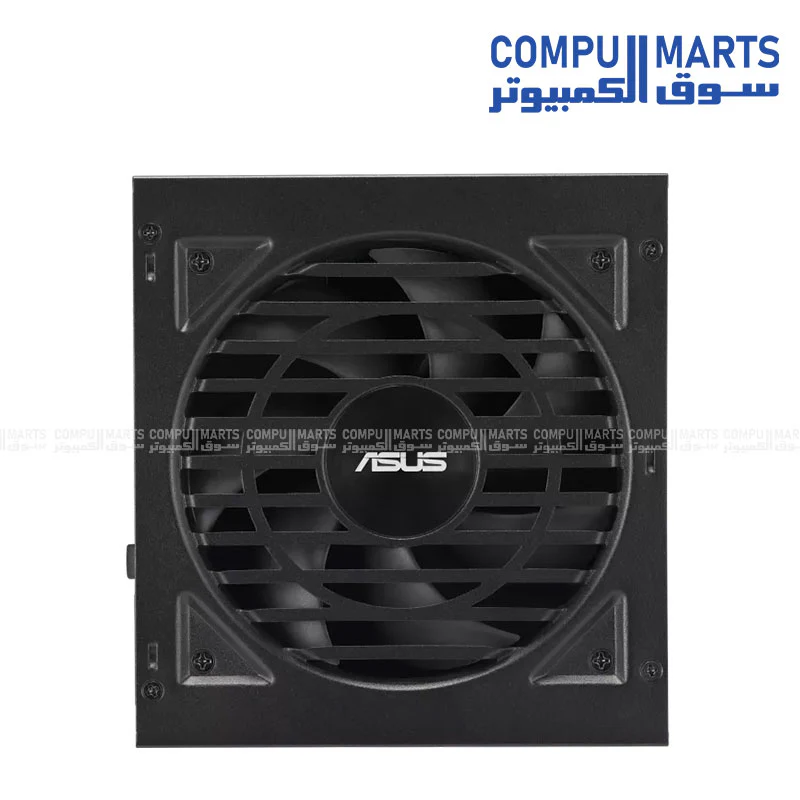

ASUS 750W ATS Gold Power Supply – ATX 12V, 80 Plus Gold Certified, Dual Ball Fan Bearings, Reliable PSU
Model
ASUS-ATS-750G
Intel Form Factor
ATX12V
PFC Type
Active PFC
Dimensions
140 x 150 x 86 mm
Efficiency
80Plus Gold
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
110-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 62.5A 0.3A 3A
Combined Load
100W 100W 750W 3.6W 15W
Total Output
750W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 2
SATA x 3
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (550mm)
CPU 1-to-2 Cable x 1 (650+100mm)
PCI-E 1-to-2 Cable x 1 (675+100mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 3 (400+120+120mm)
Chassis Screws Package x 1
Quick Start Guide x 1
Weight
1.529 kg (single PSU)
0dB Technology
No
0dB Fan Button
No, this product is without 0dB technology.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
ASUS 750W ATS Gold Power Supply – ATX 12V, 80 Plus Gold Certified, Dual Ball Fan Bearings, Reliable PSU
Model
ASUS-ATS-750G
Intel Form Factor
ATX12V
PFC Type
Active PFC
Dimensions
140 x 150 x 86 mm
Efficiency
80Plus Gold
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
110-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 62.5A 0.3A 3A
Combined Load
100W 100W 750W 3.6W 15W
Total Output
750W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 2
SATA x 3
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (550mm)
CPU 1-to-2 Cable x 1 (650+100mm)
PCI-E 1-to-2 Cable x 1 (675+100mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 3 (400+120+120mm)
Chassis Screws Package x 1
Quick Start Guide x 1
Weight
1.529 kg (single PSU)
0dB Technology
No
0dB Fan Button
No, this product is without 0dB technology.
