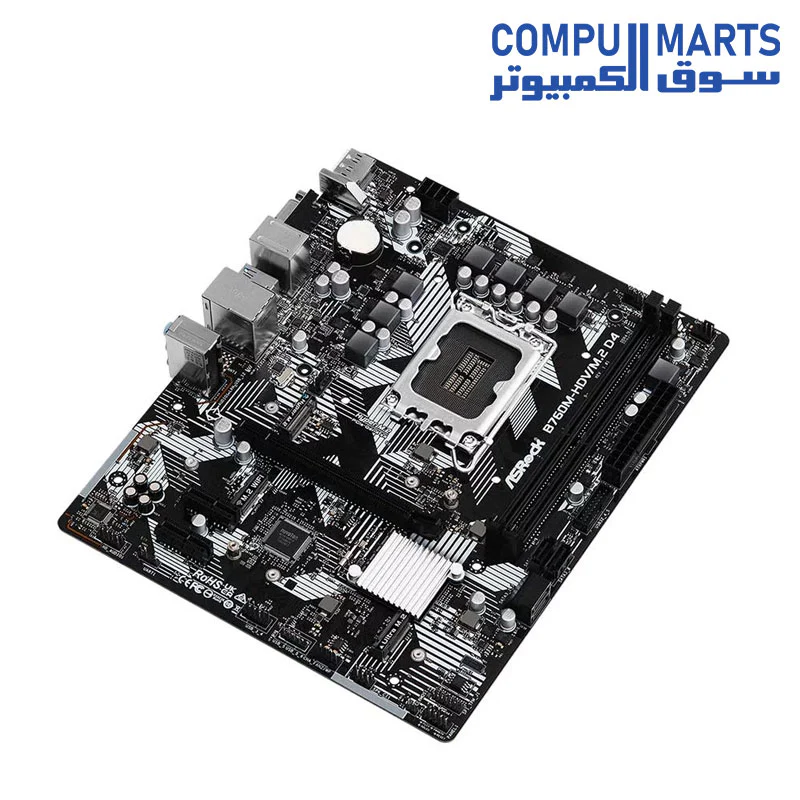

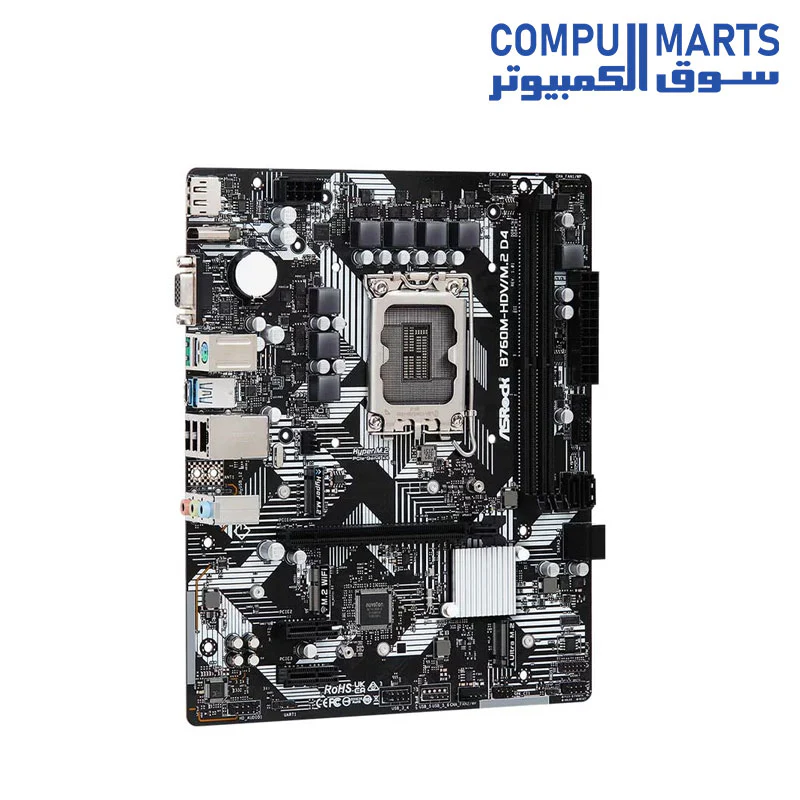

Asrock B760M-Hdv/M.2 D4 DDR4 Motherboard

Asrock B760M-Hdv/M.2 D4 DDR4 Motherboard



• upports 13^th Gen & 12^th Gen and next gen Intel Core Processors (LGA1700)

• 5+1+1 Power Phase

• Supports DDR4 5333MHz (OC)

• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi

• Graphics Output Options: HDMI, DisplayPort, D-Sub

• Realtek ALC887/897 7.1 CH HD Audio Codec

• 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),

  1 Ultra M.2 (PCIe Gen3x4 & SATA)

• 1 USB 3.2 Gen1 Type-C (Rear),

  5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),

  5 USB 2.0 (2 Rear, 3 Front)

• Realtek 1G LAN

• Supports ASRock Auto Driver Installer

• Unique Feature

  Rock-Solid Durability
  – 5+1+1 Power Phase
  EZ Update
  – ASRock Auto Driver Installer

• CPU

  – Supports 13^th Gen & 12^th Gen and next gen Intel Core Processors (LGA1700)
  – Supports Intel Hybrid Technology
  – Supports Intel Turbo Boost Max 3.0 Technology
  – Supports Intel Thermal Velocity Boost (TVB)
  – Supports Intel Adaptive Boost Technology (ABT)

• Chipset

  – Intel B760

• Memory

  – Dual Channel DDR4 Memory Technology
  – 2 x DDR4 DIMM Slots
  – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
  – Supports ECC UDIMM memory modules (operate in non-ECC mode)
  – Max. capacity of system memory: 64GB
  – Supports Intel Extreme Memory Profile (XMP) 2.0

  1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
  1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.

• BIOS

  – 128Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  – Intel Xe Graphics Architecture (Gen 12)
  – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  – 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz

  Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• Audio

  – 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

• LAN

  – Gigabit LAN 10/100/1000 Mb/s
  – Realtek 8111H

• Slots

  CPU:
  – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
  Chipset:
  – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
  – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

  Supports NVMe SSD as boot disks

• Storage

  CPU:
  – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  Chipset:
  – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
  – 4 x SATA3 6.0 Gb/s Connectors

  Supports Intel Volume Management Device (VMD)
  Supports NVMe SSD as boot disks

  If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

• RAID

  – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• USB

  – 1 x USB 3.2 Gen1 Type-C (Rear)
  – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  – 5 x USB 2.0 (2 Rear, 3 Front)
  * All USB ports support ESD Protection

• Connector

  – 1 x SPI TPM Header
  – 1 x Chassis Intrusion and Speaker Header
  – 1 x CPU Fan Connector (4-pin)
  – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
  – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

  CPU_FAN1 supports the fan power up to 1A (12W).

  CPU_FAN2/WP supports the fan power up to 2A (24W).
  CHA_FAN1~2/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

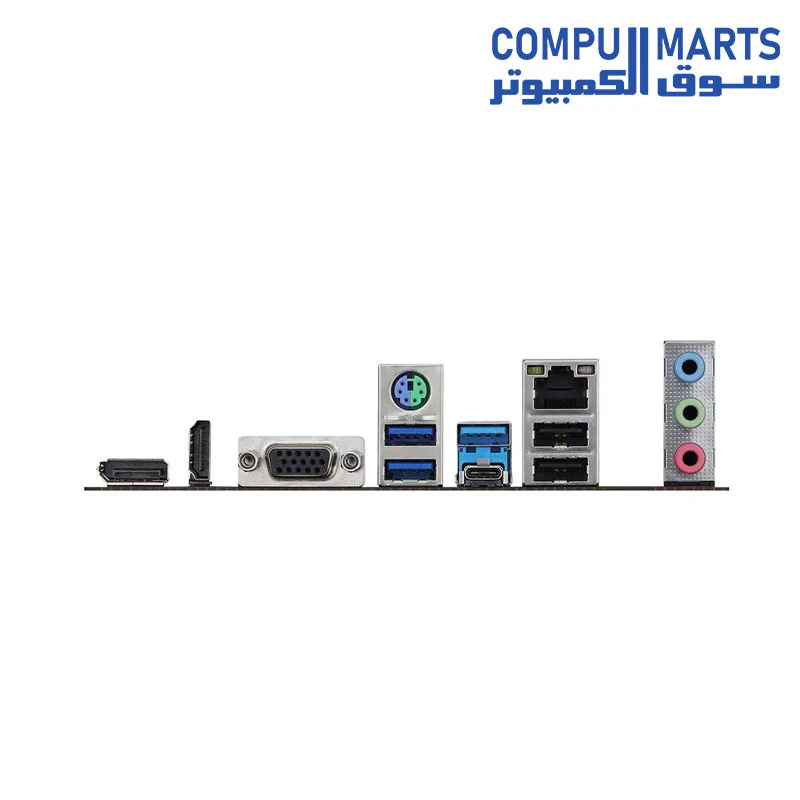

• Rear Panel I/O

  – 2 x Antenna Mounting Points
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x D-Sub Port
  – 1 x HDMI Port
  – 1 x DisplayPort 1.4
  – 1 x USB 3.2 Gen1 Type-C Port
  – 3 x USB 3.2 Gen1 Type-A Ports
  – 2 x USB 2.0 Ports
  – 1 x RJ-45 LAN Port
  – HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

  Software
  – ASRock Motherboard Utility (A-Tuning)
  – ASRock XFast LAN
  UEFI
  – ASRock EZ Mode
  – ASRock Full HD UEFI
  – ASRock My Favorites in UEFI
  – ASRock Auto Driver Installer
  – ASRock Instant Flash
  – ASRock Easy RAID Installer

• Accessories

  – 1 x User Manual
  – 1 x I/O Shield
  – 2 x SATA Data Cables
  – 3 x Screws for M.2 Sockets

• Form Factor

  – Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

• OS

  – Microsoft Windows 10 64-bit / 11 64-bit

• Certifications

  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
