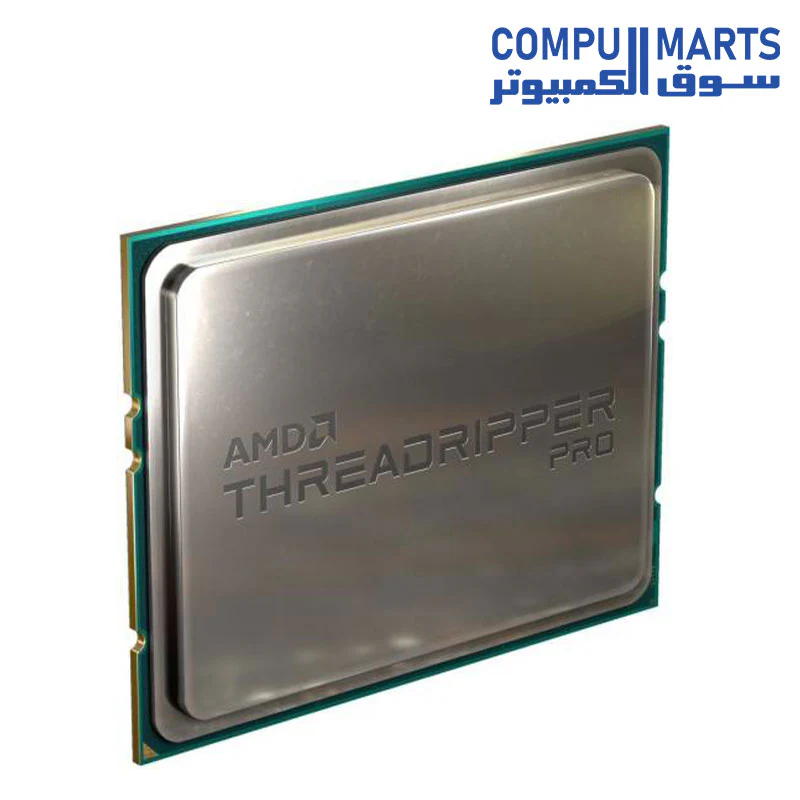

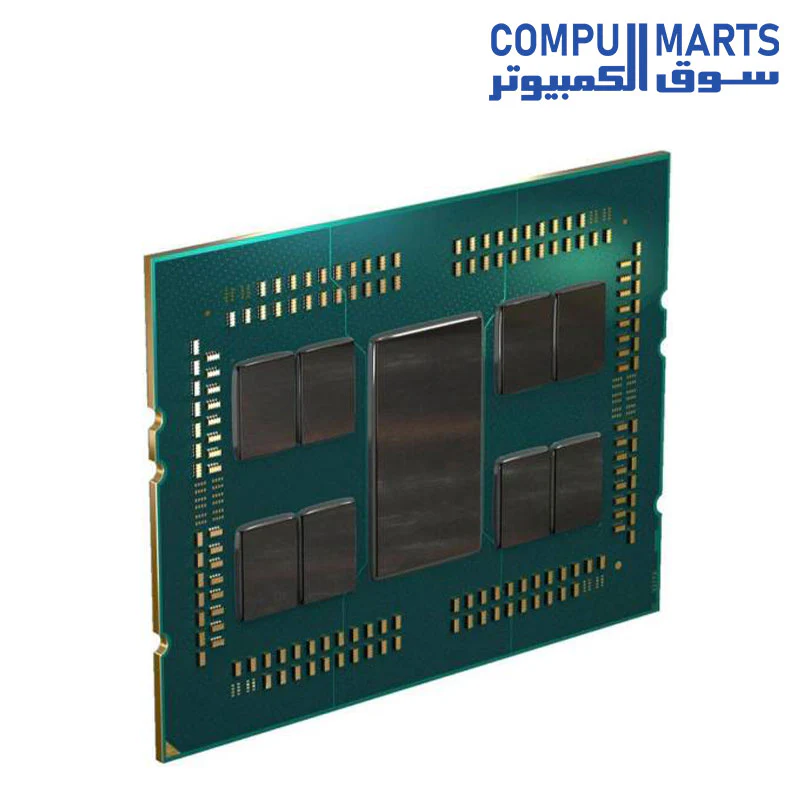

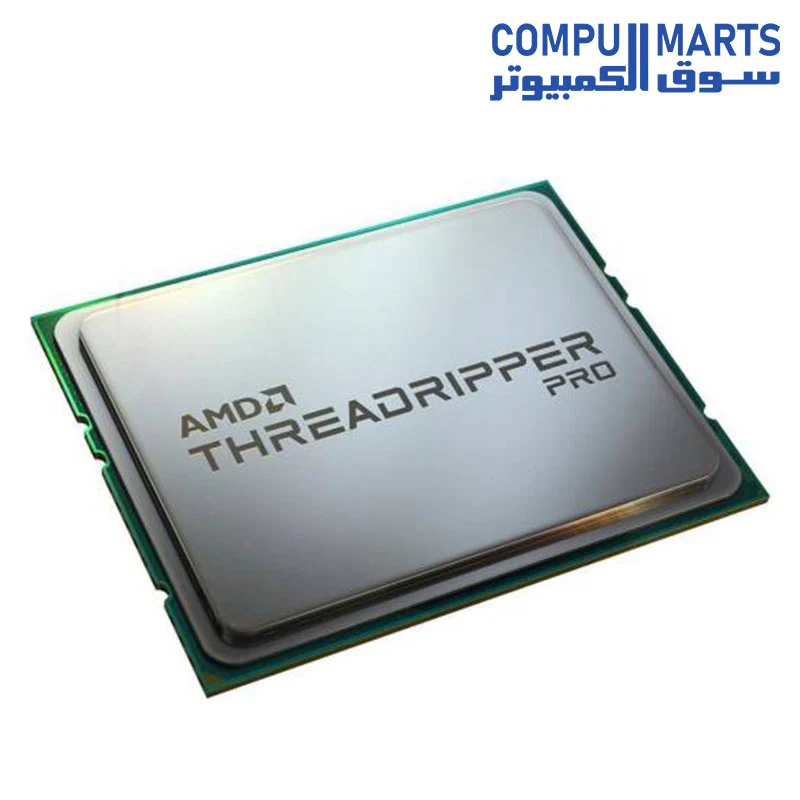

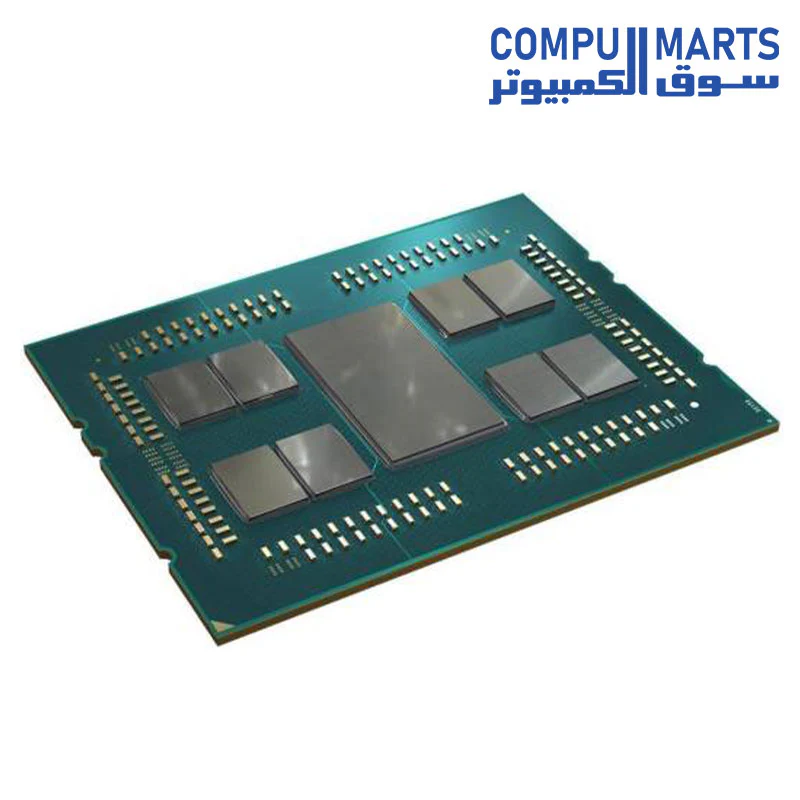

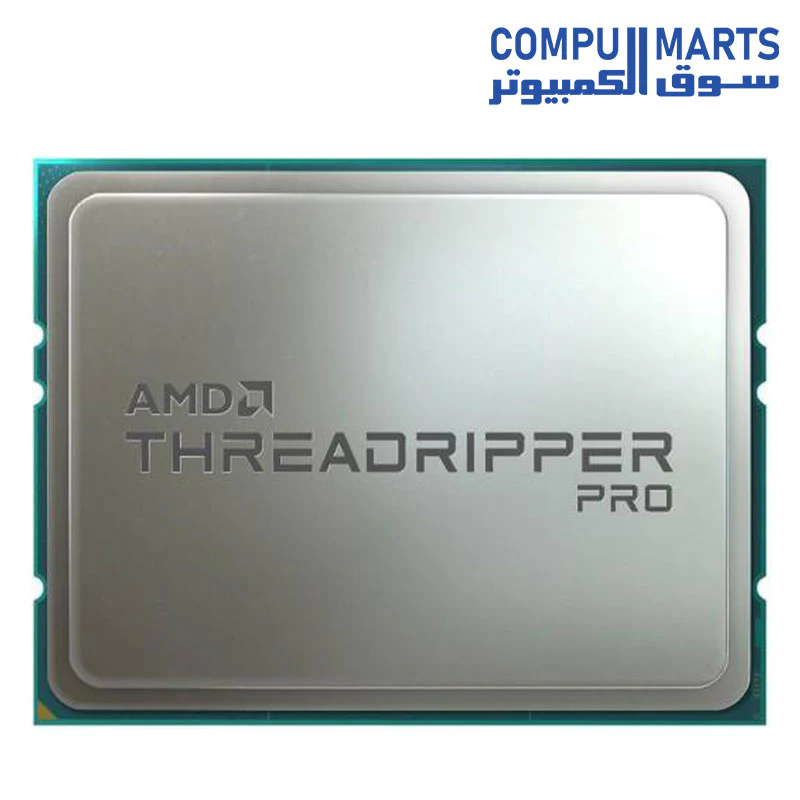

AMD Ryzen Threadripper PRO 3975WX sWRX8 Processor — 32 Cores & 64 Threads, 3.5GHz Clock Speed, 4.2GHz Max Turbo Freq, 128MB L3 Cache, 8-CH ECC DDR4-3200 Memory, AMD Zen Core Arch

AMD Ryzen Threadripper PRO 3975WX sWRX8 Processor — 32 Cores & 64 Threads, 3.5GHz Clock Speed, 4.2GHz Max Turbo Freq, 128MB L3 Cache, 8-CH ECC DDR4-3200 Memory, AMD Zen Core Arch



CPU Performance

• Number of CPU Cores: 32

• Number of Threads: 64

• Max Boost Clock: Up to 4.2 GHz

• Base Clock: 3.5 GHz

• L1 Cache: 2048 KB

• L2 Cache: 16 MB

• L3 Cache: 128 MB

• Default TDP: 280W

• Processor Technology for CPU Cores: TSMC 7nm FinFET

• Unlocked for Overclocking: No

Socket and Connectivity

• CPU Socket: sWRX8

• PCI Express Version: PCIe 4.0

Memory Support

• System Memory Type: DDR4

• Memory Channels: 8

• System Memory Specification: Up to 3200 MT/s

Graphics Capabilities

• Graphics Model: Discrete Graphics Card Required

Temperature and Power

• Max Operating Temperature (Tjmax): 90°C

Launch Information

• Launch Date: 7/14/2020

• OS Support: Windows 10 - 64-Bit Edition

Product IDs

• Product ID Tray: 100-000000086

Key Features

• Supported Technologies: AMD Zen Core Architecture
