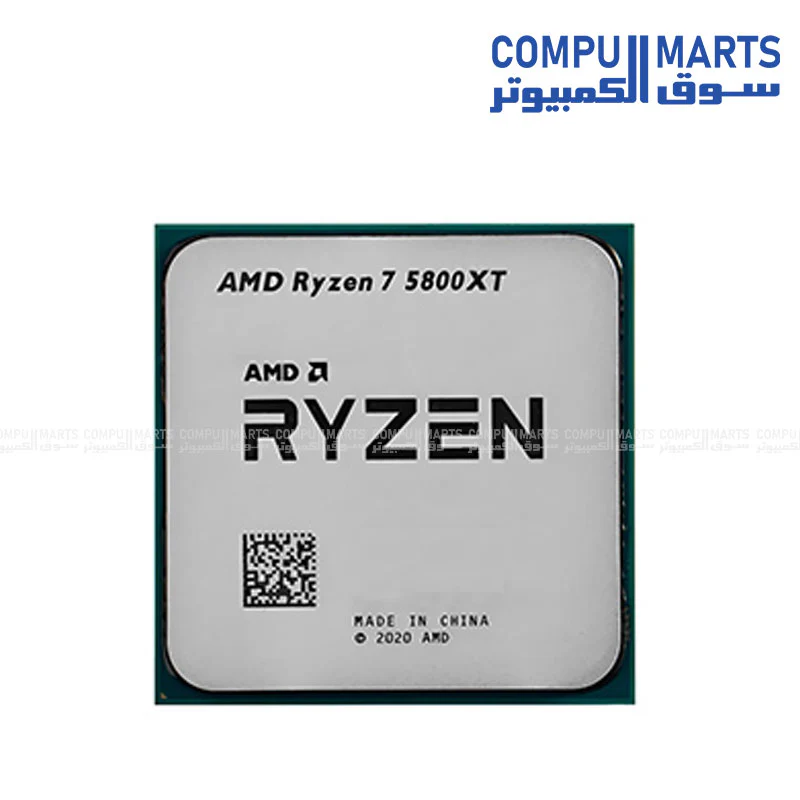

AMD Ryzen 7 5800XT – 8‑Core / 16‑Thread Zen 3 Desktop Processor – Socket AM4 – 3.8 GHz Base, up to 4.8 GHz Boost—
$0.02
The Story
| Category | Specification Details |
|---|---|
| Product | AMD Ryzen 7 5800XT – 8‑Core / 16‑Thread Zen 3 Desktop Processor |
| Architecture | Zen 3 (Vermeer) |
| Cores / Threads | 8 Cores / 16 Threads (Multithreading SMT: Yes) |
| Clock Speed | Base: 3.8GHz | Max Boost: Up to 4.8 GHz |
| Cache | L1: 512 KB | L2: 4MB | L3: 32MB |
| TDP / Temperature | Default TDP: 105W | Max Operating Temp (Tjmax): 90°C |
| Manufacturing Tech | CPU Cores: TSMC 7nm FinFET | I/O Die: 12nm (Globalfoundries) |
| Socket & Chipsets | AM4 (Supporting: X570, B550, A520, X470, B450) |
| Memory Support | DDR4 (UDIMM) up to 128GB (2 Channels) |
| Memory Speed | 2x1R: DDR4-3200 | 2x2R: DDR4-3200 | 4x1R: DDR4-2933 | 4x2R: DDR4-2667 |
| PCI Express | PCIe 4.0 (Native Lanes: 24 Total / 20 Usable) |
| Graphics | Discrete Graphics Card Required (No Integrated Graphics) |

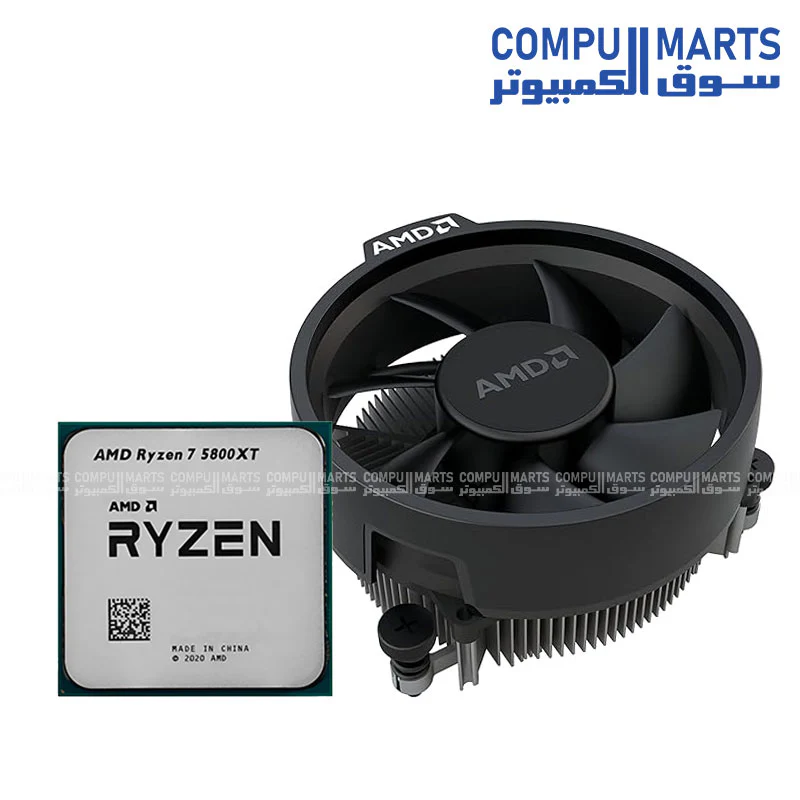

| Thermal Solution | AMD Wraith Prism included |
| Connectivity | Native USB 3.2 Gen 2 (10Gbps): 4 | Native SATA Ports: 2 |
| Supported Technologies | AMD StoreMI, AMD Ryzen Master Utility, AMD Ryzen VR-Ready Premium, Precision Boost 2 |
| Launch Date | 07/31/2024 |
| Product IDs | Tray: 100-000001582 | Boxed: 100-100001582WOF / WOZ |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Product | AMD Ryzen 7 5800XT – 8‑Core / 16‑Thread Zen 3 Desktop Processor |
| Architecture | Zen 3 (Vermeer) |
| Cores / Threads | 8 Cores / 16 Threads (Multithreading SMT: Yes) |
| Clock Speed | Base: 3.8GHz | Max Boost: Up to 4.8 GHz |
| Cache | L1: 512 KB | L2: 4MB | L3: 32MB |
| TDP / Temperature | Default TDP: 105W | Max Operating Temp (Tjmax): 90°C |
| Manufacturing Tech | CPU Cores: TSMC 7nm FinFET | I/O Die: 12nm (Globalfoundries) |
| Socket & Chipsets | AM4 (Supporting: X570, B550, A520, X470, B450) |
| Memory Support | DDR4 (UDIMM) up to 128GB (2 Channels) |
| Memory Speed | 2x1R: DDR4-3200 | 2x2R: DDR4-3200 | 4x1R: DDR4-2933 | 4x2R: DDR4-2667 |
| PCI Express | PCIe 4.0 (Native Lanes: 24 Total / 20 Usable) |
| Graphics | Discrete Graphics Card Required (No Integrated Graphics) |
| Thermal Solution | AMD Wraith Prism included |
| Connectivity | Native USB 3.2 Gen 2 (10Gbps): 4 | Native SATA Ports: 2 |
| Supported Technologies | AMD StoreMI, AMD Ryzen Master Utility, AMD Ryzen VR-Ready Premium, Precision Boost 2 |
| Launch Date | 07/31/2024 |
| Product IDs | Tray: 100-000001582 | Boxed: 100-100001582WOF / WOZ |
