$133.60

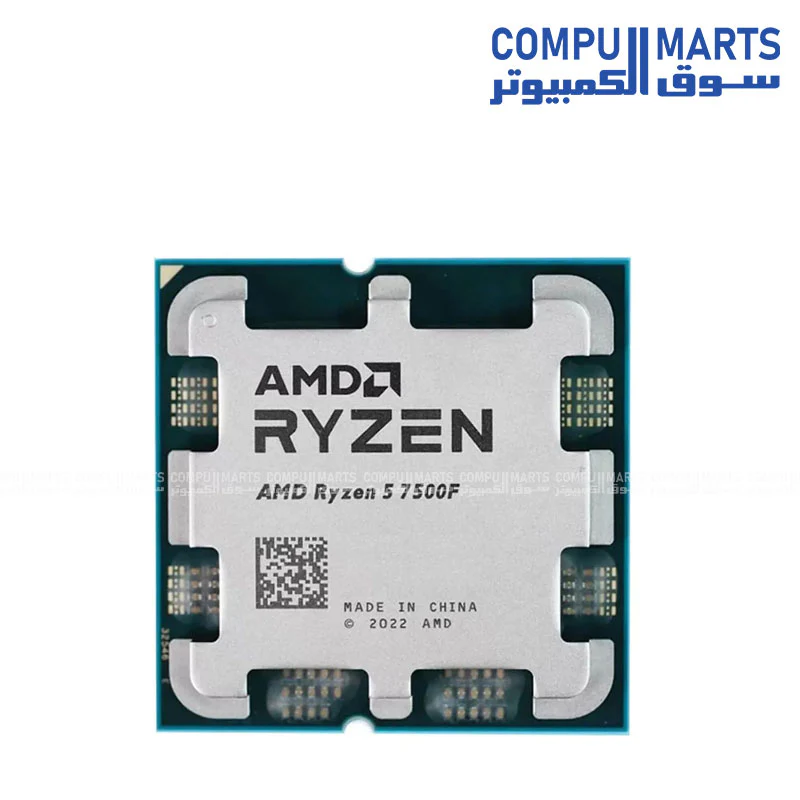

AMD Ryzen 5 7500F, 6C/12T, 3.70-5.00GHz Tray—
$133.60
The Story
| Category | Specification Details |
|---|---|
| Product | AMD Ryzen 5 7500F, 6C/12T, 3.70-5.00GHz, tray |
| Platform | Desktop (Enthusiast Desktop) |
| Architecture | "Zen 4" (Raphael AM5) |
| Cores / Threads | 6 Cores / 12 Threads (Multithreading SMT: Yes) |
| Clock Speed | Base: 3.7GHz | Max Boost: Up to 5.0GHz |
| Cache | L1: 384KB | L2: 6MB | L3: 32MB |
| TDP | Default: 65W | Max Operating Temp (Tjmax): 95°C |
| Processor Technology | CPU Cores: TSMC 5nm FinFET | I/O Die: TSMC 6nm FinFET |
| Die Information | CCD Size: 71mm² | IOD Size: 122mm² | Package Die Count: 2 |
| Overclocking Support | Unlocked: Yes | AMD EXPO: Yes | Precision Boost Overdrive: Yes | Curve Optimizer: Yes |
| Socket & Chipsets | AM5 (Supporting: A620, X670E, X670, B650E, B650) |
| Graphics Capabilities | Integrated Graphics: No (Discrete Graphics Card Required) |
| System Memory Type | DDR5 (UDIMM) |
| Max Memory Capacity | 128GB (2 Channels) |
| Max Memory Speed | 2x1R: DDR5-5200 | 2x2R: DDR5-5200 | 4x1R: DDR5-3600 | 4x2R: DDR5-3600 |
| ECC Support | Yes (Requires motherboard support) |
| PCI Express Version | PCIe 5.0 (Native PCIe Lanes: Total 28 / Usable 24) |
| Connectivity | USB Type-C: Yes | USB 3.2 Gen 2 (10Gbps): 4 Ports | USB 2.0 (480Mbps): 1 Port |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| Thermal Solution | AMD Wraith Stealth |
| Supported Technologies | AMD EXPO Technology, AMD Ryzen Technologies, Precision Boost 2, Ryzen Master Support |
| OS Support | Windows 11/10 (64-Bit), RHEL x86, Ubuntu x86 |
| Product IDs | Tray: 100-000000597 | MPK: 100-100000597MPK |
