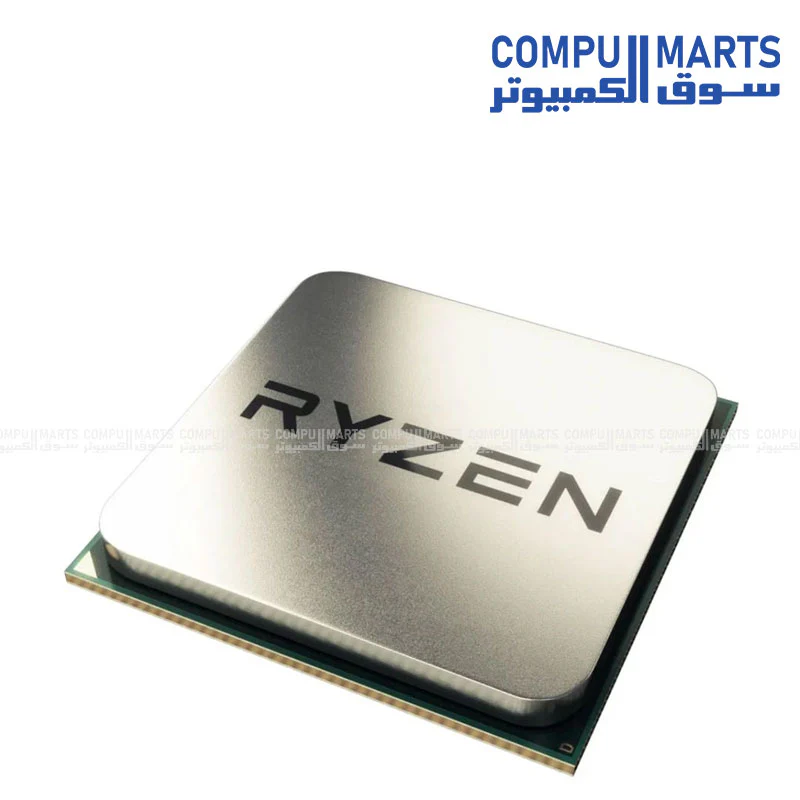

AMD Ryzen 5 7400 MPK | 6-Core 12-Thread | 4.3GHz Boost | AM5 Socket | Zen 4—
$127.23
The Story
| Category | Specification Details |
|---|---|
| Name | AMD Ryzen 5 7400 |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Processor Architecture | Zen 4 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 4.3 GHz |
| Base Clock | 3.3 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 6 MB |
| L3 Cache | 16 MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm² |
| I/O Die (IOD) Size | 122mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |

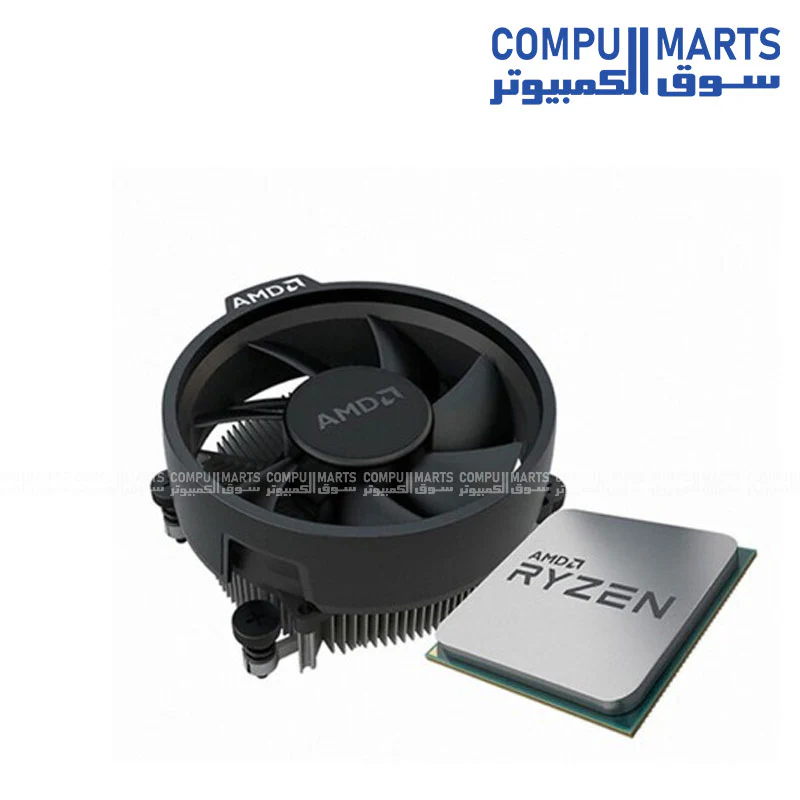

| Thermal Solution (PIB/MPK) | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| Launch Date | 9/16/25 |
| OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Native USB Ports | 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 (480Mbps) |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28 / 24 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 128 GB |
| Max Memory Speed | 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C® DP Alternate Mode | Yes |
| Product ID Tray | 100-000001900 |
| Supported Technologies | AMD EXPO™ Technology, AMD Ryzen™ Technologies |
